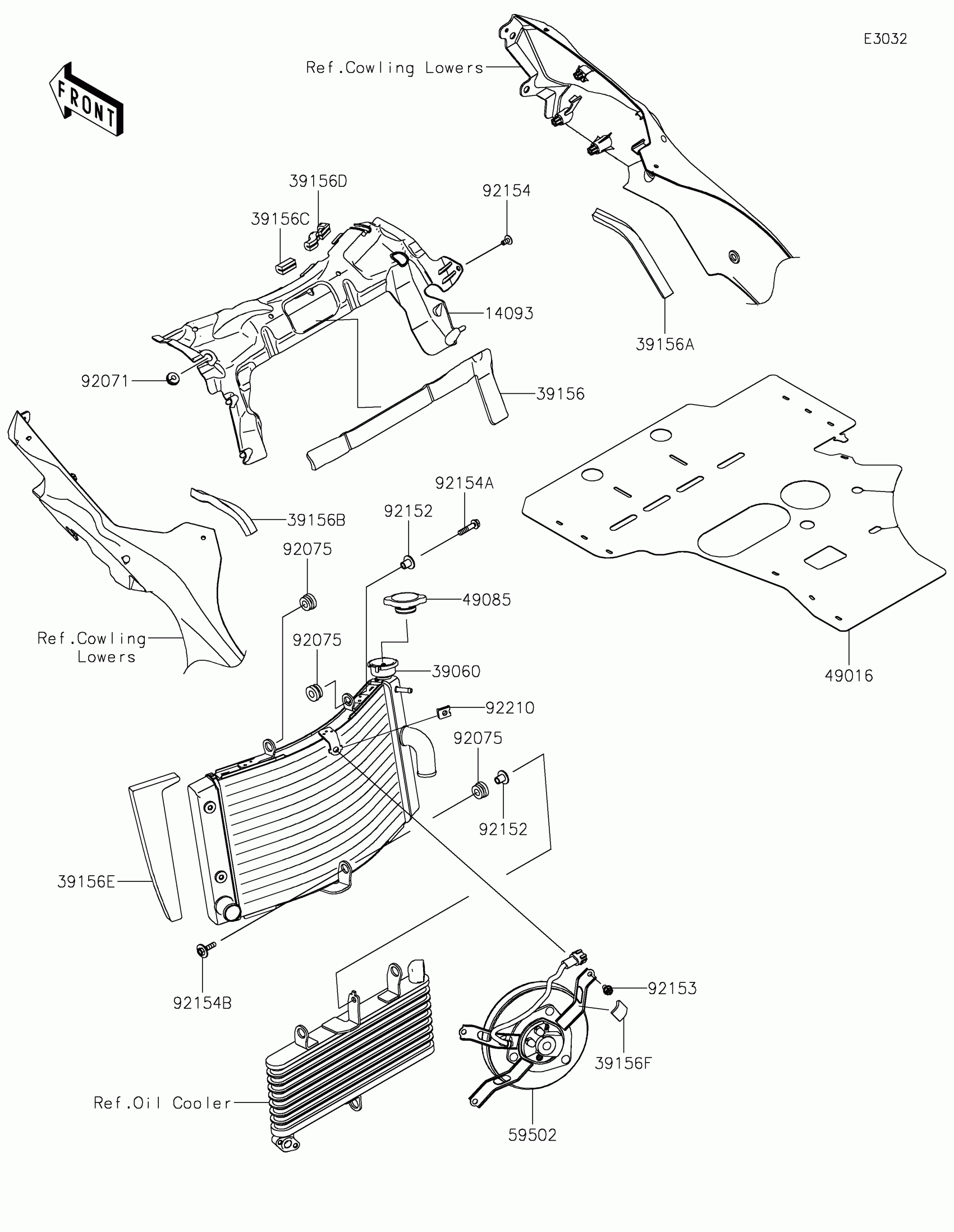

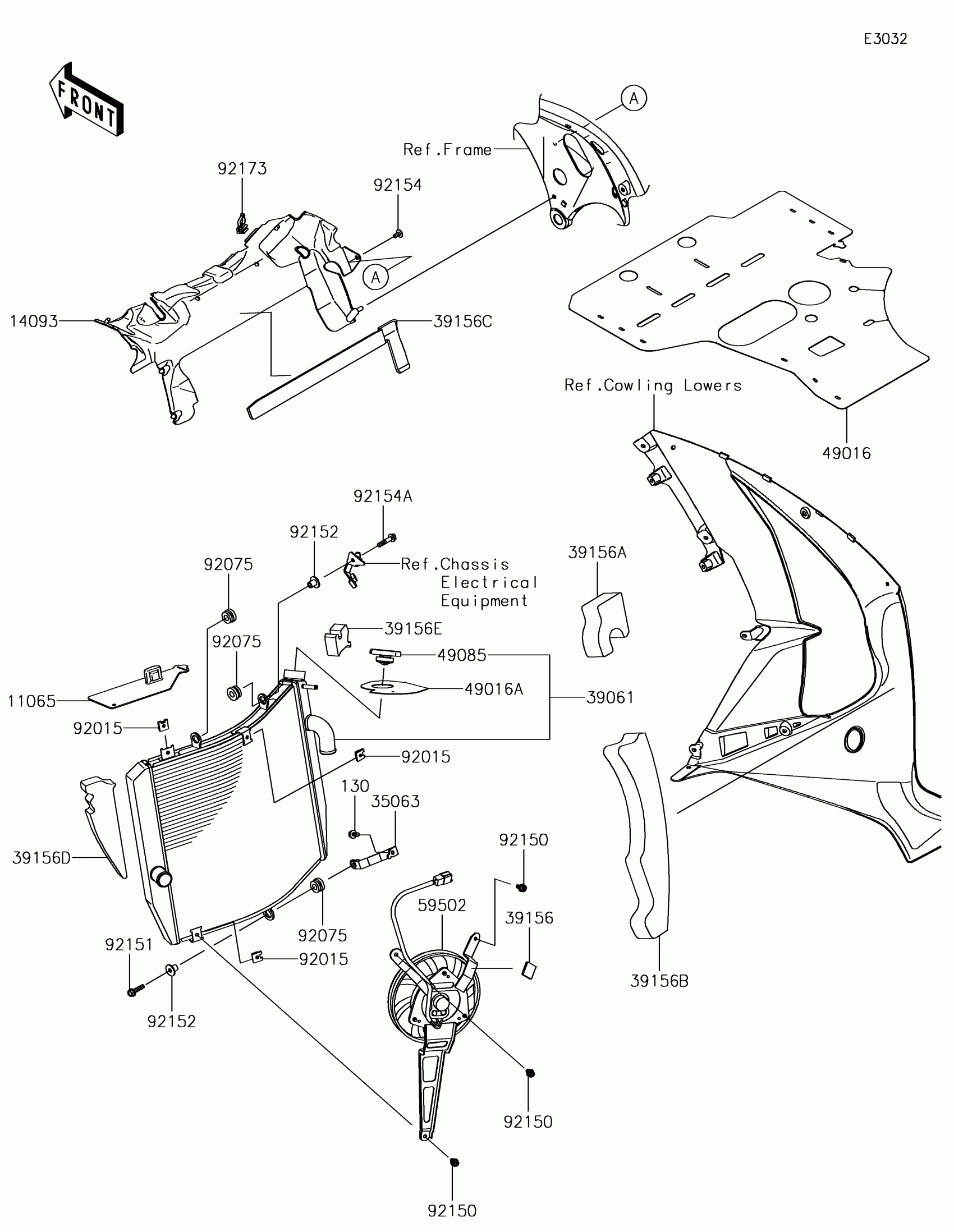

Kawasaki NINJA® ZX™-10RR Radiator Diagram

Description

Price

11065

CAP

11065-0737

$19.81

130

BOLT-FLANGED,6X14

130BA0614

$0.97

14093

COVER

14093-0427

$59.93

35063

STAY

35063-0701

$13.81

39061

RADIATOR-ASSY

39061-0566

$883.21

39156

PAD

39156-0285

$1.20

39156A

PAD

39156-0710

$4.47

39156B

PAD

39156-0724

$37.61

39156C

PAD

39156-0730

$5.97

39156D

PAD

39156-1941

$25.85

39156E

PAD

39156-1976

$11.17

49016

COVER-SEAL,ENGINE RR

49016-0633

$57.16

49016A

COVER-SEAL,RH

49016-0637

$10.75

49085

CAP-ASSY-PRESSURE

49085-1078

$45.97

59502

FAN-ASSY

59502-0606

$474.60

92015

NUT

92015-1487

$3.64

92075

DAMPER,RUBBER

92075-1123

$3.81

92150

BOLT,6X12

92150-1186

$2.56

92151

BOLT,FLANGED,6X25

92151-1225

$1.76

92152

COLLAR

92152-1074

$4.67

92154

BOLT,6X12

92154-1892

$1.47

92154A

BOLT,FLANGED,15X30

92154-2119

$2.05

92173

CLAMP

92173-1578

$7.90
