2023 Kawasaki Ninja® ZX™-10RR Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2023 Kawasaki Ninja® ZX™-10RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

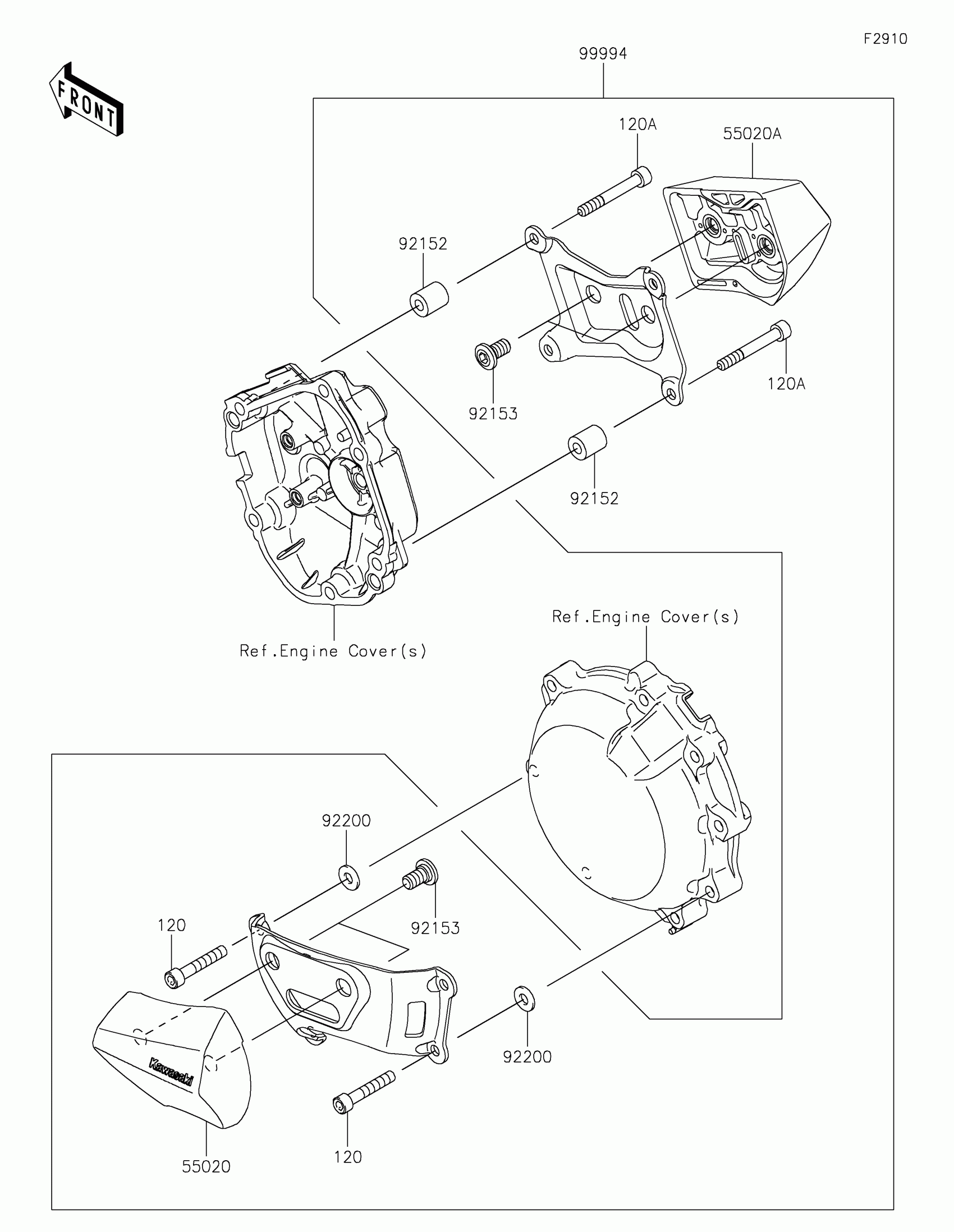

2023 Kawasaki Ninja® ZX™-10RR Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

55020

GUARD,ENGINE,LH

55020-0595

1
Out of stock

55020A

GUARD,ENGINE,RH

55020-0596

1
Out of stock

92152

COLLAR,6.5X14X16

92152-0940

1
Out of stock

92153

BOLT,SOCKET,8X15

92153-1810

1
Out of stock

92200

WASHER,6.5X14.5X1.5

92200-3775

1
Out of stock

99994

KIT-ACCESSORY,SLIDER

99994-0210

1
Out of stock

120

BOLT-SOCKET,6X35

120CC0635

1
Out of stock

120A

BOLT-SOCKET,6X45

120CC0645

1
Out of stock
