Brake Piping

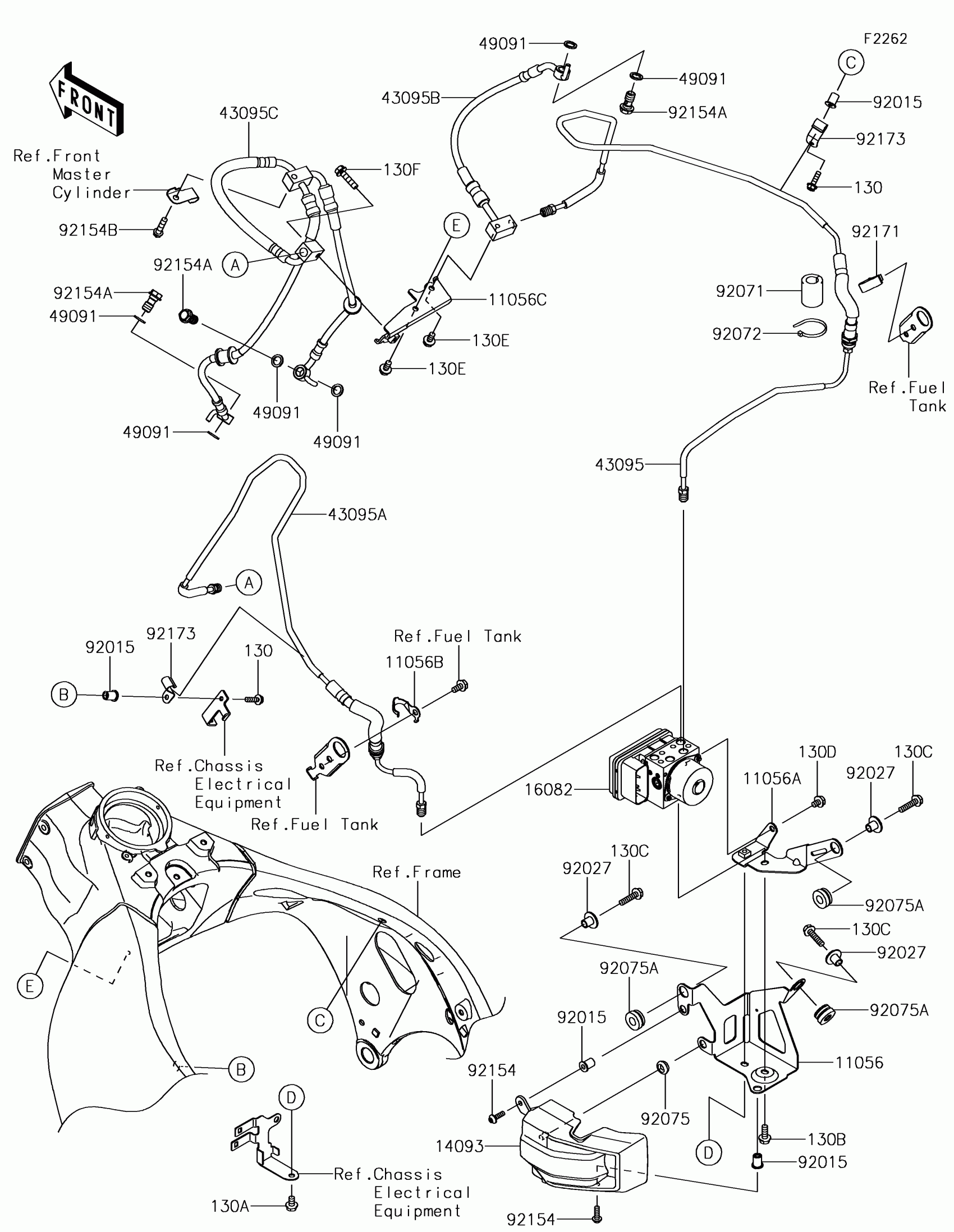

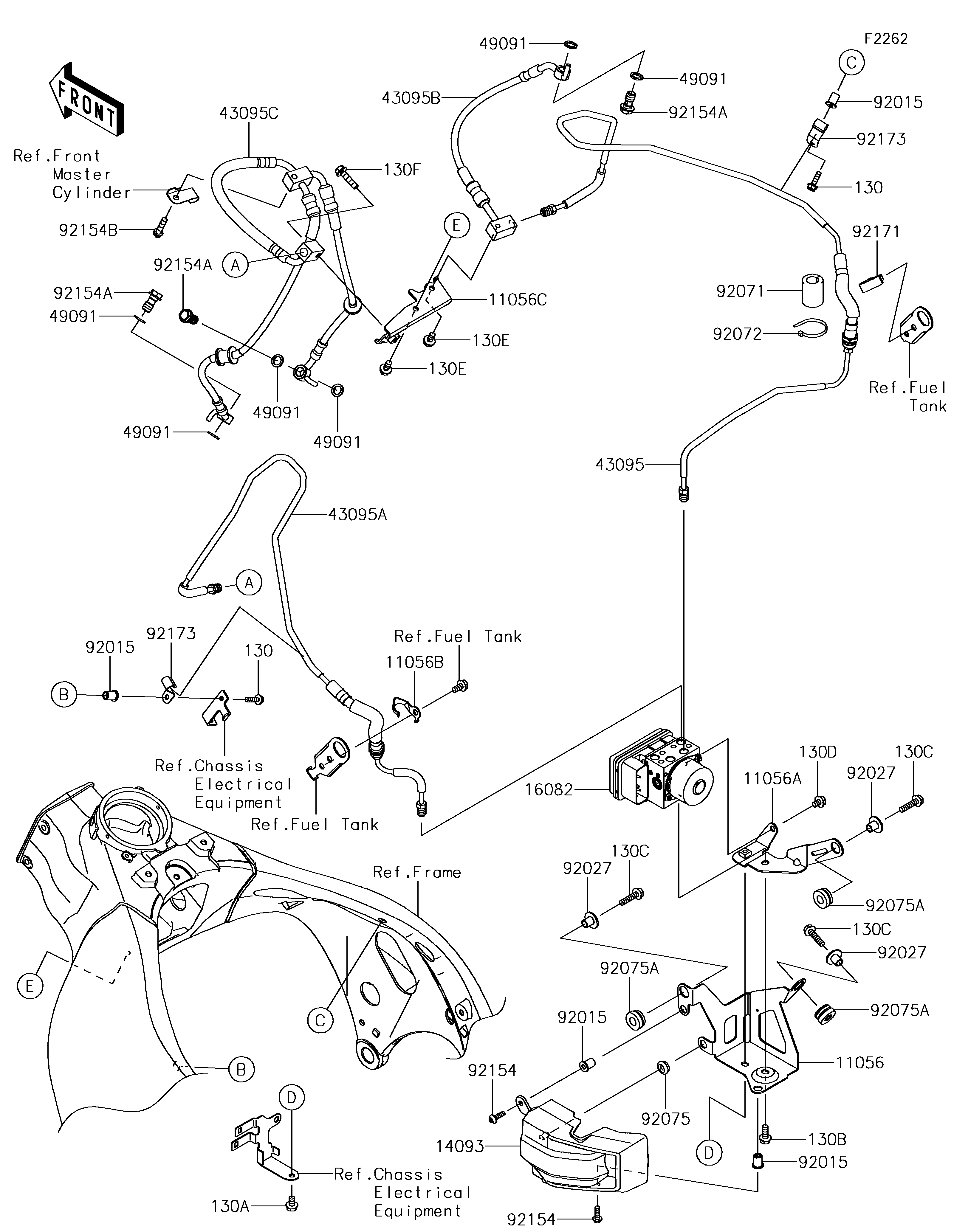

Kawasaki Ninja® ZX™-10R Brake Piping Diagram
#
11056
BRACKET,ABS UNIT,MAIN
11056-0325
Unavailable
11056A
BRACKET,ABS UNIT,SUB
11056-0326
Unavailable
11056B
BRACKET
11056-0327
Unavailable
11056C
BRACKET,FRM HEAD
11056-7726
Unavailable
130
BOLT-FLANGED,5X18
130BA0518
Unavailable
130A
BOLT-FLANGED,6X10
130BA0610
Unavailable
130B
BOLT-FLANGED,6X16
130BA0616
Unavailable
130C
BOLT-FLANGED,6X25
130BA0625
Unavailable
130D
BOLT-FLANGED,6X8
130BB0608
Unavailable
130E
BOLT-FLANGED,6X12
130CA0612
Unavailable
130F
BOLT-FLANGED,6X25
130CB0625
Unavailable
14093
COVER,ABS UNIT
14093-0434
Unavailable
16082
PUMP-ASSY-OIL,ABS,BOSCH,9.1MP
16082-0792
Unavailable
43095
HOSE-BRAKE,ABS UNIT-FRM HEAD
43095-0917
Unavailable
43095A
HOSE-BRAKE,FRM HEAD-ABS UNIT
43095-0919
Unavailable
43095B
HOSE-BRAKE,FR M/CYL.-FRM HEAD
43095-0923
Unavailable
43095C
HOSE-BRAKE,FRM HEAD-FR CAL.
43095-0924
Unavailable
49091
WASHER-SEAL,10.1X14.5X1.5
49091-0001
Unavailable
92015
NUT,WELL,5MM
92015-1757
Unavailable
92027
COLLAR,FLANGED,L=12.1,BLACK
92027-1651
Unavailable
92071
GROMMET
92071-1143
Unavailable
92072
BAND,L=148
92072-3768
Unavailable
92075
DAMPER,6X16X7
92075-1011
Unavailable
92075A
DAMPER
92075-277
Unavailable
92154
BOLT,SOCKET,5X16
92154-0209
Unavailable
92154A
BOLT,BANJO,10X19
92154-1554
Unavailable
92154B
BOLT,FLANGED-SMALL,6X25
92154-1836
Unavailable
92171
CLAMP
92171-0782
Unavailable
92173
CLAMP
92173-0786
Unavailable
