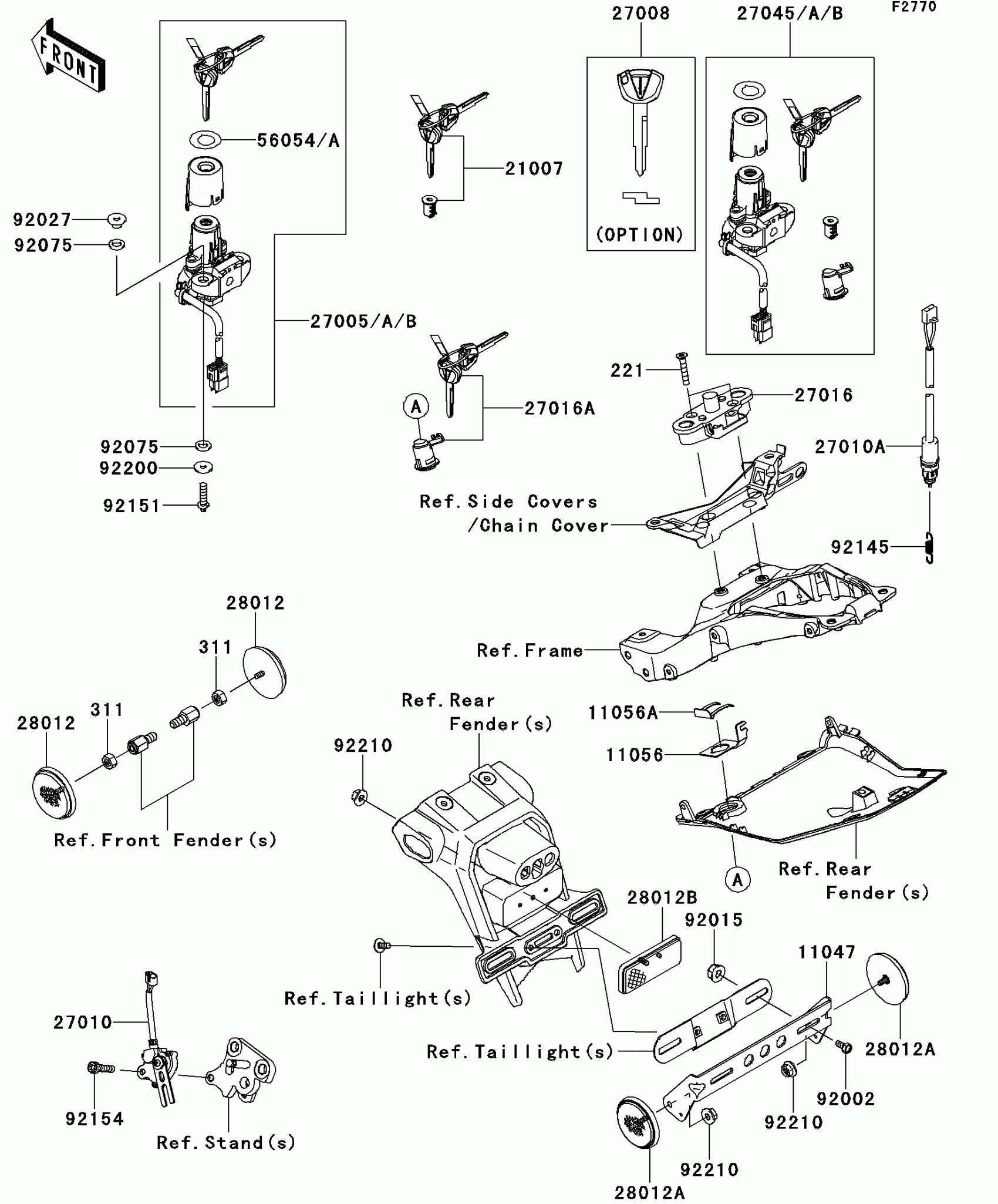

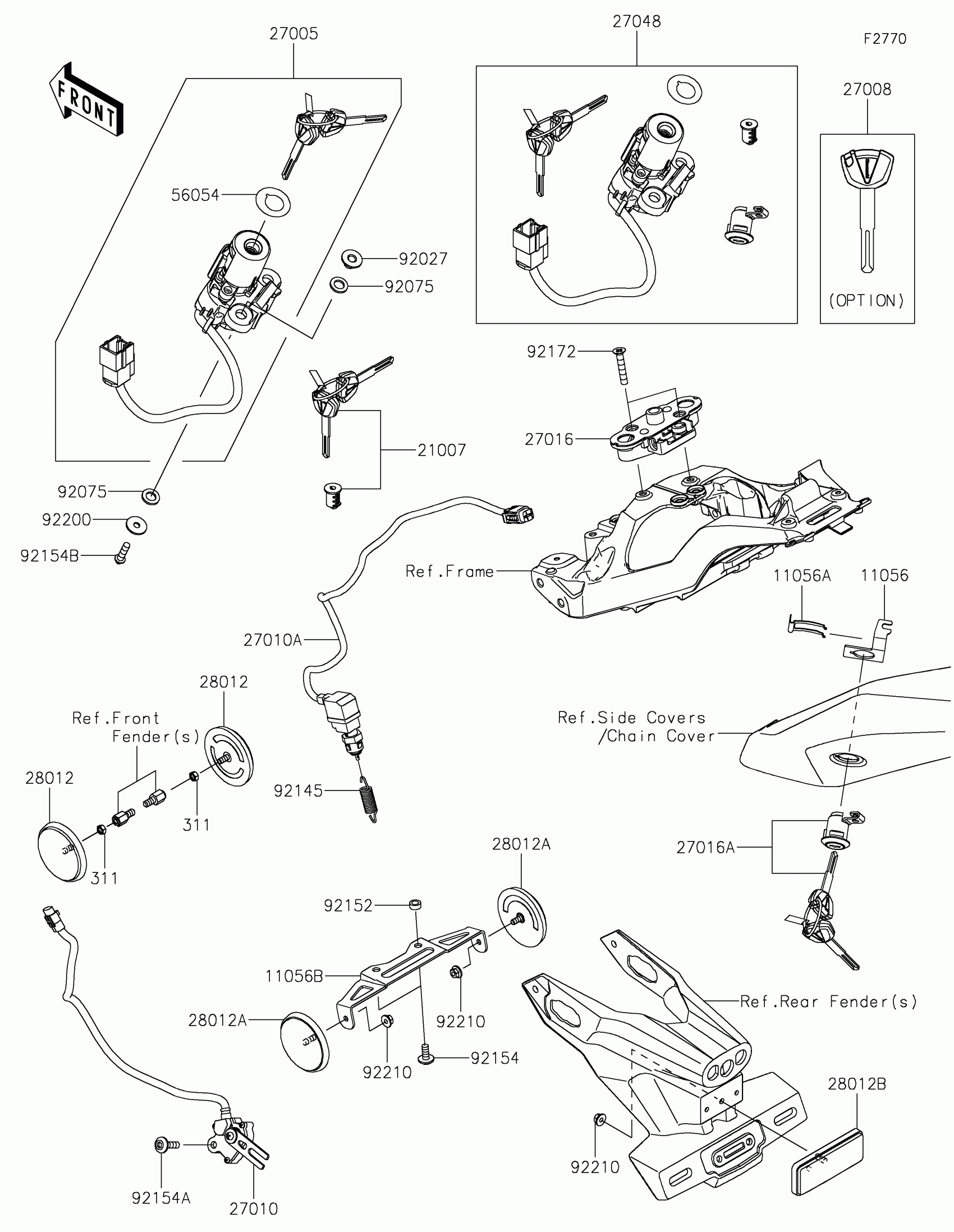

Kawasaki NINJA® ZX™-10R ABS Ignition Switch/Locks/Reflectors Diagram

Description

Price

11047

BRACKET,REFLECTOR

11047-1470

$29.64

11056

BRACKET

11056-0237

$3.36

11056A

BRACKET,CLASP

11056-0238

$4.53

21007

ROTOR,LOCK,TANK CAP

21007-5068

$90.02

27005B

SWITCH-ASSY-IGNITION

27005-0568

$178.58

27008

KEY-LOCK,BLANK

27008-0069

$19.64

27010

SWITCH,SIDE STAND

27010-1463

$120.30

27010A

SWITCH,REAR BRAKE

27010-1486

$37.27

27016

LOCK-ASSY,SEAT STRIKER

27016-0035

$65.38

27016A

LOCK-ASSY,SEAT

27016-5368

$92.15

27045B

SWITCH-ASSY

27045-5492

$560.80

28012

REFLECTOR-REFLEX,FR,SIDE

28012-0001

$19.59

28012A

REFLECTOR-REFLEX

28012-0002

$19.59

28012B

REFLECTOR-REFLEX

28012-1077

$21.76

56054A

MARK,IGNITION SWITCH

56054-0969

Unavailable

92002

BOLT,6X12

92002-1132

$1.14

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92027

COLLAR

92027-1045

$4.18

92075

DAMPER

92075-1564

$4.15

92145

SPRING,REAR BRAKE SWITCH

92145-0091

$2.80

92151

BOLT,TORX,6X22

92151-1946

$3.01

92154

BOLT,SOCKET,6X22

92154-0031

$1.54

92200

WASHER,6X20X1.6

92200-0212

$2.31

92210

NUT,FLANGED,5MM

92210-0007

$1.90

221

SCREW-CSK-CROS,6X35

221AB0635

$1.17

311

NUT-HEX,5MM

311AB0500

$0.46
