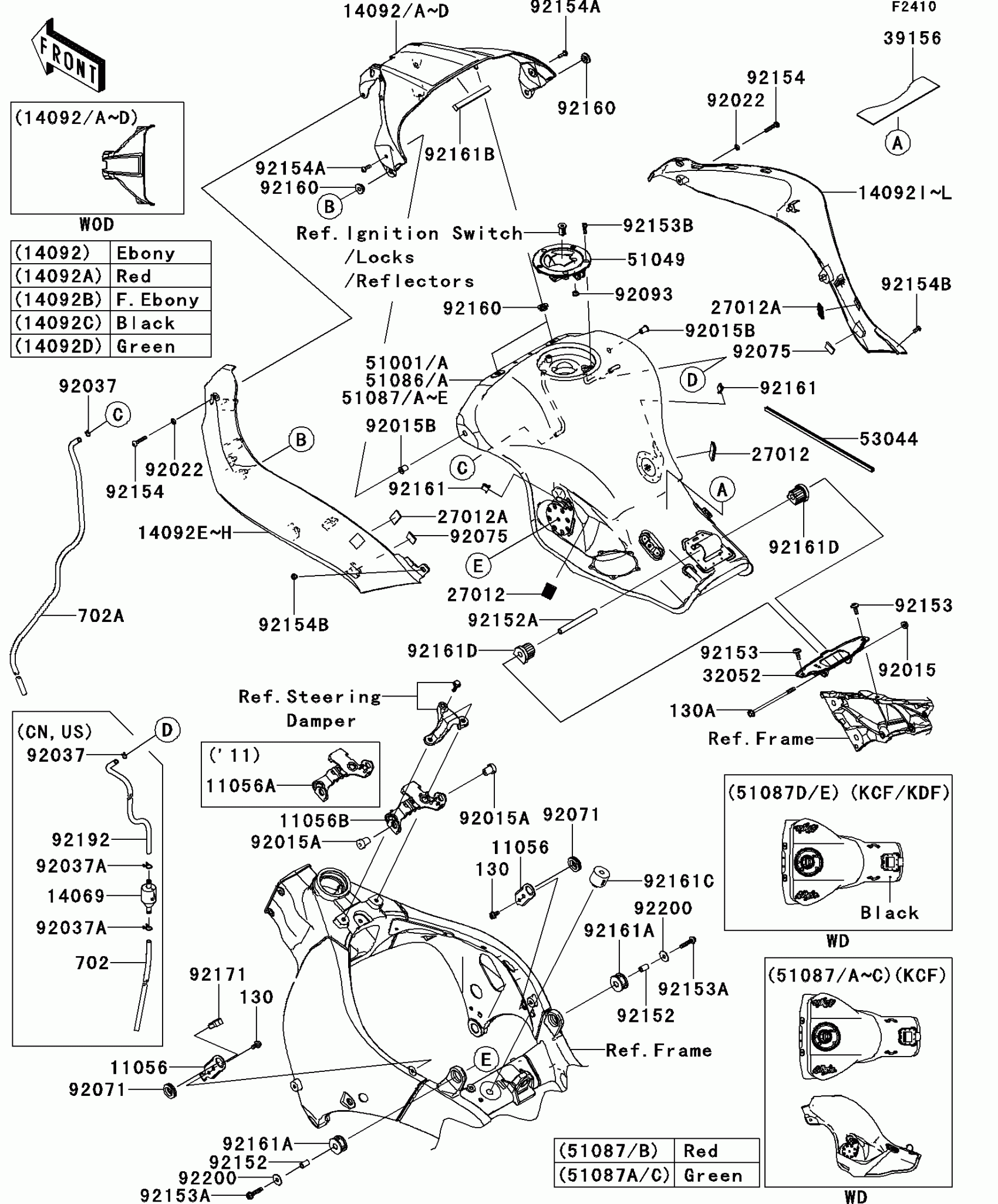

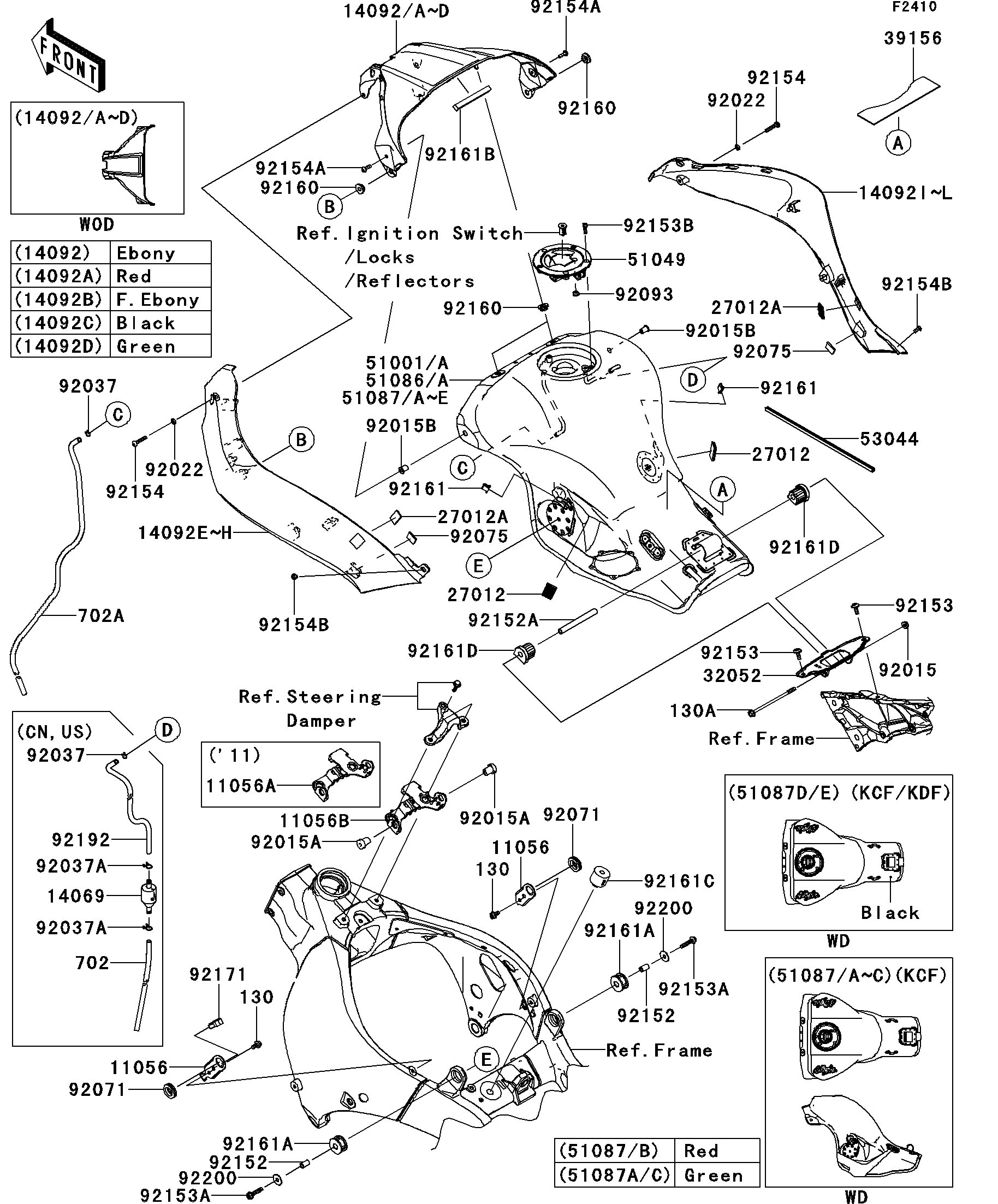

Kawasaki NINJA® ZX™-10R ABS Fuel Tank(KBF-KDF) Diagram

#

Description
Price

11056

BRACKET,TANK COVER,SIDE

11056-0242

$7.81

11056B

BRACKET,TANK COVER,FR

11056-1655

$9.03

14069

BREATHER,FUEL TANK

14069-1004

$7.76

14092C

COVER,TANK,CNT,M.S.BLACK

14092-0786-660

$178.33

14092F

COVER,TANK,LH,P.F.S.WHITE

14092-0787-40X

$219.73

14092H

COVER,TANK,LH,L.GREEN

14092-0787-777

$219.73

14092J

COVER,TANK,RH,P.F.S.WHITE

14092-0788-40X

$219.73

14092L

COVER,TANK,RH,L.GREEN

14092-0788-777

$209.64

27012

HOOK

27012-0170

$4.85

27012A

HOOK

27012-0171

$4.46

32052

BRACKET-TANK

32052-0154

$37.15

39156

PAD,40X180X1.0

39156-0745

$17.90

51049

CAP-TANK,FUEL

51049-0030

$131.08

51087D

TANK-COMP-FUEL,M.S.BLACK

51087-5336-660

$1,245.25

51087E

TANK-COMP-FUEL,M.S.BLACK

51087-5337-660

$1,249.01

53044

TRIM

53044-1296

$11.49

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92015A

NUT,RUBBER,6MM

92015-1692

$5.61

92015B

NUT,WELL,5MM

92015-1757

$5.58

92022

WASHER-PLAIN

92022-183

$2.99

92037

CLAMP,TUBE

92037-010

$2.99

92037

CLAMP,TUBE

92037-010

$2.99

92037A

CLAMP,TUBE

92037-147

$5.61

92071

GROMMET

92071-1043

$3.91

92075

DAMPER

92075-1982

$3.92

92093

SEAL,FUEL TANK CAP

92093-1030

$5.93

92152

COLLAR,6.8X10X18.5

92152-0883

$1.68

92152A

COLLAR,6.8X10X60

92152-1182

$3.69

92153

BOLT,SOCKET,6X16

92153-1526

$1.32

92153A

BOLT,FLANGED,6X28

92153-1580

$1.57

92153B

BOLT,SOCKET,5X16

92153-1616

$1.04

92154

BOLT,SOCKET,6X30

92154-0206

$1.95

92154A

BOLT,SOCKET,5X16

92154-0209

$1.95

92154B

BOLT,SOCKET,5X10

92154-0211

$1.54

92160

DAMPER

92160-1613

$2.84

92161

DAMPER

92161-0365

$4.04

92161A

DAMPER,10X30X16

92161-0869

$3.36

92161B

DAMPER,10X90X10

92161-0963

$1.66

92161C

DAMPER

92161-1116

$8.93

92161D

DAMPER,FUEL TANK,RR

92161-1330

$4.42

92171

CLAMP

92171-0782

$3.51

92192

TUBE,6X9X(770)

92192-0975

$10.58

92200

WASHER,6.5X22X1.6

92200-1087

$3.01

130

BOLT-FLANGED,6X12

130AA0612

$0.63

130A

BOLT-FLANGED,6X75

130BA0675

$1.44

702

TUBE-RUBBER,6X200

702A06200

$8.75

702A

TUBE-RUBBER,6X9X750

702A06750

$20.58
