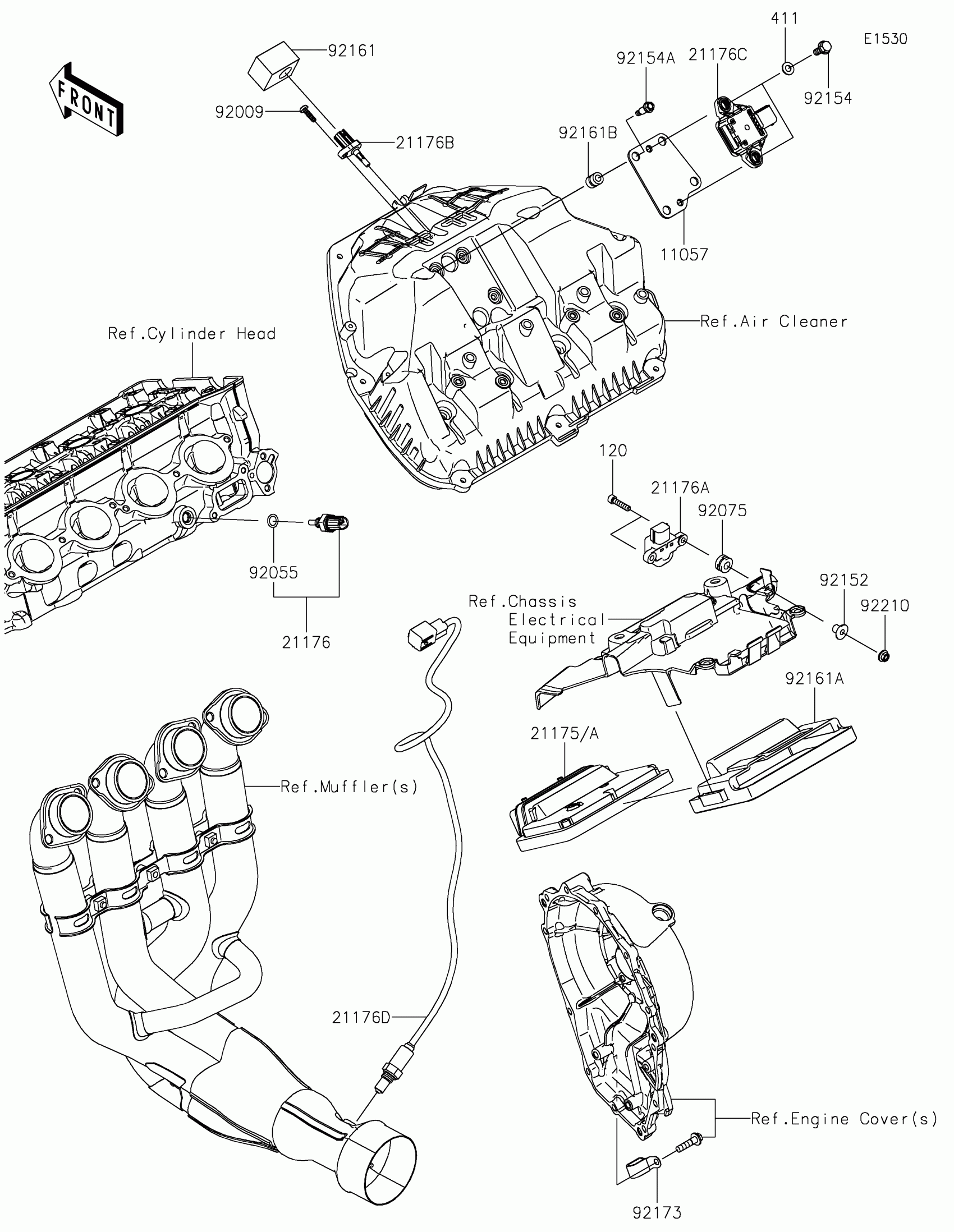

Kawasaki NINJA® ZX™-10R ABS Fuel Injection Diagram

Description

Price

21175A

CONTROL UNIT-ELECTRONIC

21175-0764

$1,302.58

21176

SENSOR,WATER TEMP

21176-0009

$61.96

21176A

SENSOR,VEHICLE-DOWN

21176-0026

$77.23

21176B

SENSOR,AIR TEMPERATURE

21176-0048

$21.77

92009

SCREW,TAPPING,5X16

92009-1984

$1.82

92055

RING-O,9.5X1.9

92055-0016

$6.77

92075

DAMPER

92075-1912

$5.07

92152

COLLAR

92152-0134

$7.54

92161

DAMPER,ECU

92161-0875

$38.01

92161A

DAMPER

92161-0985

$5.25

92210

NUT,FLANGED,5MM

92210-0007

$1.90

120

BOLT-SOCKET,5X22

120CA0522

$1.51
