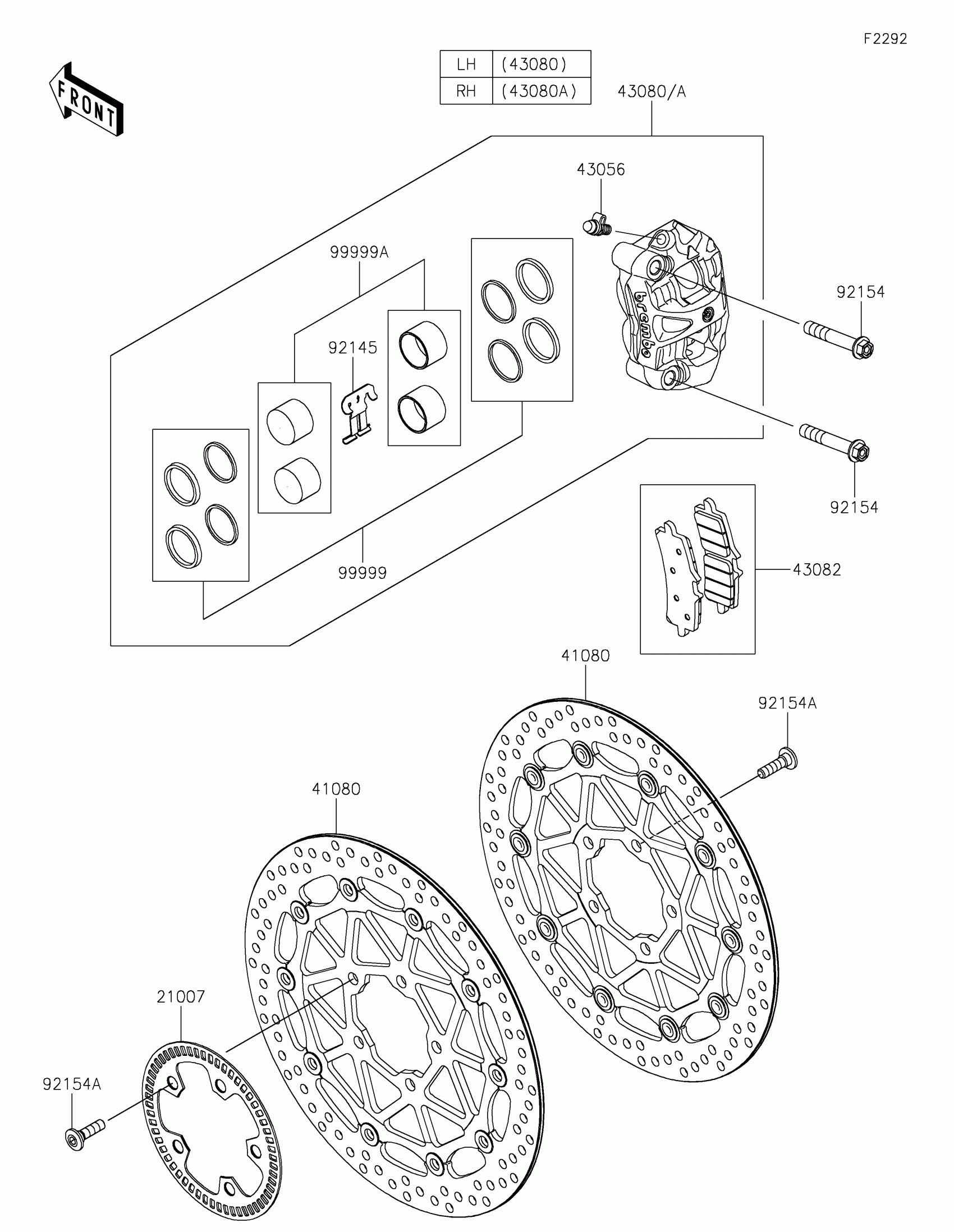

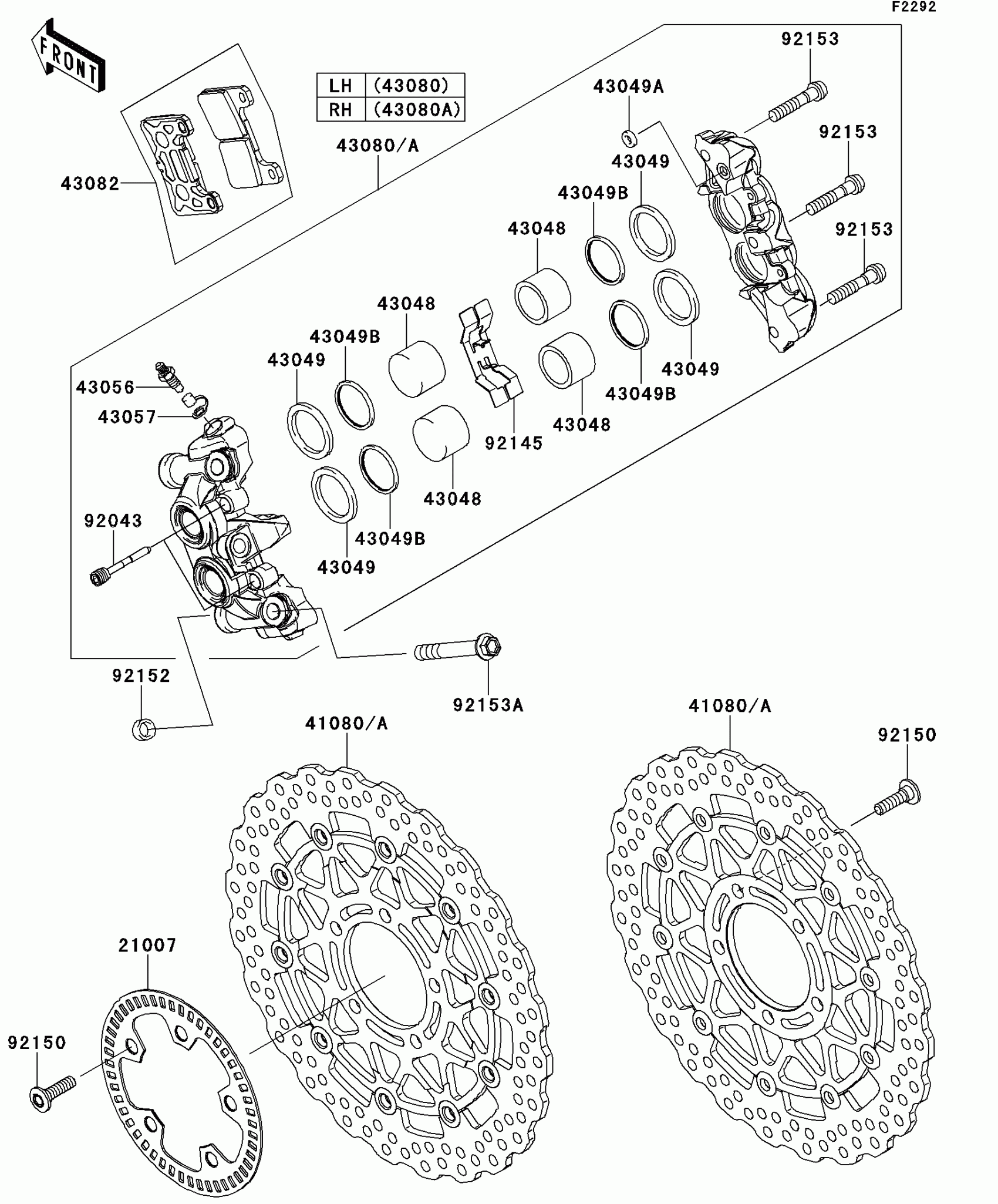

Kawasaki NINJA® ZX™-10R ABS Front Brake Diagram

Description

Price

21007

ROTOR,FR WHEEL

21007-0166

$34.18

41080

DISC,FR,HOUSING GOLD+DISC SIL

41080-0159-488

$416.93

41080A

DISC,FR,HOUSING BLK+DISC SIL

41080-0159-5C

$471.76

43048

PISTON-CALIPER

43048-0013

$70.21

43049

PACKING,PISTON

43049-0012

$10.19

43049A

PACKING,SEAL,6.5X11.5X2.2

43049-1004

$4.64

43049B

PACKING

43049-1068

$7.48

43056

BREATHER-BRAKE

43056-0007

$22.39

43057

CAP-BREATHER

43057-003

$1.74

43080

CALIPER-SUB-ASSY,FR,LH,BLACK

43080-0101-DJ

$412.23

43080A

CALIPER-SUB-ASSY,FR,RH,BLACK

43080-0102-DJ

$412.23

43082

PAD-ASSY-BRAKE

43082-0091

$69.41

92043

PIN,PAD

92043-1709

$6.38

92145

SPRING,PAD

92145-0580

$17.63

92150

BOLT,SOCKET,8X30

92150-1771

$3.57

92152

COLLAR,DOWEL PIN

92152-0679

$5.80

92153

BOLT,SOCKET,8X40

92153-0360

$4.20

92153A

BOLT,FLANGED,10X73

92153-1890

Unavailable
