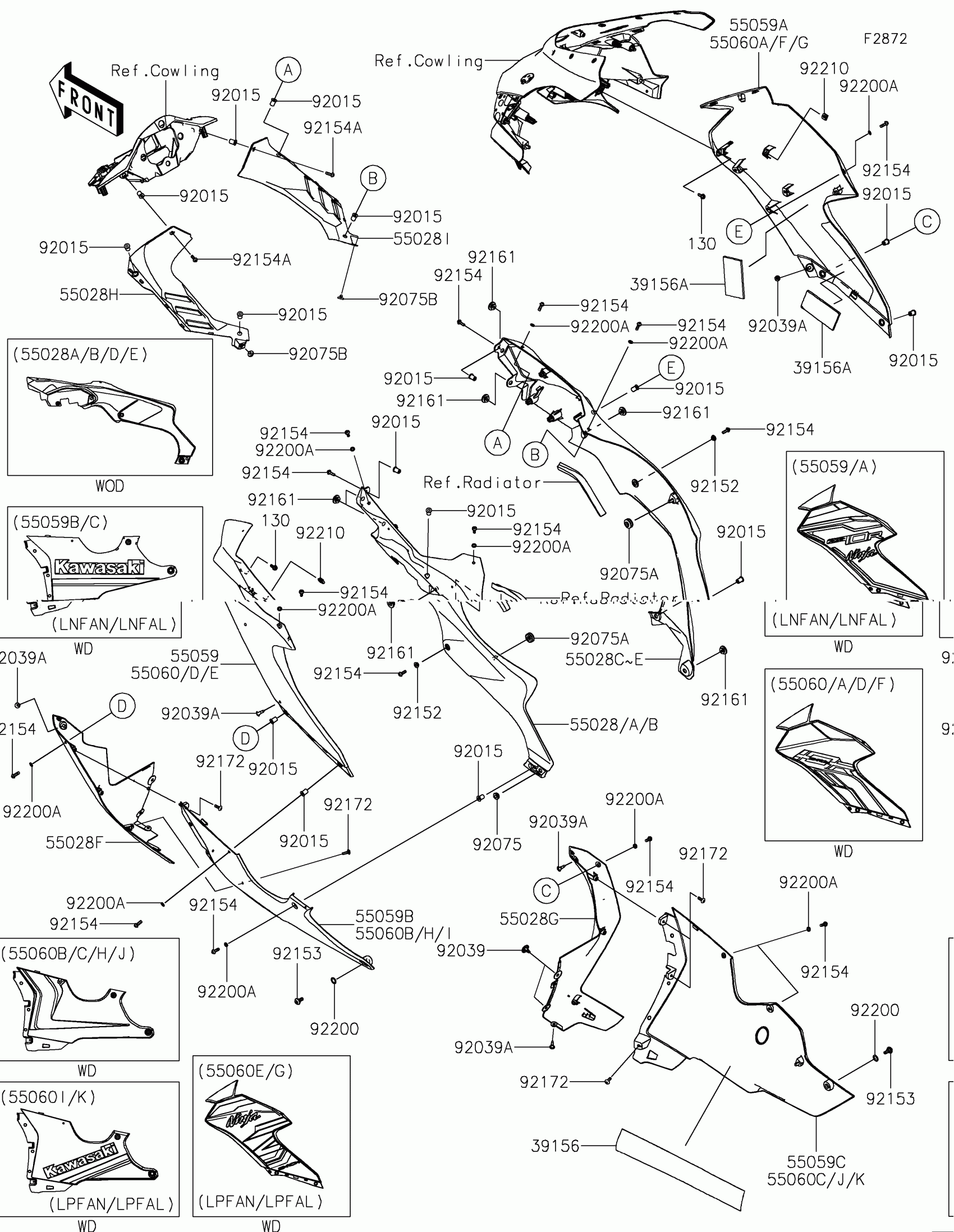

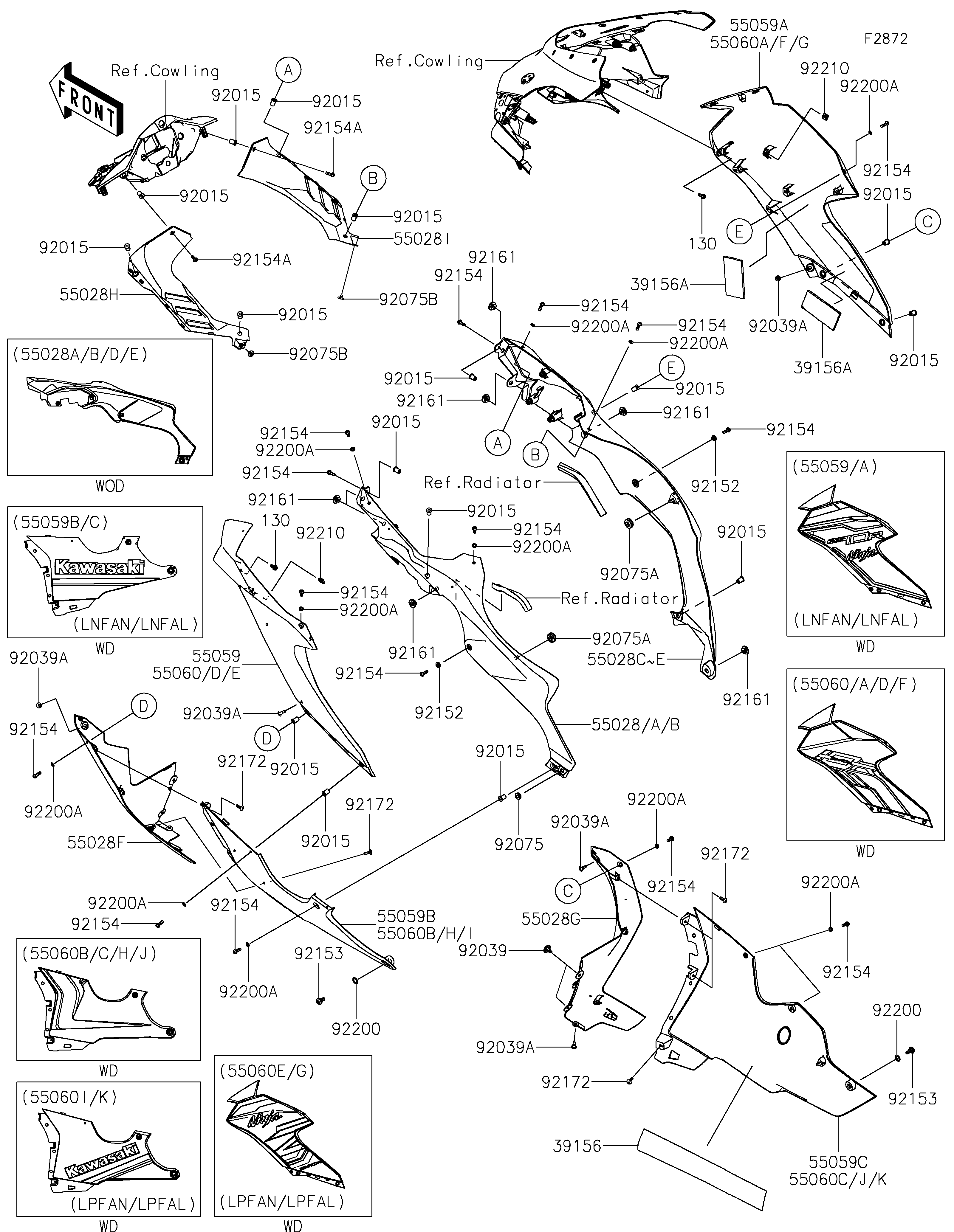

Kawasaki Ninja® ZX-10R ABS Cowling Lowers(LNFAN-LPFAL) Diagram

#

Description
Price

39156

PAD,49X400X0.3

39156-0753

$16.63

39156A

PAD,100X50X5

39156-2543

$1.87

55028

COWLING,SIDE,LH,M.M.G.GRAY

55028-0759-68P

$247.36

55028A

COWLING,SIDE,LH,L.GREEN

55028-0759-777

$247.36

55028B

COWLING,SIDE,LH,EBONY

55028-0759-H8

$247.37

55028C

COWLING,SIDE,RH,M.M.G.GRAY

55028-0760-68P

$260.72

55028D

COWLING,SIDE,RH,L.GREEN

55028-0760-777

$260.72

55028E

COWLING,SIDE,RH,EBONY

55028-0760-H8

$260.72

55028F

COWLING,FR,LWR,LH

55028-0765

$60.67

55028G

COWLING,FR,LWR,RH

55028-0766

$56.45

55028H

COWLING,INNER,LH

55028-0767

$31.36

55028I

COWLING,INNER,RH

55028-0768

$31.36

55059

COWLING,WINGLET,LH,EBONY

55059-5406-H8

$509.92

55059A

COWLING,WINGLET,RH,EBONY

55059-5407-H8

$471.16

55059B

COWLING,LWR,LH,P.B.WHITE

55059-5408-54X

$335.36

55059C

COWLING,LWR,RH,P.B.WHITE

55059-5409-54X

$340.48

55060

COWLING,WINGLET,LH,M.M.G.GRAY

55060-5109-68P

$374.33

55060A

COWLING,WINGLET,RH,M.M.G.GRAY

55060-5110-68P

$398.91

55060B

COWLING,LWR,LH,M.D.BLACK

55060-5111-17K

$307.81

55060C

COWLING,LWR,RH,M.D.BLACK

55060-5112-17K

$289.09

55060D

COWLING,WINGLET,LH,M.M.G.GRAY

55060-5314-68P

$429.11

55060E

COWLING,WINGLET,LH,EBONY

55060-5315-H8

$545.54

55060F

COWLING,WINGLET,RH,M.M.G.GRAY

55060-5317-68P

$429.11

55060G

COWLING,WINGLET,RH,EBONY

55060-5318-H8

$545.54

55060H

COWLING,LWR,LH,M.D.BLACK

55060-5319-17K

$331.39

55060I

COWLING,LWR,LH,L.GREEN

55060-5321-777

$344.58

55060J

COWLING,LWR,RH,M.D.BLACK

55060-5322-17K

$338.08

55060K

COWLING,LWR,RH,L.GREEN

55060-5324-777

$351.26

92015

NUT,WELL,5MM

92015-1757

$5.58

92039

RIVET,HOLE 8MM

92039-0014

$2.28

92039A

RIVET

92039-0068

$2.09

92075

DAMPER,6X16X7

92075-1011

$5.61

92075A

DAMPER

92075-1067

$3.57

92075B

DAMPER,BOOST SENSOR

92075-2113

$0.92

92152

COLLAR

92152-2740

$4.88

92153

BOLT,SOCKET,6MM

92153-0489

$2.84

92154

BOLT,SOCKET,5X16

92154-0209

$1.95

92154A

BOLT,SOCKET,5X16

92154-1701

$0.95

92161

DAMPER,6X20X7.5

92161-1937

$1.32

92172

SCREW,TAPPING,5X16

92172-0175

$1.32

92200

WASHER,10.4X15.9X0.5

92200-0157

$1.57

92200A

WASHER,5.2X10X1.0

92200-1820

$0.60

92210

NUT

92210-0571

$2.69

130

BOLT-FLANGED,5X12

130BA0512

$1.55
