2018 Kawasaki Ninja H2™ SX Se Water Pipe Diagram

← All diagrams

Find the part on the Water Pipe diagram for your 2018 Kawasaki Ninja H2™ SX Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

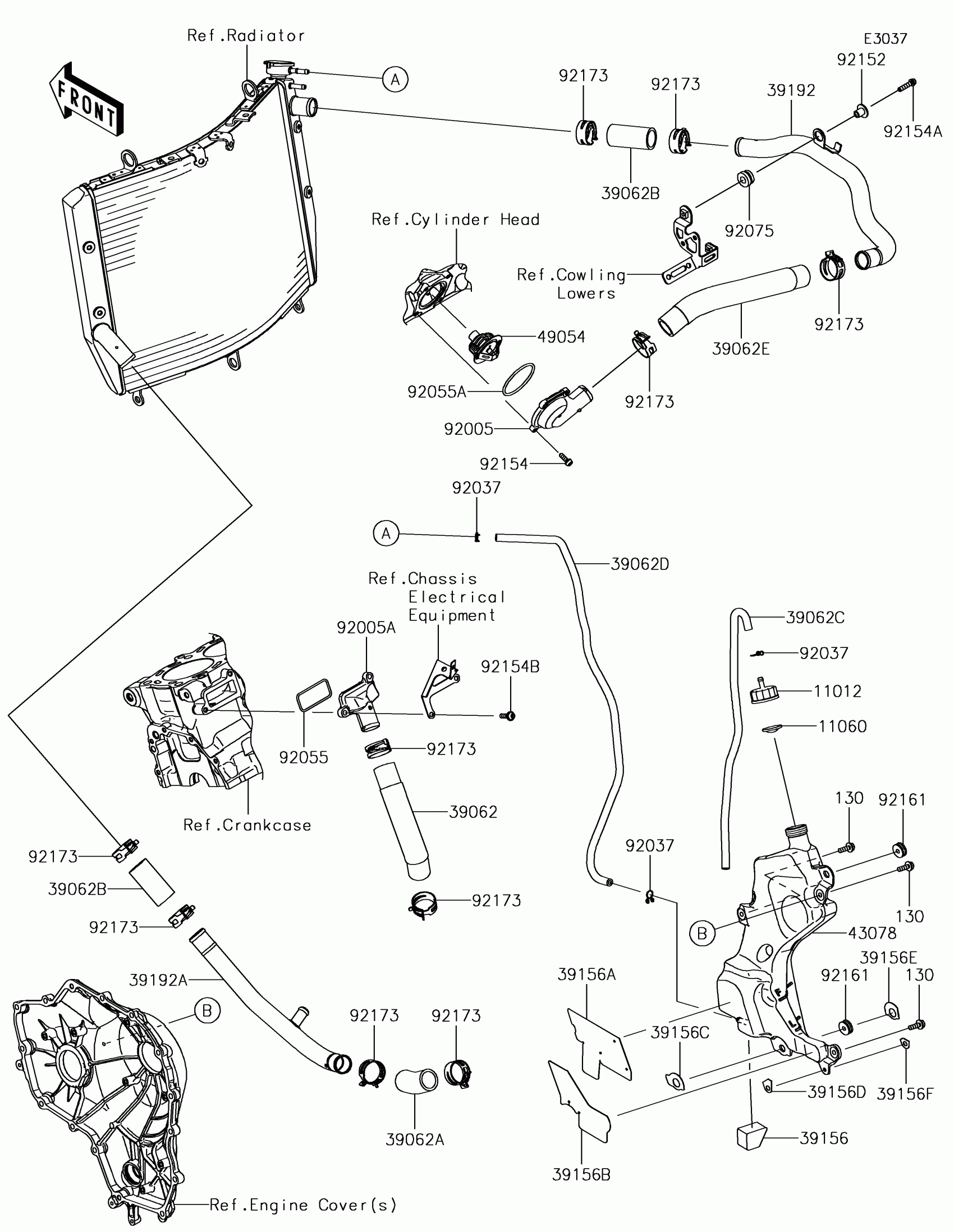

2018 Kawasaki Ninja H2™ SX Se Water Pipe Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1854

1
Out of stock

11060

GASKET,RESERVOIR TANK CAP

11060-1349

1
Out of stock

130

BOLT-FLANGED,6X18

130BA0618

1
Out of stock

39062

HOSE-COOLING,W/PUMP-FITTING

39062-0681

1
Out of stock

39062A

HOSE-COOLING,W/PIPE-W/PUMP

39062-0683

1
Out of stock

39062B

HOSE-COOLING,RADIATOR-W/PIPE

39062-0701

1
Out of stock

39062C

HOSE-COOLING

39062-0787

1
Out of stock

39062D

HOSE-COOLING

39062-0788

1
Out of stock

39062E

HOSE-COOLING,FITTING-W/PIPE

39062-0789

1
Out of stock

39156

PAD,RESERVOIR

39156-2252

1
Out of stock

39156A

PAD

39156-2389

1
Out of stock

39156B

PAD

39156-2390

1
Out of stock

39156C

PAD

39156-2391

1
Out of stock

39156D

PAD

39156-2392

1
Out of stock

39156E

PAD

39156-2393

1
Out of stock

39156F

PAD

39156-2394

1
Out of stock

39192

PIPE-WATER,RADIATOR,RH-HOSE

39192-0646

1
Out of stock

39192A

PIPE-WATER,RADIATOR,LH-W/PUMP

39192-0648

1
Out of stock

43078

RESERVOIR

43078-0592

1
Out of stock

49054

THERMOSTAT

49054-0004

1
Out of stock

92005

FITTING,THERMO COVER

92005-0887

1
Out of stock

92005A

FITTING,CYLINDER

92005-0888

1
Out of stock

92037

CLAMP,TUBE

92037-147

1
Out of stock

92055

RING-O

92055-0809

1
Out of stock

92055A

RING-O,54.5X2.6

92055-0810

1
Out of stock

92075

DAMPER,RUBBER

92075-1123

1
Out of stock

92152

COLLAR

92152-2112

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-1449

1
Out of stock

92154A

BOLT,SOCKET,6X25

92154-1457

1
Out of stock

92154B

BOLT,SOCKET,6X20

92154-1499

1
Out of stock

92161

DAMPER,6X20X7.5

92161-1991

1
Out of stock

92173

CLAMP,34MM

92173-1360

1
Out of stock
