2018 Kawasaki Ninja H2™ SX Se Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 2018 Kawasaki Ninja H2™ SX Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

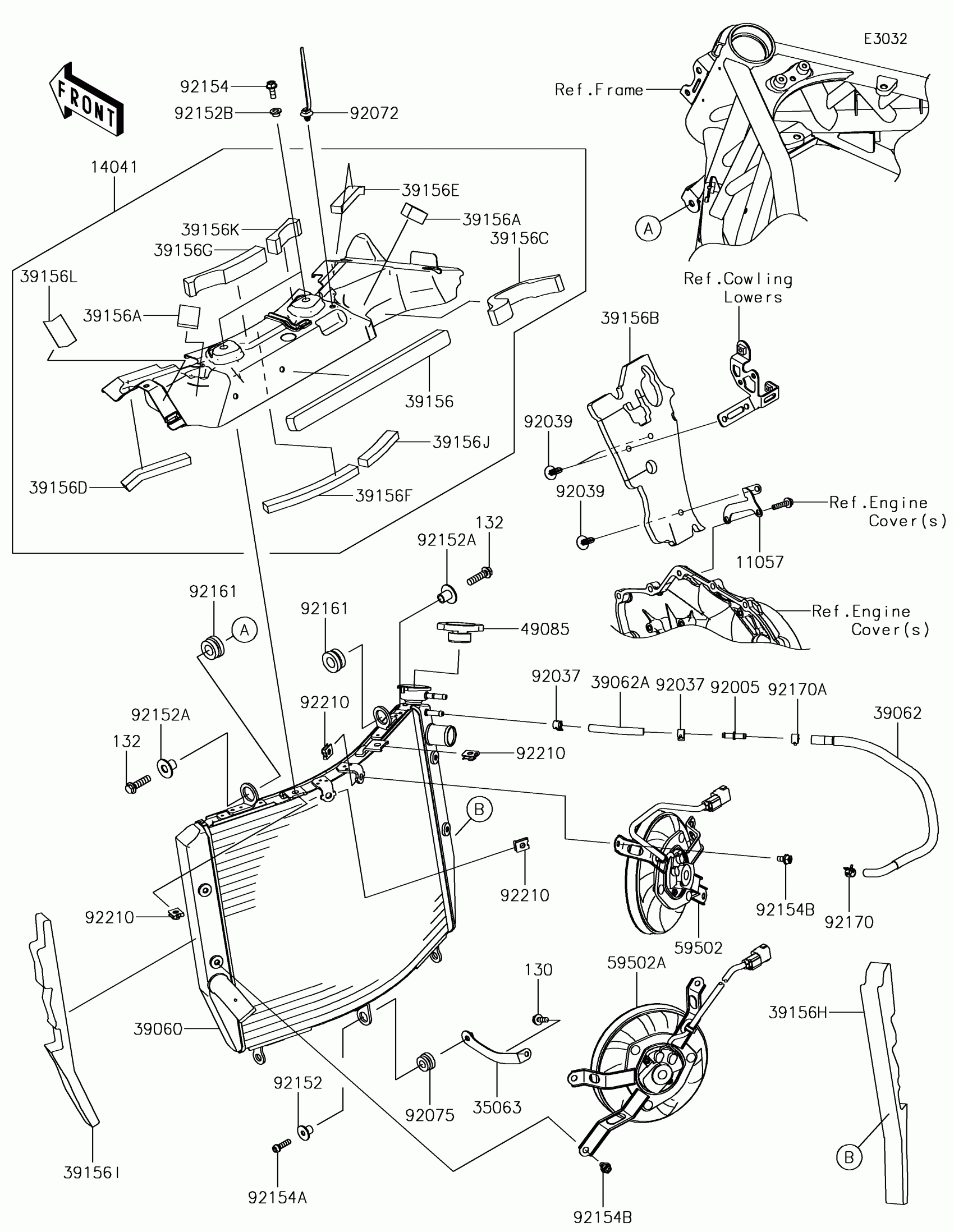

2018 Kawasaki Ninja H2™ SX Se Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-1392

1

$8.05

In stock

130

BOLT-FLANGED,6X16

130CC0616

1

$1.66

In stock

132

1

$3.11

In stock

14041

COVER-COMP,HEAT

14041-0603

1

$91.28

In stock

35063

STAY

35063-1416

1

$11.42

In stock

39060

RADIATOR

39060-0734

1

$1,147.10

In stock

39062

1

$13.53

In stock

39062A

1

$1.46

In stock

39156

PAD,20X285X15

39156-1840

1

$3.58

In stock

39156A

PAD,27X27X15

39156-1841

1

$0.98

In stock

39156B

1

$25.63

In stock

39156C

PAD

39156-2240

1

$21.37

In stock

39156D

PAD,94.4X15X10

39156-2248

1

$1.17

In stock

39156E

PAD,68X15X10

39156-2249

1

$0.95

In stock

39156F

PAD,141X15X10

39156-2250

1

$2.19

In stock

39156G

PAD

39156-2251

1

$4.41

In stock

39156H

1

$52.99

In stock

39156I

1

$53.85

In stock

39156J

PAD,80X15X10

39156-2327

1

$1.34

In stock

39156K

PAD

39156-2328

1

$2.19

In stock

39156L

PAD

39156-2401

1

$7.64

In stock

49085

CAP-ASSY-PRESSURE

49085-0006

1

$45.73

In stock

59502

FAN-ASSY,RH

59502-0619

1

$566.77

In stock

59502A

FAN-ASSY,LH

59502-0620

1

$612.17

In stock

92005

FITTING

92005-0721

1
Out of stock

92037

CLAMP,TUBE

92037-1461

1

$3.08

In stock

92039

RIVET

92039-0090

1

$2.92

In stock

92072

1

$2.97

In stock

92075

DAMPER,RUBBER

92075-1123

1

$3.97

In stock

92152

COLLAR,6.5X10X13.1

92152-0332

1

$4.95

In stock

92152A

COLLAR

92152-0439

1

$3.51

In stock

92152B

COLLAR

92152-2111

1
Out of stock

92154

BOLT,FLANGED,6X16

92154-0887

1

$1.44

In stock

92154A

BOLT,SOCKET,6X22

92154-1456

1

$1.32

In stock

92154B

BOLT

92154-1648

1

$1.10

In stock

92161

DAMPER

92161-0304

1

$2.42

In stock

92170

CLAMP

92170-1493

1

$3.97

In stock

92170A

CLAMP

92170-1872

1

$3.18

In stock

92210

NUT

92210-1323

1
Out of stock
