2018 Kawasaki Ninja H2™ SX Se Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2018 Kawasaki Ninja H2™ SX Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

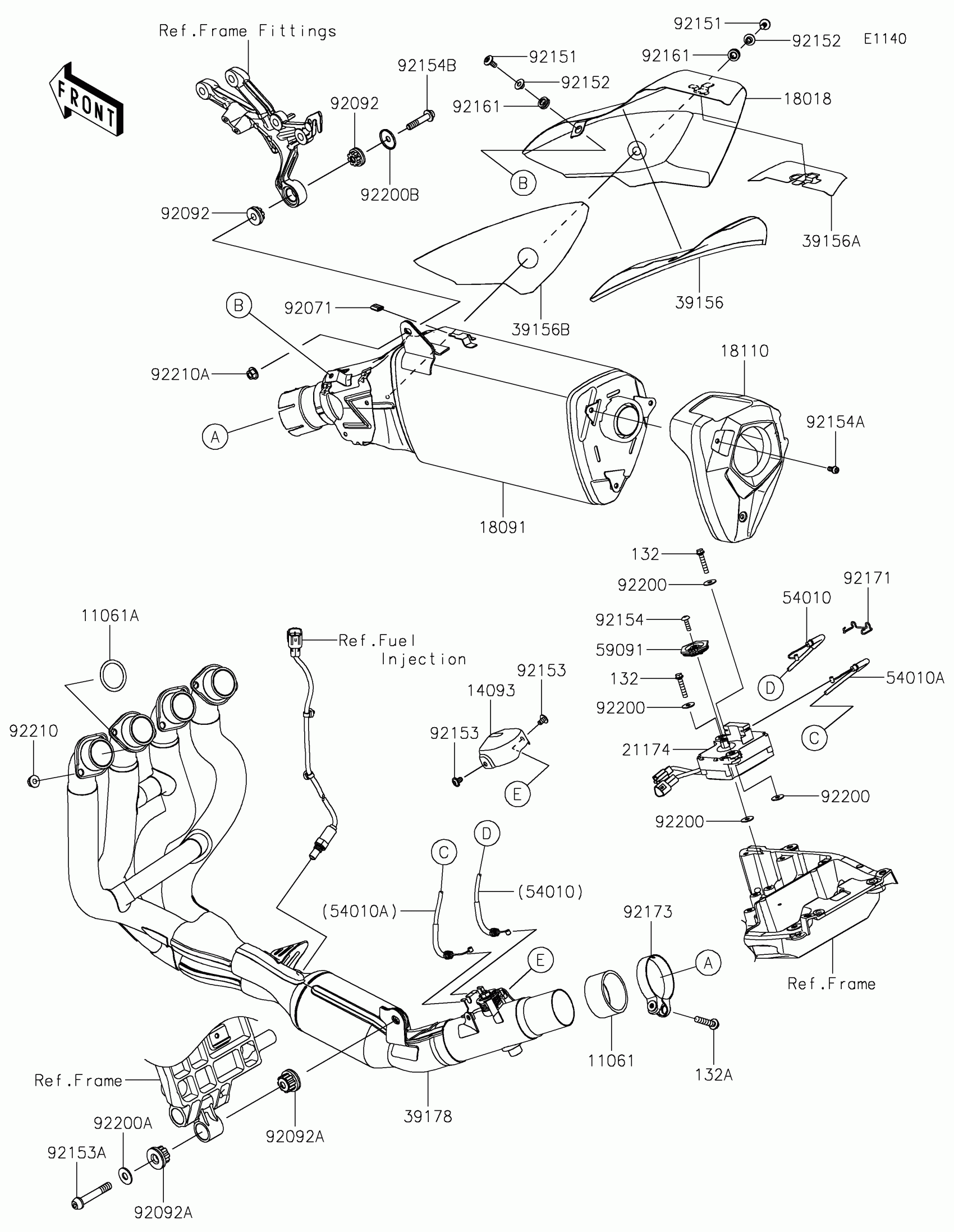

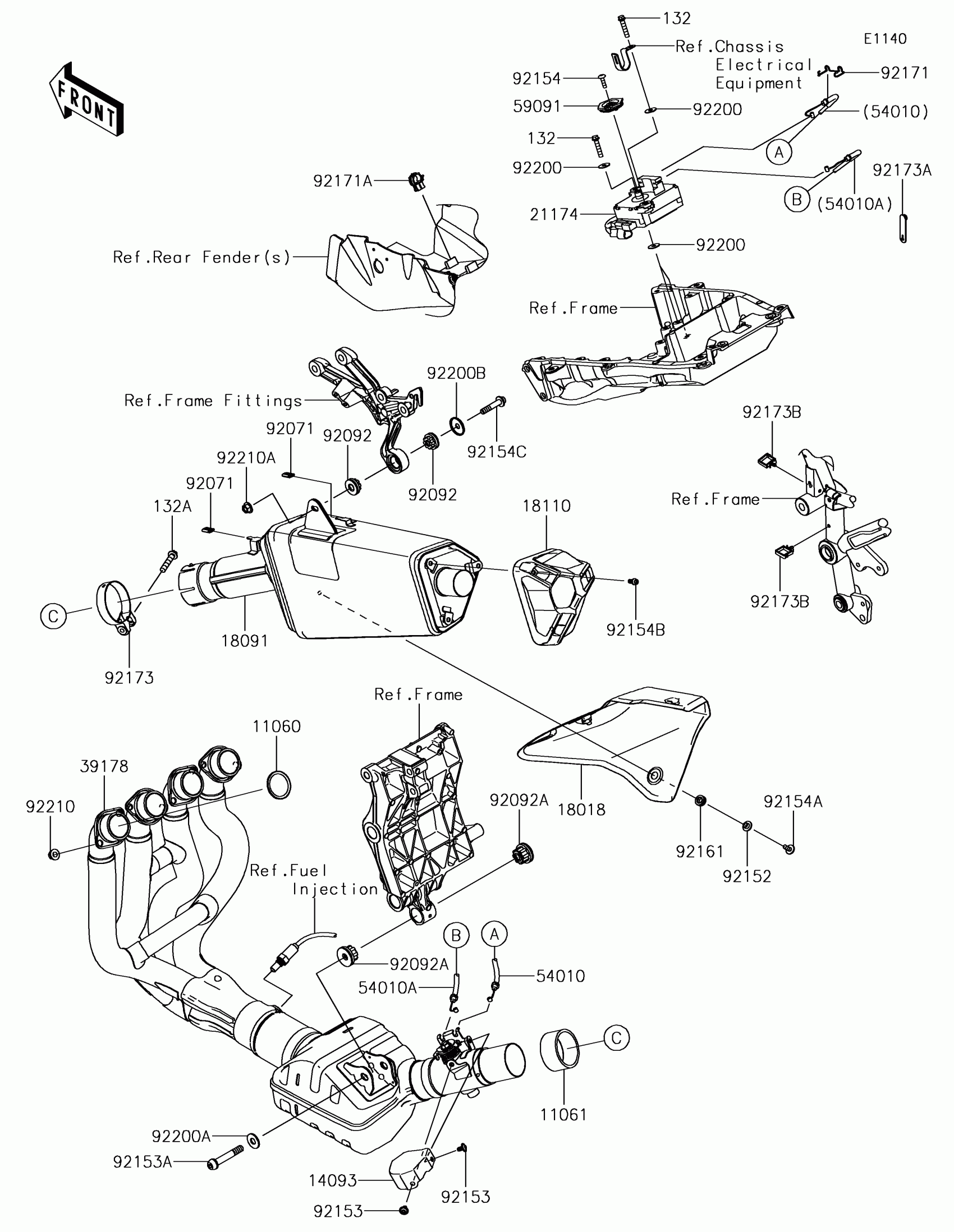

2018 Kawasaki Ninja H2™ SX Se Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11060

GASKET,EXHAUST PIPE

11060-1203

1
Out of stock

11061

GASKET,MUFFLER JOINT

11061-0980

1
Out of stock

132

BOLT-FLANGED-SMALL,6X30

132BA0630

1
Out of stock

132A

BOLT-FLANGED-SMALL,8X40

132BC0840

1
Out of stock

14093

COVER

14093-0643

1
Out of stock

18018

PLATE-HEAT GUARD,RR

18018-0606

1
Out of stock

18091

BODY-COMP-MUFFLER

18091-1151

1
Out of stock

18110

BODY END-MUFFLER

18110-0201

1
Out of stock

21174

MOTOR-ELECTRIC

21174-0009

1
Out of stock

39178

MANIFOLD-COMP-EXHAUST

39178-0311

1
Out of stock

54010

CABLE,OPEN

54010-0622

1
Out of stock

54010A

CABLE,CLOSE

54010-0623

1
Out of stock

59091

PULLEY

59091-0007

1
Out of stock

92071

GROMMET

92071-1270

1
Out of stock

92092

BUSHING-RUBBER

92092-0018

1
Out of stock

92092A

BUSHING-RUBBER

92092-1081

1
Out of stock

92152

COLLAR

92152-2461

1
Out of stock

92153

BOLT,SOCKET,6X10

92153-1527

1
Out of stock

92153A

BOLT,SOCKET,10X60

92153-1837

1
Out of stock

92154

BOLT,TORX,5X18

92154-0217

1
Out of stock

92154A

BOLT,SOCKET,6X14

92154-0907

1
Out of stock

92154B

BOLT,SOCKET,6X12

92154-1453

1
Out of stock

92154C

BOLT,SOCKET,8X40

92154-2808

1
Out of stock

92161

DAMPER

92161-0306

1
Out of stock

92171

CLAMP

92171-0292

1
Out of stock

92171A

CLAMP,EDGE CLIP

92171-1722

1
Out of stock

92173

CLAMP,64.5MM

92173-0284

1
Out of stock

92173A

CLAMP,RUBBER PLATE

92173-1229

1
Out of stock

92173B

CLAMP

92173-1513

1
Out of stock

92200

WASHER

92200-0078

1
Out of stock

92200A

WASHER,10.5X25X2.0

92200-1377

1
Out of stock

92200B

WASHER

92200-1919

1
Out of stock

92210

NUT,8MM

92210-0076

1
Out of stock

92210A

NUT,8MM

92210-0121

1
Out of stock
