2018 Kawasaki Ninja H2™ SX Se Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2018 Kawasaki Ninja H2™ SX Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

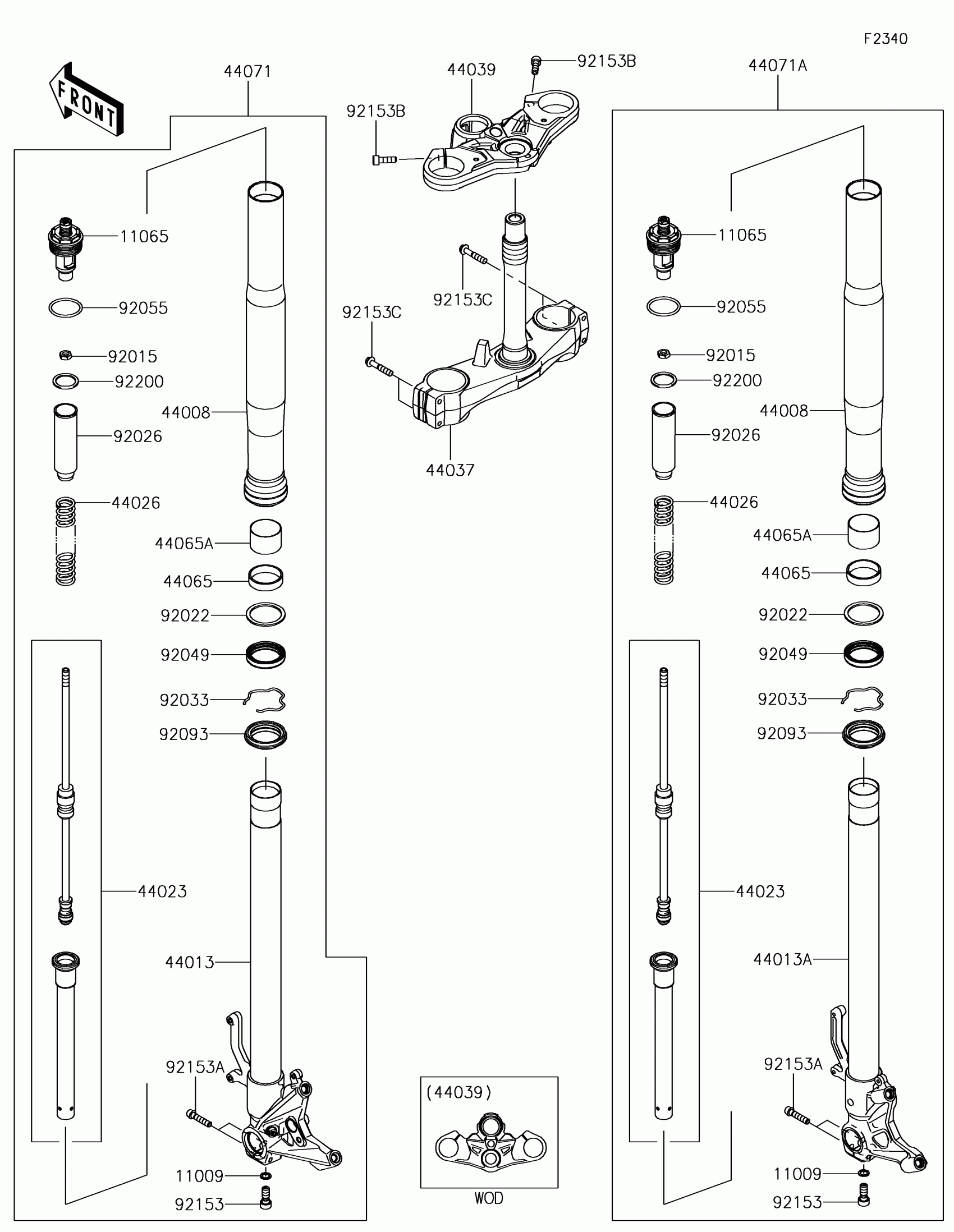

2018 Kawasaki Ninja H2™ SX Se Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,10.5X15X1.5

11009-1325

1
Out of stock

11065

CAP,K.GOLD

11065-1295-59K

1

$250.65

In stock

44008

PIPE-FORK OUTER,K.GOLD

44008-0087-828

1

$508.67

In stock

44013

1

$684.82

In stock

44013A

1

$684.82

In stock

44023

CYLINDER-SET-FORK

44023-0148

1

$474.60

In stock

44026

SPRING-FRONT FORK

44026-0229

1

$135.67

In stock

44037

HOLDER-FORK UNDER

44037-0179

1

$845.66

In stock

44039

1

$344.26

In stock

44065

1

$19.45

In stock

44065A

BUSHING-FRONT FORK

44065-0064

1

$25.00

In stock

44071

DAMPER-ASSY,LH,K.GOLD

44071-1338-59K

1

$1,251.53

In stock

44071A

DAMPER-ASSY,RH,K.GOLD

44071-1339-59K

1

$1,251.53

In stock

92015

NUT

92015-1905

1

$18.34

In stock

92022

WASHER

92022-1299

1

$6.82

In stock

92026

SPACER

92026-0736

1
Out of stock

92033

RING-SNAP

92033-1077

1

$3.94

In stock

92049

SEAL-OIL,FORK OUTER TUBE

92049-1522

1
Out of stock

92055

RING-O

92055-0145

1

$2.10

In stock

92093

1

$14.61

In stock

92153

BOLT,SOCKET,10X25

92153-0548

1
Out of stock

92153A

BOLT,SOCKET,8X35

92153-1472

1
Out of stock

92153B

BOLT,SOCKET,8X25

92153-1625

1

$3.69

In stock

92153C

BOLT,FLANGED,8X40

92153-1884

1

$8.17

In stock

92200

WASHER

92200-0085

1
Out of stock
