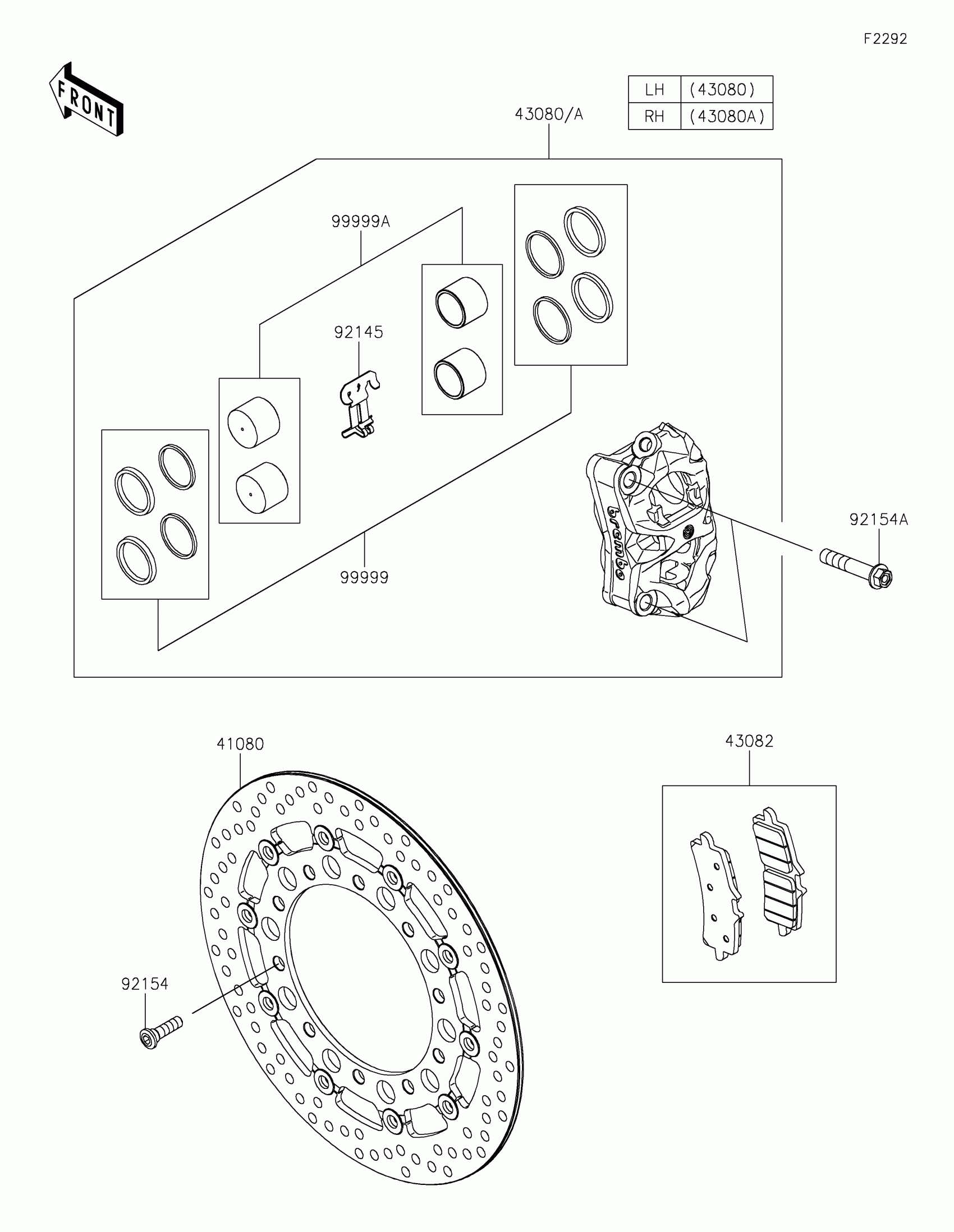

Kawasaki NINJA H2™ SX SE Front Brake Diagram

Description

Price

41080

DISC,FR,320MM,BLACK+BLK

41080-0688-18U

$592.20

43048

PISTON-CALIPER

43048-0023

$70.45

43048A

PISTON-CALIPER

43048-0024

$70.45

43049

PACKING,PISTON

43049-0012

$10.19

43049A

PACKING,PISTON

43049-0013

$12.78

43049B

PACKING

43049-1068

$7.48

43049C

PACKING,WIPER

43049-1107

$6.37

43056

BREATHER-BRAKE

43056-0007

$22.39

43057

CAP-BREATHER

43057-003

$1.74

43080

CALIPER-SUB-ASSY,FR,LH,BLACK

43080-0143-DJ

$480.11

43080A

CALIPER-SUB-ASSY,FR,RH,BLACK

43080-0144-DJ

$480.11

43082

PAD-ASSY-BRAKE

43082-0182

$83.77

92043

PIN,PAD

92043-1709

$6.38

92145

SPRING,PAD

92145-0580

$17.63

92152

COLLAR,DOWEL PIN

92152-0679

$5.80

92153

BOLT,FLANGED,10X73

92153-1890

Unavailable

92154

BOLT,SOCKET,8X30

92154-1723

$3.01
