2024 Kawasaki Ninja H2 SX Se Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2024 Kawasaki Ninja H2 SX Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

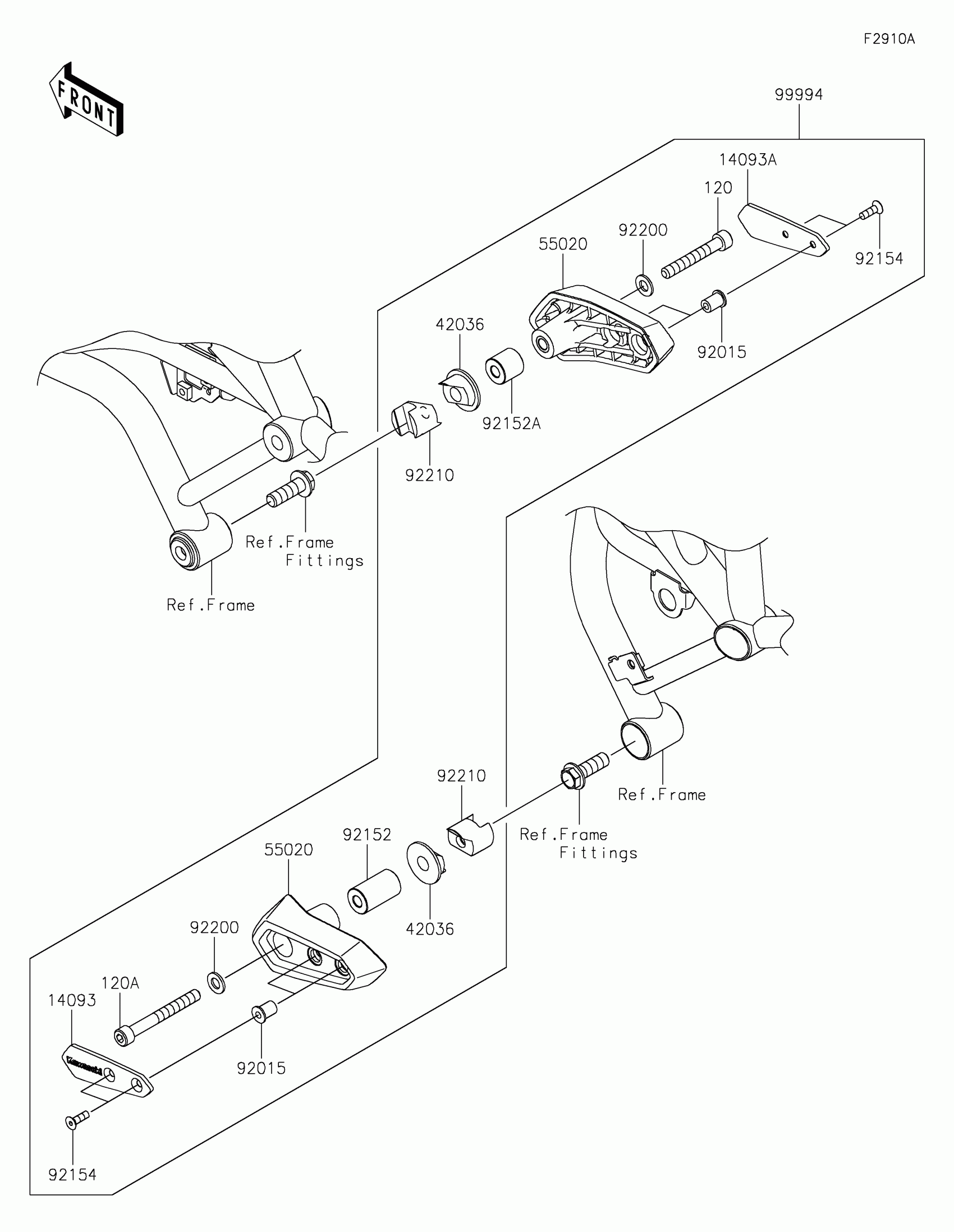

2024 Kawasaki Ninja H2 SX Se Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

COVER,SLIDER,LH

14093-0350

1
Out of stock

14093A

COVER,SLIDER,RH

14093-0351

1
Out of stock

42036

SLEEVE,11X32X17.5

42036-0765

1
Out of stock

55020

GUARD

55020-1997

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1
Out of stock

92152

COLLAR,8.3X20X34.2

92152-2451

1
Out of stock

92152A

COLLAR

92152-2452

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-1014

1
Out of stock

92200

WASHER,8.4X16X1.6

92200-0807

1
Out of stock

92210

NUT,8MM

92210-1421

1
Out of stock

99994

KIT-ACCESSORY,SLIDER

99994-1095

1
Out of stock

120

BOLT-SOCKET

120CA0855

1
Out of stock

120A

BOLT-SOCKET,8X70

120CA0870

1
Out of stock
