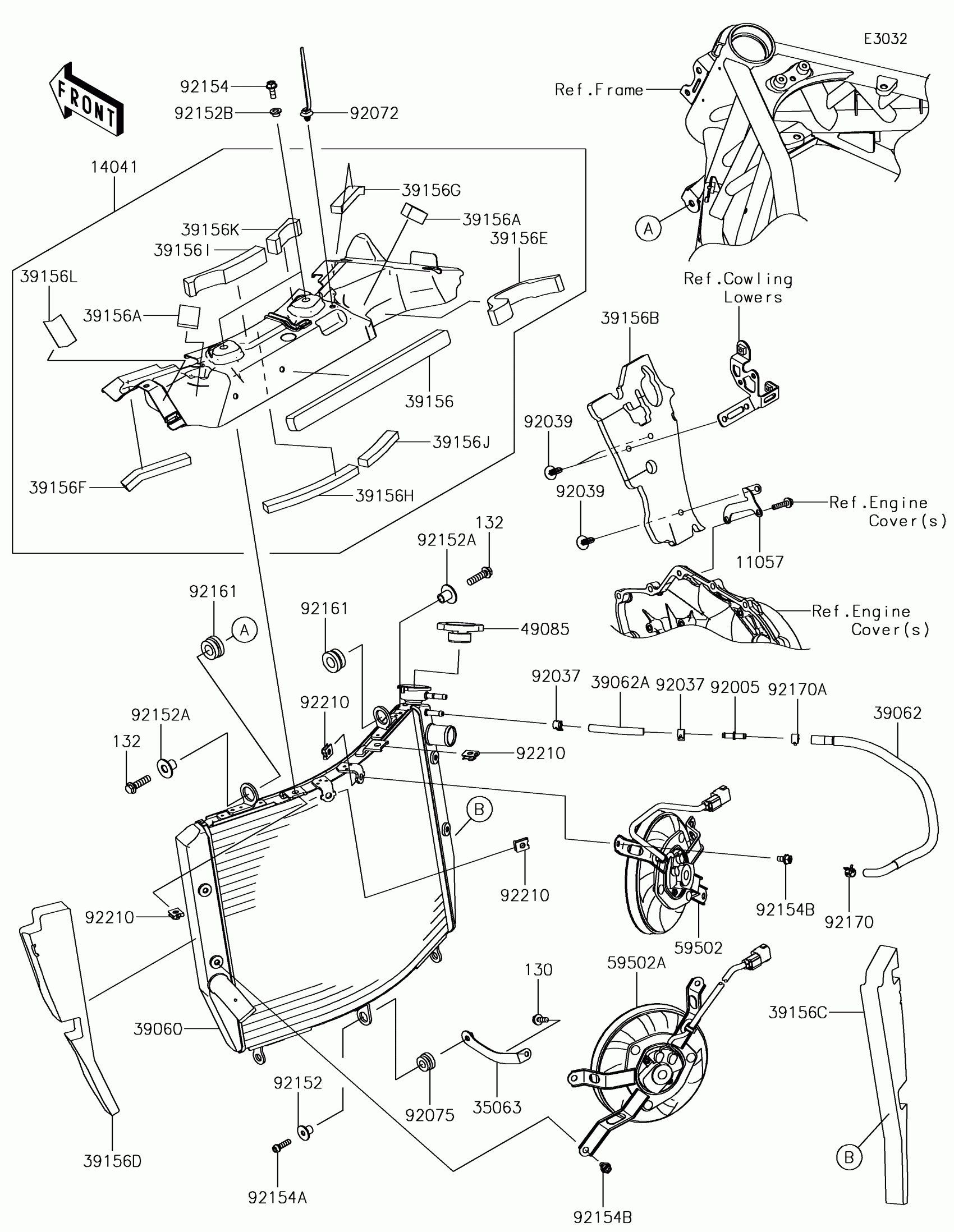

Kawasaki NINJA H2™ SX Radiator Diagram

#

Description
Price

11057

BRACKET

11057-1392

$8.05

14041

COVER-COMP,HEAT

14041-0603

$91.28

35063

STAY

35063-1416

$11.42

39060

RADIATOR

39060-0734

$1,147.10

39062

HOSE-COOLING,CYLINDER-FITTING

39062-0790

$13.53

39062A

HOSE-COOLING,FITTING-RADIATOR

39062-0791

$1.46

39156

PAD,20X285X15

39156-1840

$3.58

39156A

PAD,27X27X15

39156-1841

$0.98

39156B

PAD,HEAT GUARD,RH,ENGINE

39156-2222

$25.63

39156C

PAD,HEAT GUARD,RH,RADIATOR

39156-2223

$58.12

39156D

PAD,HEAT GUARD,LH,RADIATOR

39156-2224

$54.12

39156E

PAD

39156-2240

$21.37

39156F

PAD,94.4X15X10

39156-2248

$1.17

39156G

PAD,68X15X10

39156-2249

$0.95

39156H

PAD,141X15X10

39156-2250

$2.19

39156I

PAD

39156-2251

$4.41

39156J

PAD,80X15X10

39156-2327

$1.34

39156K

PAD

39156-2328

$2.19

39156L

PAD

39156-2401

$7.64

49085

CAP-ASSY-PRESSURE

49085-0006

$44.67

59502

FAN-ASSY,RH

59502-0619

$552.15

59502A

FAN-ASSY,LH

59502-0620

$612.17

92005

FITTING

92005-0721

$8.85

92037

CLAMP,TUBE

92037-1461

$2.93

92039

RIVET

92039-0090

$2.69

92072

BAND,OS170-FT7(BLACK)

92072-1414

$2.84

92075

DAMPER,RUBBER

92075-1123

$3.81

92152

COLLAR,6.5X10X13.1

92152-0332

$4.95

92152A

COLLAR

92152-0439

$2.98

92152B

COLLAR

92152-2111

$5.24

92154

BOLT,FLANGED,6X16

92154-0887

$1.24

92154A

BOLT,SOCKET,6X22

92154-1456

$1.32

92154B

BOLT

92154-1648

$0.95

92161

DAMPER

92161-0304

$2.09

92170

CLAMP

92170-1493

$3.81

92170A

CLAMP

92170-1872

$3.05

92210

NUT

92210-1323

$3.19

130

BOLT-FLANGED,6X16

130CC0616

$1.43

132

BOLT-FLANGED-SMALL,8X30

132BC0830

$2.98
