2018 Kawasaki Ninja H2™ SX Brake Piping Diagram

← All diagrams

Find the part on the Brake Piping diagram for your 2018 Kawasaki Ninja H2™ SX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

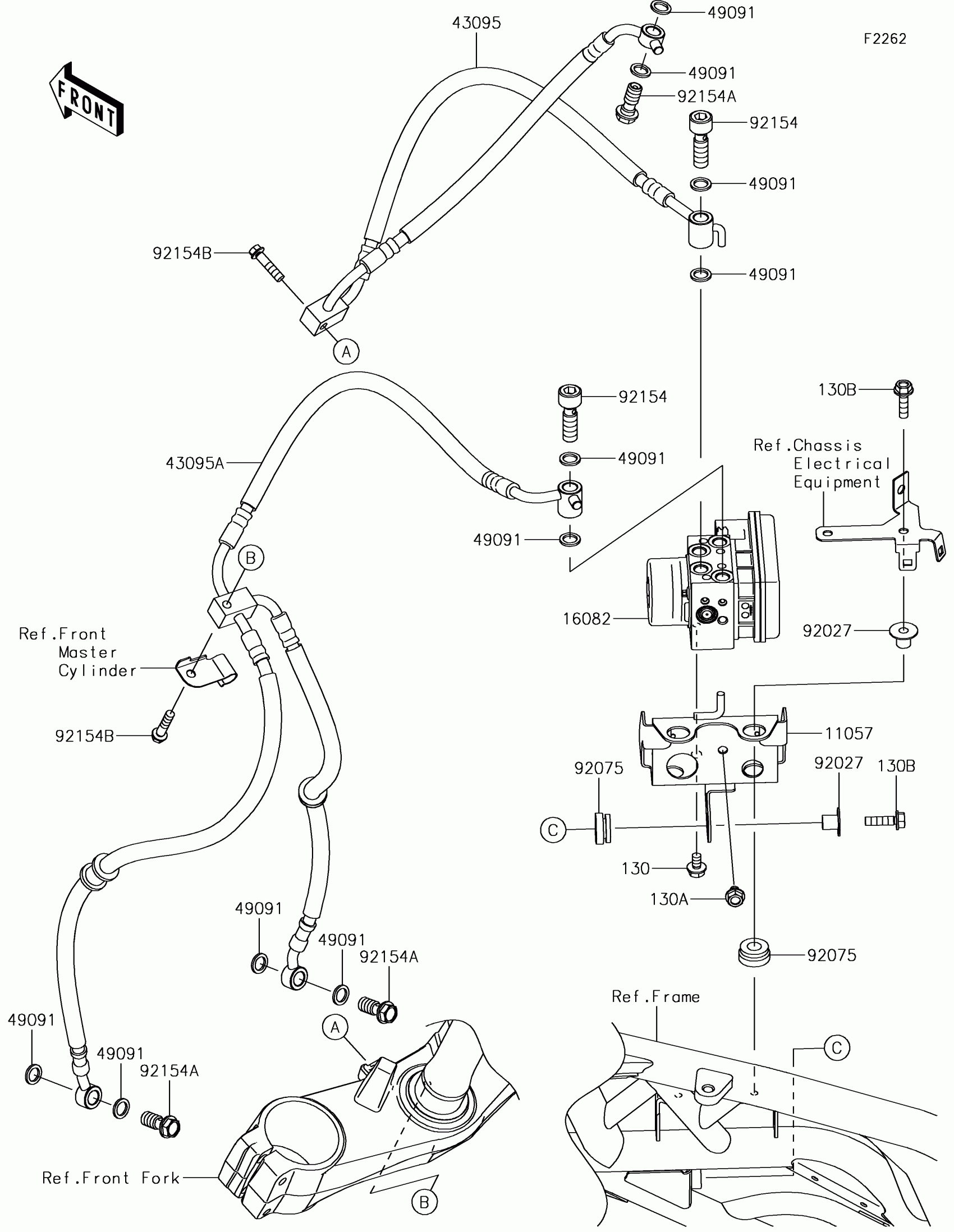

2018 Kawasaki Ninja H2™ SX Brake Piping Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,ABS UNIT

11057-1311

1

$55.80

In stock

16082

1

$1,671.67

In stock

43095

1

$190.57

In stock

43095A

1

$275.57

In stock

49091

1

$1.81

In stock

92027

COLLAR,L=12

92027-1062

1

$7.25

In stock

92075

DAMPER

92075-277

1

$2.20

In stock

92154

BOLT,BANJO,10X32.3

92154-1122

1

$30.70

In stock

92154A

BOLT,BANJO,10X23

92154-1712

1

$3.56

In stock

92154B

BOLT,FLANGED,6X25

92154-1849

1

$1.81

In stock

130

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock

130A

BOLT-FLANGED,6X8

130BB0608

1

$5.31

In stock

130B

BOLT-FLANGED,6X22

130BB0622

1

$2.92

In stock
