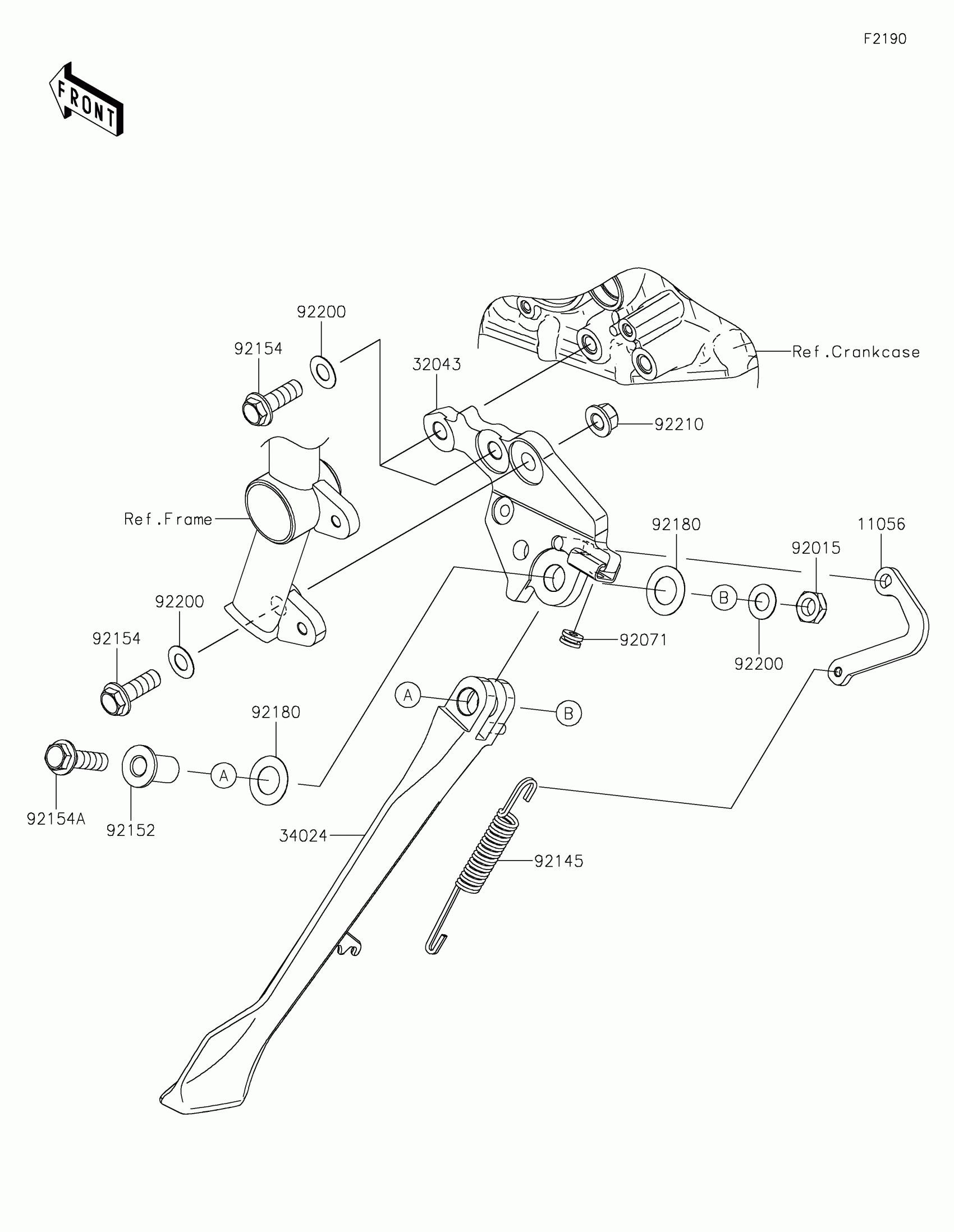

Kawasaki NINJA H2®R ABS Stand(s) Diagram

Description

Price

11056

BRACKET,LINK

11056-4484

$14.36

32043

BRACKET-STAND

32043-0609

$93.58

34024

STAND-SIDE

34024-0135

$195.86

92015

NUT,LOCK,10MM,BLACK

92015-1188

$4.67

92071

GROMMET,1.8X12X6

92071-2126

$1.39

92145

SPRING,SIDE STAND

92145-1639

$19.69

92152

COLLAR,10.2X24X27.6

92152-1951

$40.60

92154

BOLT,FLANGED,10X30

92154-1645

$7.24

92154A

BOLT,FLANGED,10X35

92154-1808

$7.47

92180

SHIM,16X28X0.4

92180-0812

$11.22

92200

WASHER,10.2X20X0.5

92200-1732

$9.14

92210

NUT,LOCK,FLANGED,10MM

92210-1139

$2.90
