2025 Kawasaki Ninja H2®R ABS Ignition Switch/locks/reflectors Diagram

← All diagrams

Find the part on the Ignition Switch/locks/reflectors diagram for your 2025 Kawasaki Ninja H2®R ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

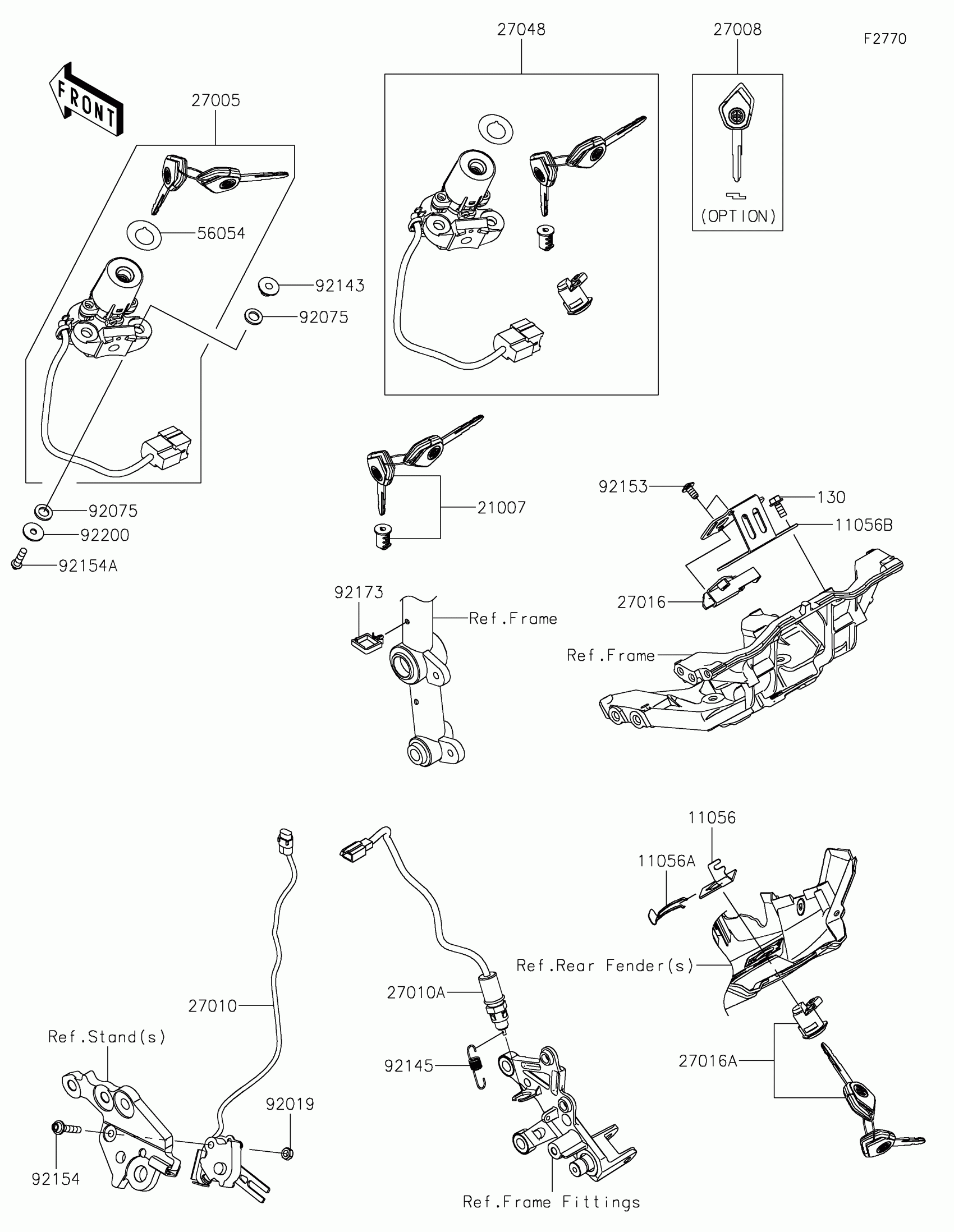

2025 Kawasaki Ninja H2®R ABS Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET

11056-0237

1

$3.50

In stock

11056A

BRACKET,CLASP

11056-0238

1

$4.75

In stock

11056B

BRACKET,SEAT LOCK

11056-7045

1
Out of stock

21007

ROTOR,LOCK,TANK CAP

21007-5079

1
Out of stock

27005

SWITCH-ASSY-IGNITION

27005-0603

1
Out of stock

27008

KEY-LOCK,BLANK

27008-0590

1
Out of stock

27010

SWITCH,SIDE STAND

27010-0825

1
Out of stock

27010A

SWITCH,STOP

27010-0836

1
Out of stock

27016

LOCK-ASSY,SEAT STRIKER

27016-1115

1
Out of stock

27016A

LOCK-ASSY,SEAT

27016-5389

1
Out of stock

27048

SWITCH-ASSY

27048-5056

1
Out of stock

56054

MARK,IGNITION

56054-1596

1
Out of stock

92019

NUT,LOCK,6MM

92019-008

1
Out of stock

92075

DAMPER

92075-1564

1
Out of stock

92143

COLLAR,L=9.6

92143-1016

1
Out of stock

92145

SPRING

92145-1884

1
Out of stock

92153

BOLT,SOCKET,6X12

92153-1617

1
Out of stock

92154

BOLT,SOCKET,6X30

92154-1736

1
Out of stock

92154A

BOLT,TORX,6X22

92154-1858

1
Out of stock

92173

CLAMP

92173-1513

1
Out of stock

92200

WASHER,6X20X1.6

92200-0212

1
Out of stock

130

BOLT-FLANGED,6X14

130CB0614

1

$1.95

In stock
