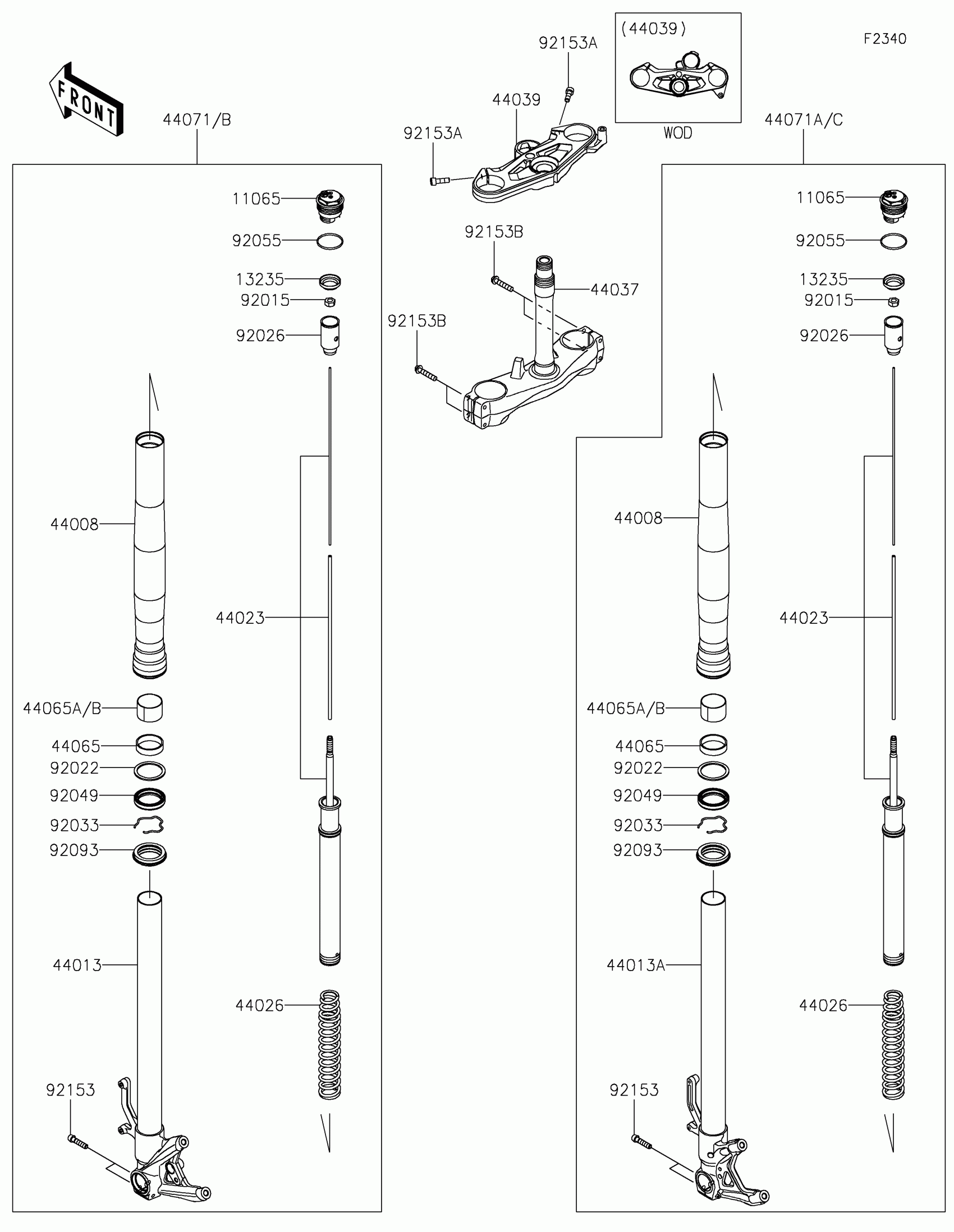

Kawasaki NINJA H2®R ABS Front Fork Diagram

#

Description
Price

11065

CAP,G.B.GREEN

11065-0924-50Y

$242.27

13235

GUIDE-COMP

13235-0011

$12.36

44008

PIPE-FORK OUTER,GRAY

44008-0079-11G

$488.35

44013

PIPE-FORK INNER,LH

44013-0245

$947.73

44013A

PIPE-FORK INNER,RH

44013-0246

$947.73

44023

CYLINDER-SET-FORK

44023-0132

$507.00

44026

SPRING-FRONT FORK

44026-0199

$129.83

44037

HOLDER-FORK UNDER

44037-0153

$818.16

44039

HOLDER-FORK UPPER,M.F.S.BLACK

44039-0149-46R

$427.41

44065

BUSHING-FRONT FORK,SLIDE

44065-0056

$16.99

44065A

BUSHING-FRONT FORK

44065-0064

$25.00

44065B

BUSHING-FRONT FORK

44065-0079

$24.31

44071

DAMPER-ASSY,FORK,LH,GRAY

44071-1288-50K

$1,502.28

44071A

DAMPER-ASSY,FORK,RH,GRAY

44071-1289-50K

$1,523.30

44071B

DAMPER-ASSY,FORK,LH,GRAY

44071-1666-50K

$1,446.53

44071C

DAMPER-ASSY,FORK,RH,GRAY

44071-1667-50K

$1,466.74

92015

NUT

92015-1795

$4.85

92022

WASHER

92022-1299

$6.55

92026

SPACER

92026-0805

$21.31

92033

RING-SNAP

92033-1077

$3.78

92049

SEAL-OIL

92049-0072

$21.43

92055

RING-O

92055-0145

$2.10

92093

SEAL,DUST

92093-0058

$17.85

92153

BOLT,SOCKET,8X35

92153-1472

$7.27

92153A

BOLT,SOCKET,8X25

92153-1625

$3.54

92153B

BOLT,FLANGED,8X40

92153-1884

$7.84
