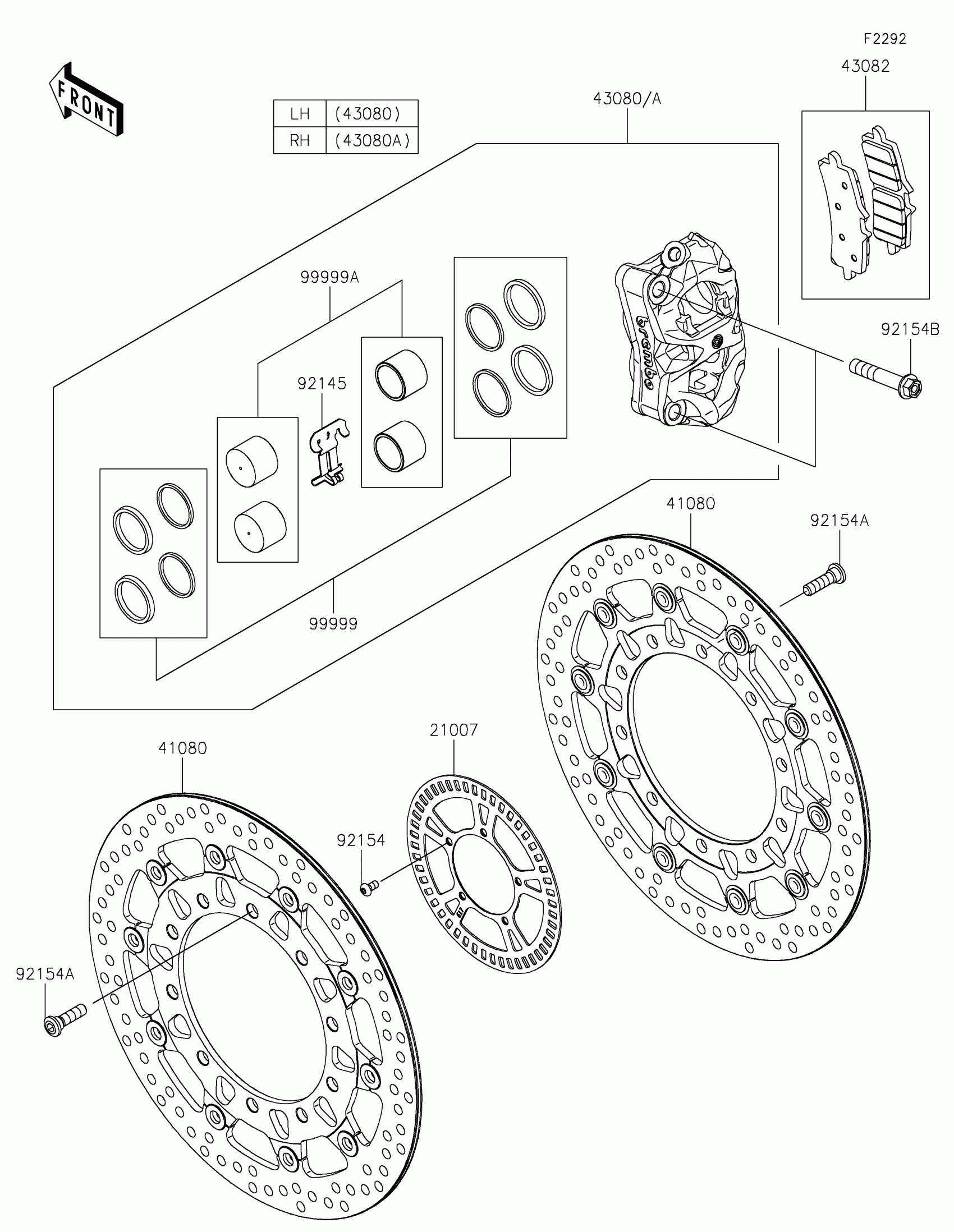

2025 Kawasaki Ninja H2®R ABS Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 2025 Kawasaki Ninja H2®R ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Ninja H2®R ABS Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21007

ROTOR,SENSOR,FR

21007-0617

1
Out of stock

41080

DISC,FR,330MM,BLACK+DISK BLACK

41080-0635-18U

1
Out of stock

43080

CALIPER-SUB-ASSY,FR,LH

43080-0227

1
Out of stock

43080A

CALIPER-SUB-ASSY,FR,RH

43080-0228

1
Out of stock

43082

PAD-ASSY-BRAKE

43082-0190

1
Out of stock

92145

SPRING

92145-1892

1
Out of stock

92154

BOLT,SOCKET,5X10

92154-1292

1
Out of stock

92154A

BOLT,SOCKET,8X30

92154-1723

1
Out of stock

92154B

BOLT,FLANGED,10X55

92154-3894

1
Out of stock

99999

KIT.,DUST SEAL

99999-0557

1
Out of stock

99999A

KIT.,CALIPER PISTON

99999-0698

1
Out of stock
