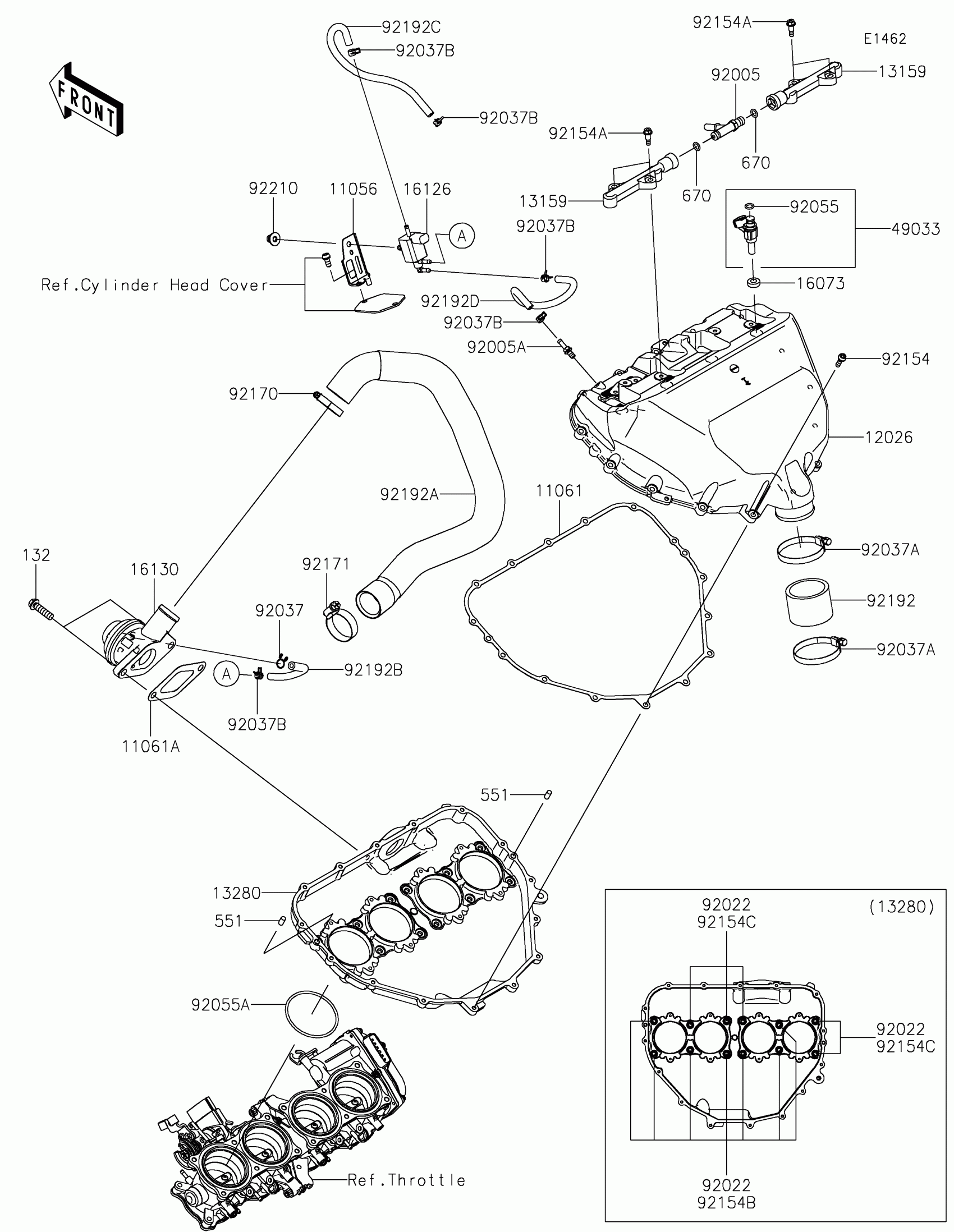

Kawasaki NINJA H2®R ABS Air Chamber Diagram

#

Description
Price

11056

BRACKET,SOLENOID VALVE

11056-4452

Unavailable

11061

GASKET,CHAMBER

11061-0949

$32.49

11061A

GASKET,BLOWOFF VALVE

11061-0950

$3.58

12026

CHAMBER,INTAKE

12026-0012

$653.24

13159

CONNECTOR

13159-0016

$22.86

13280

HOLDER,CHAMBER

13280-0801

$284.04

16073

INSULATOR

16073-0129

$4.53

16126

VALVE,SOLENOID

16126-0751

$82.35

16130

VALVE-ASSY-RELIEF,BLOWOFF

16130-0004

$478.76

49033

NOZZLE-INJECTION

49033-0035

$135.75

92005

FITTING

92005-0125

$10.88

92005A

FITTING

92005-0826

$9.86

92022

WASHER,5.5X10.5X0.8

92022-037

$2.99

92037

CLAMP,TUBE

92037-147

$5.61

92037A

CLAMP,RESERVE TANK

92037-1586

$11.90

92037B

CLAMP,7.8MM

92037-2116

$1.24

92055

RING-O,INJECTION NOZZLE

92055-0124

$2.09

92055A

RING-O,65.8X3

92055-0815

$8.91

92154

BOLT,SOCKET,5X18

92154-1450

$1.10

92154A

BOLT,SHOULDER,5X18

92154-1764

$2.95

92154B

BOLT,FLANGED,5X14

92154-3884

$1.77

92154C

BOLT,FLANGED,5X95

92154-3886

$7.64

92170

CLAMP

92170-1036

$8.51

92171

CLAMP

92171-0058

$9.42

92192

TUBE,DIFFUSER

92192-1415

$61.25

92192A

TUBE,BLOWOFF VALVE-AIR FILTER

92192-1416

$120.01

92192B

TUBE,SOLENOID-BLOWOFF VALVE

92192-1417

$3.17

92192C

TUBE,SOLENOID-THROTTLE BODY

92192-1418

$5.61

92192D

TUBE,SOLENOID-CHAMBER

92192-1419

$5.81

92210

NUT,CAP,6MM

92210-0170

$2.36

132

BOLT-FLANGED-SMALL,8X30

132BC0830

$2.98

551

PIN-DOWEL,6X12

551A0612

$0.78

670

O RING,8MM

670E1508

$1.32
