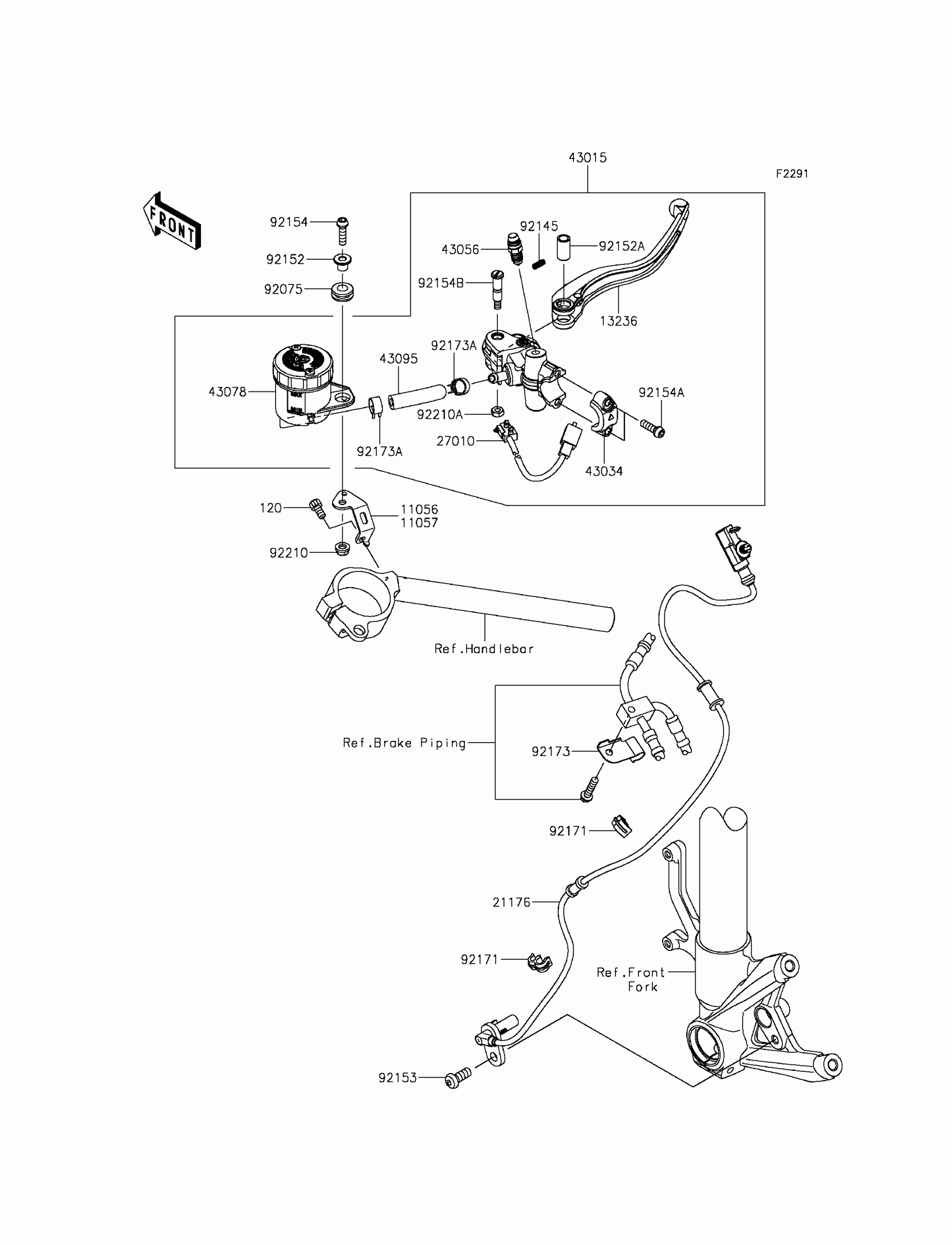

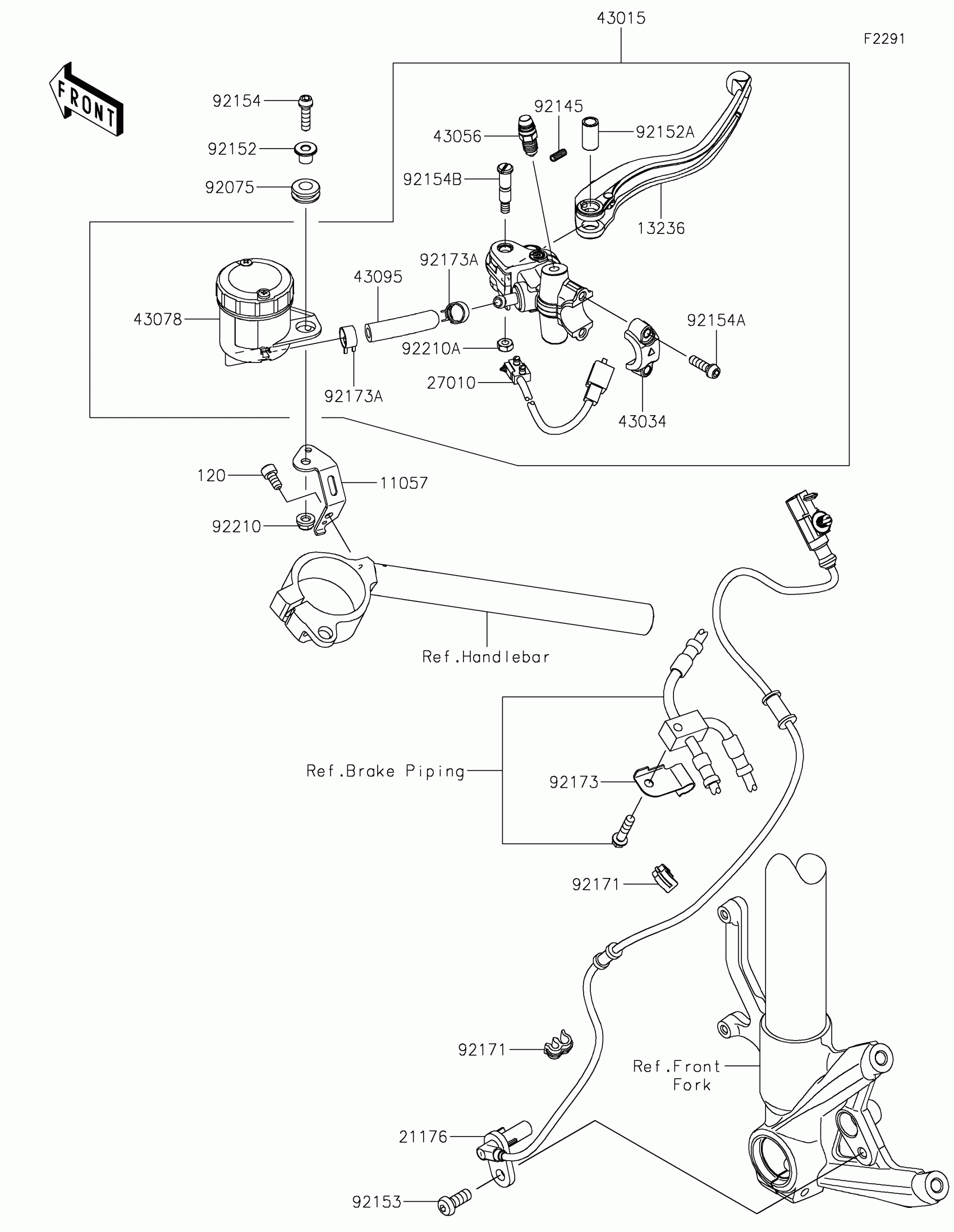

Kawasaki NINJA H2™ Front Master Cylinder Diagram

Description

Price

120

BOLT-SOCKET,6X12

120CB0612

$2.05

11057

BRACKET,RESERVOIR TANK

11057-0039

$5.66

13236

LEVER-COMP,BRAKE

13236-0770

$97.82

21176

SENSOR,WHEEL SPEED,FR

21176-0792

$110.68

27010

SWITCH,STOP

27010-0823

$84.38

43015

CYLINDER-ASSY-MASTER,FR

43015-0617

$446.54

43034

HOLDER-BRAKE

43034-0121

Unavailable

43056

BREATHER-BRAKE

43056-0012

$24.76

43078

RESERVOIR

43078-0577

$29.79

43095

HOSE-BRAKE

43095-0908

$16.39

92075

DAMPER

92075-1028

$3.57

92145

SPRING

92145-1683

$2.63

92152

COLLAR,6X16X10.6

92152-2110

$22.61

92152A

COLLAR,LEVER

92152-2151

$8.75

92153

BOLT,SOCKET,8X20

92153-0912

$1.85

92154

BOLT,SOCKET,6X22

92154-1456

$1.32

92154A

BOLT,SOCKET,6X20

92154-1644

$1.77

92154B

BOLT,LEVER

92154-1809

$11.27

92171

CLAMP

92171-0921

$4.14

92173

CLAMP

92173-0086

$4.46

92173A

CLAMP,HOSE

92173-1498

$1.88

92210

NUT,6MM

92210-0991

$5.66

92210A

NUT,U

92210-1424

$1.88
