2025 Kawasaki Ninja H2® ABS Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2025 Kawasaki Ninja H2® ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

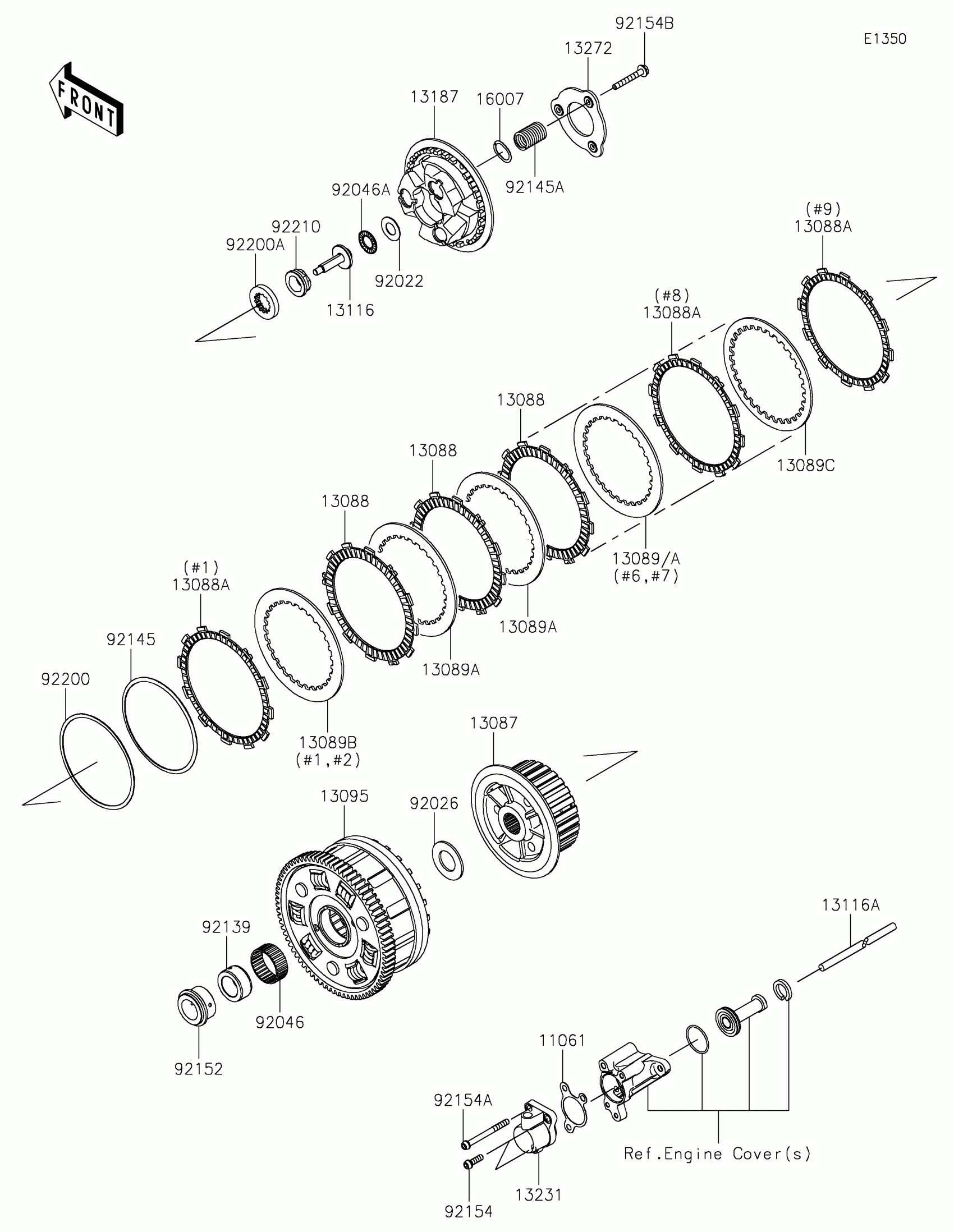

2025 Kawasaki Ninja H2® ABS Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,CLUTCH RELEASE

11061-1228

1
Out of stock

13087

HUB-CLUTCH

13087-0579

1
Out of stock

13088

PLATE-FRICTION

13088-0575

1
Out of stock

13088A

PLATE-FRICTION

13088-0576

1
Out of stock

13089

PLATE-CLUTCH,T=2.3

13089-0027

—
Out of stock

13089A

PLATE-CLUTCH,T=2.6

13089-0028

1
Out of stock

13089B

PLATE-CLUTCH,T=2.9

13089-0030

1
Out of stock

13089C

PLATE-CLUTCH,T=2.6

13089-0036

1
Out of stock

13095

HOUSING-COMP-CLUTCH

13095-0577

1

$755.36

In stock

13116

ROD-PUSH

13116-0732

1
Out of stock

13116A

ROD-PUSH

13116-0738

1
Out of stock

13187

PLATE-CLUTCH OPERATING

13187-0028

1
Out of stock

13231

RELEASE-ASSY-CLUTCH

13231-0012

1
Out of stock

13272

PLATE

13272-1303

1

$18.05

In stock

16007

SEAT-SPRING

16007-0736

1
Out of stock

92022

WASHER,15.1X29X1.0

92022-1463

1
Out of stock

92026

SPACER,25.5X47X2.5

92026-022

1
Out of stock

92046

BEARING-NEEDLE

92046-0041

1
Out of stock

92046A

BEARING-NEEDLE,AXK1102

92046-1052

1
Out of stock

92139

BUSHING,25X38X17.3

92139-0304

1
Out of stock

92145

SPRING

92145-1250

1
Out of stock

92145A

SPRING

92145-1700

1
Out of stock

92152

COLLAR

92152-0866

1
Out of stock

92154

BOLT,SOCKET,6X20

92154-1623

1
Out of stock

92154A

BOLT,SOCKET,6X65

92154-1624

1
Out of stock

92154B

BOLT,FLANGED,6X45

92154-1909

1
Out of stock

92200

WASHER,T=1.2

92200-1580

1
Out of stock

92200A

WASHER,TOOTHED,38.5X25X6.3

92200-1833

1
Out of stock

92210

NUT

92210-0397

1
Out of stock
