2024 Kawasaki Ninja® e-1 ABS Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 2024 Kawasaki Ninja® e-1 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

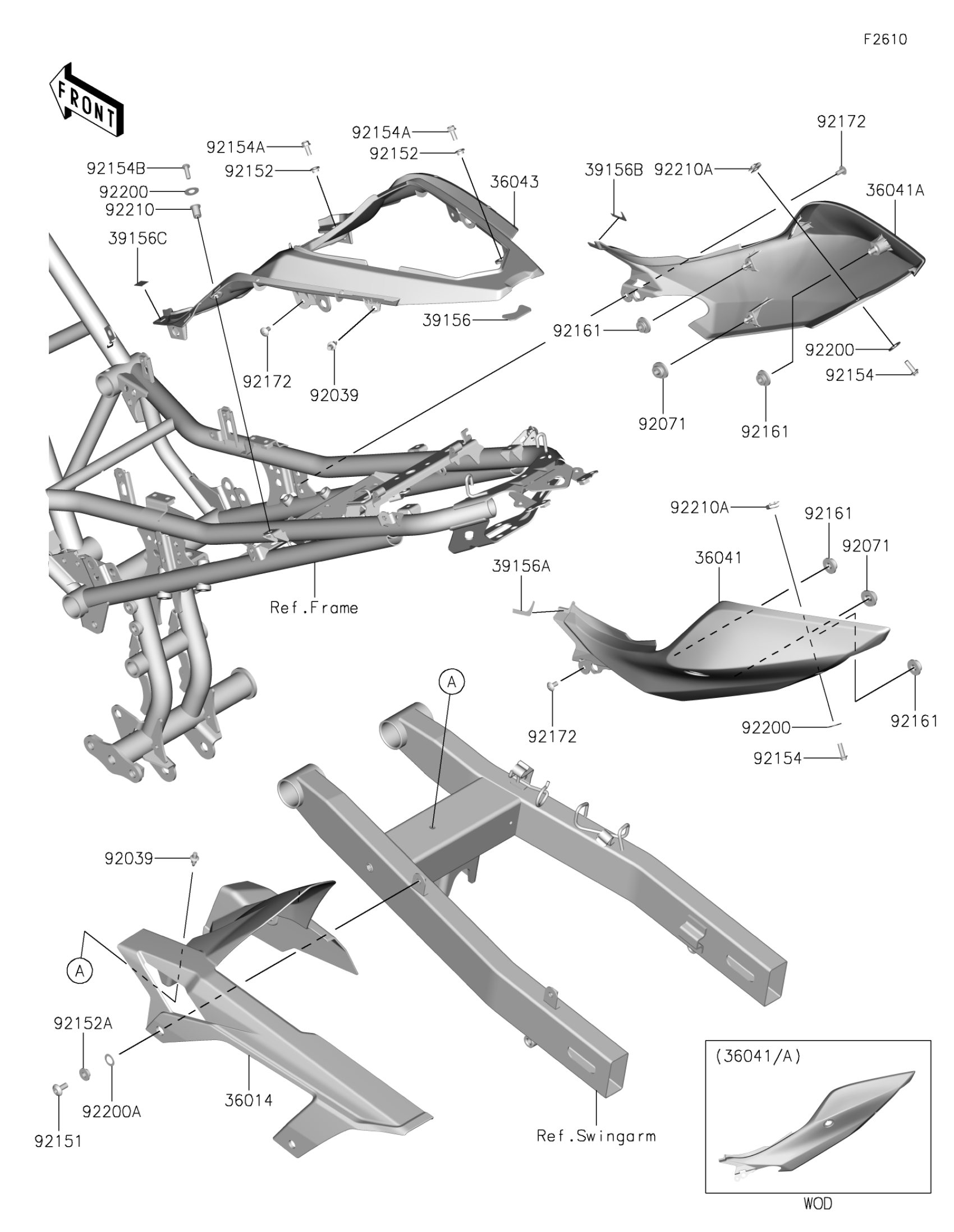

2024 Kawasaki Ninja® e-1 ABS Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36014

CASE-CHAIN

36014-0571

1

$34.36

In stock

36041

COVER-TAIL,LH,M.B.SILVER

36041-0037-63S

1

$66.93

In stock

36041A

COVER-TAIL,RH,M.B.SILVER

36041-0038-63S

1

$66.93

In stock

36043

1

$207.88

In stock

39156

PAD,19.4X34X2

39156-2218

1

$0.95

In stock

39156A

1

$0.95

In stock

39156B

1

$0.95

In stock

39156C

PAD,5X13

39156-2300

1

$0.50

In stock

92039

RIVET

92039-0060

1

$2.71

In stock

92071

GROMMET,20X24X7.5

92071-0766

1

$1.27

In stock

92151

BOLT,SOCKET,6X14

92151-1654

1

$1.56

In stock

92152

COLLAR,6X8X4.5

92152-2395

1

$1.10

In stock

92152A

COLLAR,6.5X10X5.9

92152-2486

1

$2.76

In stock

92154

BOLT,SOCKET,5X16

92154-0209

1

$2.25

In stock

92154A

BOLT,FLANGED,5X12

92154-2893

1

$0.69

In stock

92154B

BOLT,SOCKET,5X16

92154-3837

1

$1.10

In stock

92161

DAMPER

92161-1531

1

$2.44

In stock

92172

SCREW,5X10

92172-1090

1

$0.47

In stock

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

1
Out of stock

92200A

1

$0.80

In stock

92210

NUT,WELL,5MM

92210-0498

1
Out of stock

92210A

NUT

92210-0571

1
Out of stock
