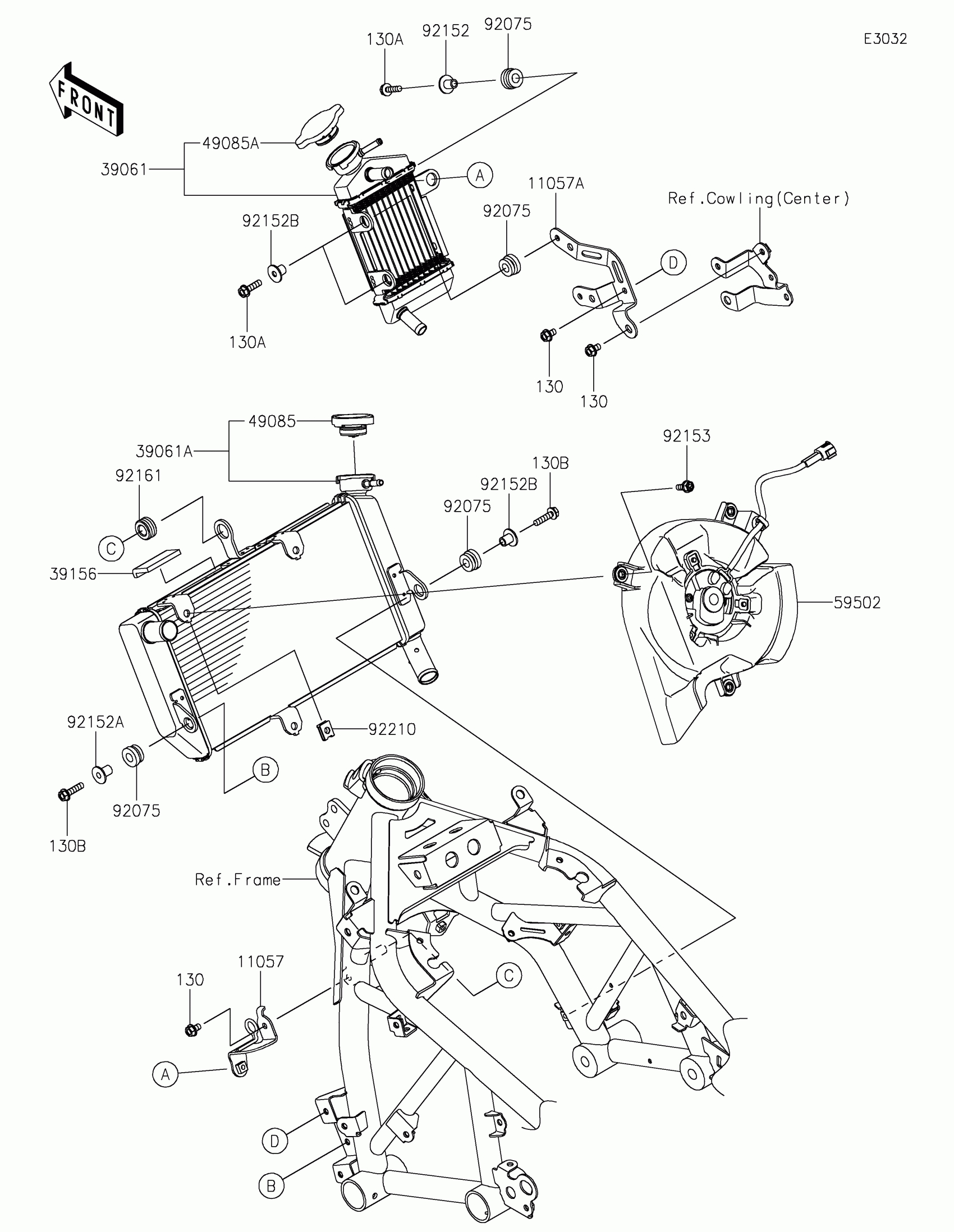

Kawasaki Ninja® 7 Hybrid Radiator Diagram

Description

Price

11057

BRACKET,RADIATOR TOP

11057-7940

$12.05

11057A

BRACKET,RADIATOR SIDE

11057-7941

$19.53

39061

RADIATOR-ASSY,MOTOR

39061-0856

$228.37

39061A

RADIATOR-ASSY,ENGINE

39061-0867

$668.62

39156

PAD,50X28X5

39156-2938

$4.07

49085

CAP-ASSY-PRESSURE

49085-0006

$44.67

49085A

CAP-ASSY-PRESSURE

49085-0020

$51.50

59502

FAN-ASSY

59502-0639

$360.00

92075

DAMPER,RUBBER

92075-1123

$3.81

92152

COLLAR,6.3X9.5X14.1

92152-1847

$5.66

92152A

COLLAR

92152-2721

$4.68

92152B

COLLAR

92152-2852

$3.12

92153

BOLT

92153-0531

$1.85

92161

DAMPER

92161-2080

$4.17

92210

NUT

92210-1323

$3.19

130

BOLT-FLANGED,6X10

130CA0610

$1.47

130A

BOLT-FLANGED,6X22

130CA0622

$1.90

130B

BOLT-FLANGED,6X25

130CA0625

$3.39
