2024 Kawasaki Ninja® 7 Hybrid Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2024 Kawasaki Ninja® 7 Hybrid, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

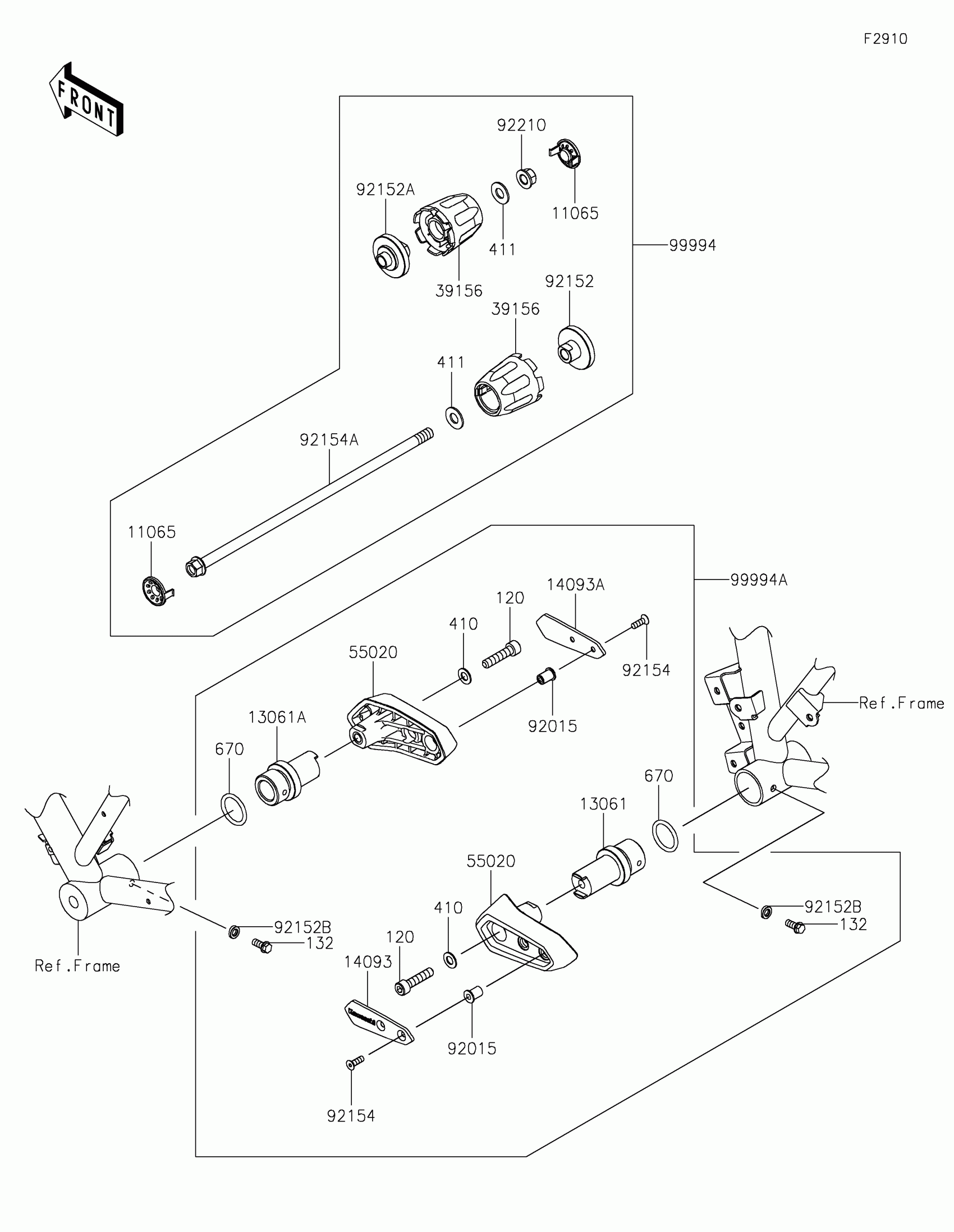

2024 Kawasaki Ninja® 7 Hybrid Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,B.SILVER

11065-1313-54N

1
Out of stock

13061

BOSS,LH

13061-2134

1
Out of stock

13061A

BOSS,RH

13061-2135

1
Out of stock

14093

COVER,SLIDER,LH

14093-0350

1
Out of stock

14093A

COVER,SLIDER,RH

14093-0351

1
Out of stock

39156

PAD,AXLE SLIDER

39156-2212

1

$60.42

In stock

55020

GUARD

55020-2411

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1
Out of stock

92152

COLLAR,LH

92152-2272

1
Out of stock

92152A

COLLAR,RH

92152-2273

1
Out of stock

92152B

COLLAR

92152-2645

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-1014

1
Out of stock

92154A

BOLT,FLANGED,10X310

92154-4229

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1139

1
Out of stock

99994

AXLE SLIDER,B.SILVER

99994-1542-54N

1
Out of stock

99994A

FRAME SLIDER

99994-1929

1
Out of stock

120

BOLT-SOCKET,8X35

120CA0835

1
Out of stock

132

1

$2.05

In stock

410

WASHER-PLAIN-SMALL,8MM

410AA0800

1
Out of stock

411

WASHER-PLAIN,10MM

411AA1000

1
Out of stock

670

O RING,26MM

670B3026

1
Out of stock
