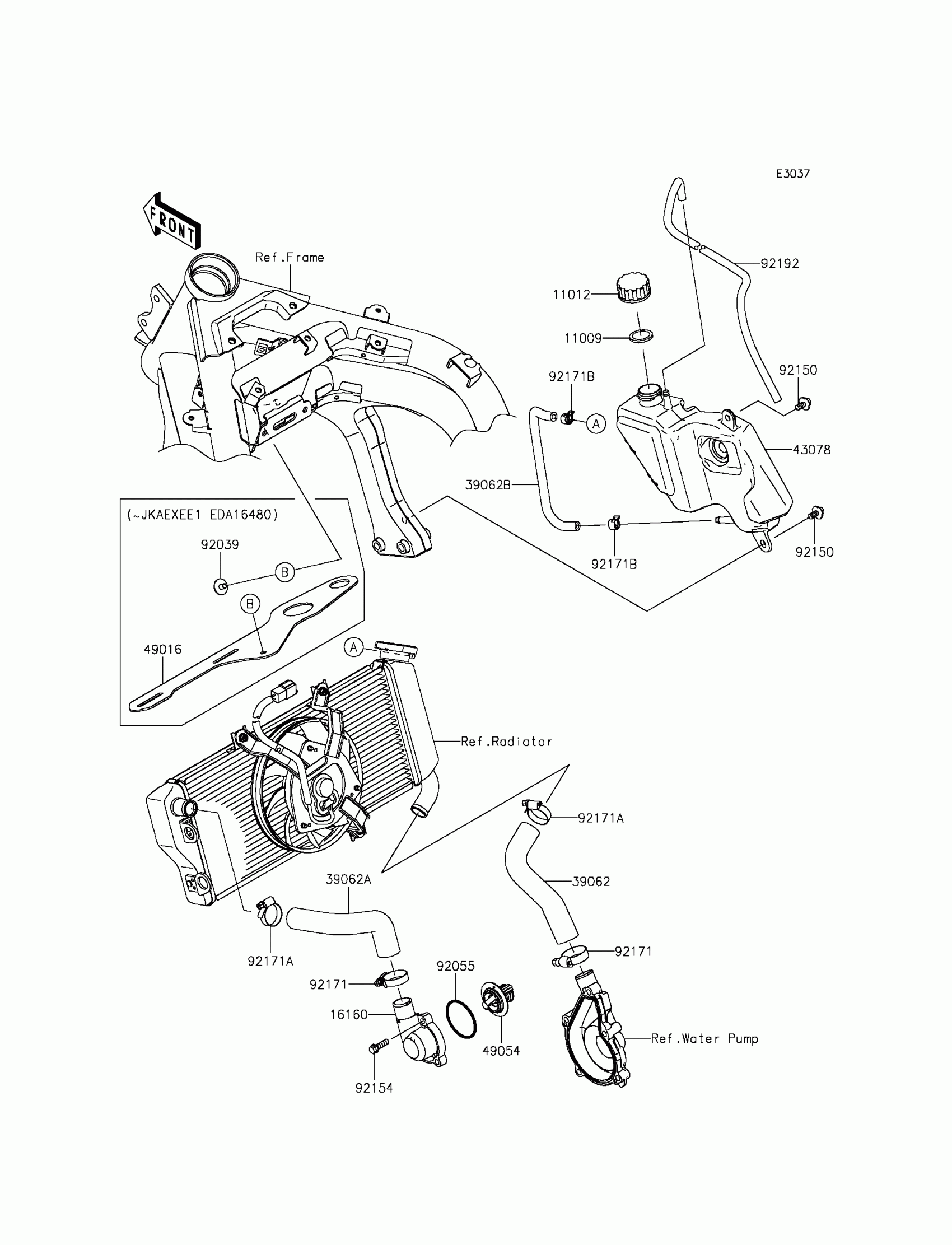

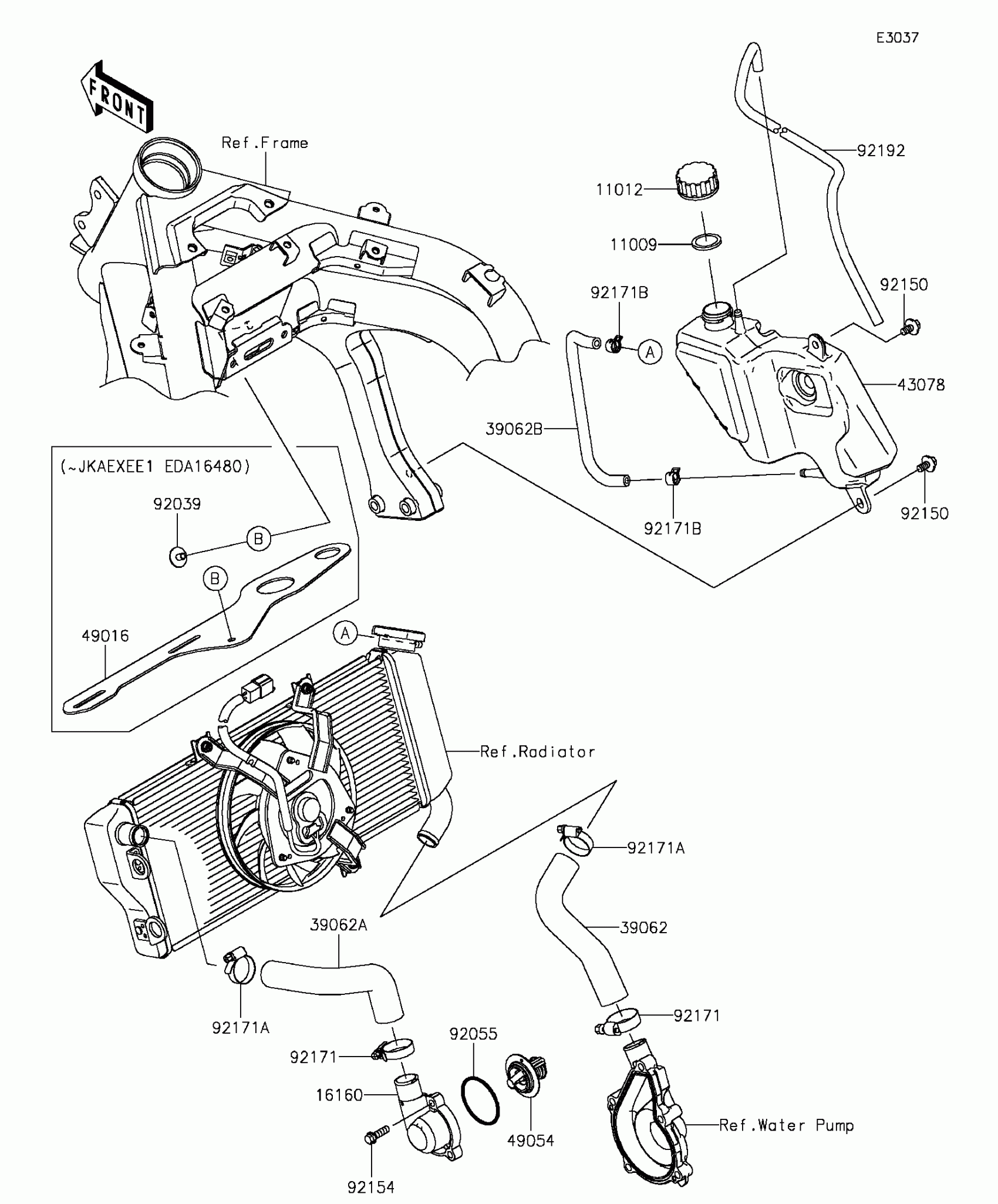

Kawasaki Ninja® 650 Water Pipe Diagram

Description

Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.25

11012

CAP

11012-1084

$1.31

16160

BODY,THERMO

16160-0181

Unavailable

39062

HOSE-COOLING,W.PUMP-RAD

39062-0265

$11.82

39062A

HOSE-COOLING,HEAD-RAD.

39062-0584

Unavailable

39062B

HOSE-COOLING,RAD.-RESERVOIR

39062-0588

$10.02

43078

RESERVOIR

43078-0553

$37.15

49054

THERMOSTAT

49054-0001

$27.83

92055

RING-O,44.7X2.4

92055-0160

$1.80

92150

BOLT,6X14

92150-1340

$4.02

92154

BOLT,FLANGED,6X20

92154-1778

$1.88

92171

CLAMP

92171-0261

$13.29

92171A

CLAMP

92171-0337

$7.84

92171B

CLAMP,10.5X8X0.7

92171-1992

$5.42

92192

TUBE,BREATHER

92192-1006

$10.58
