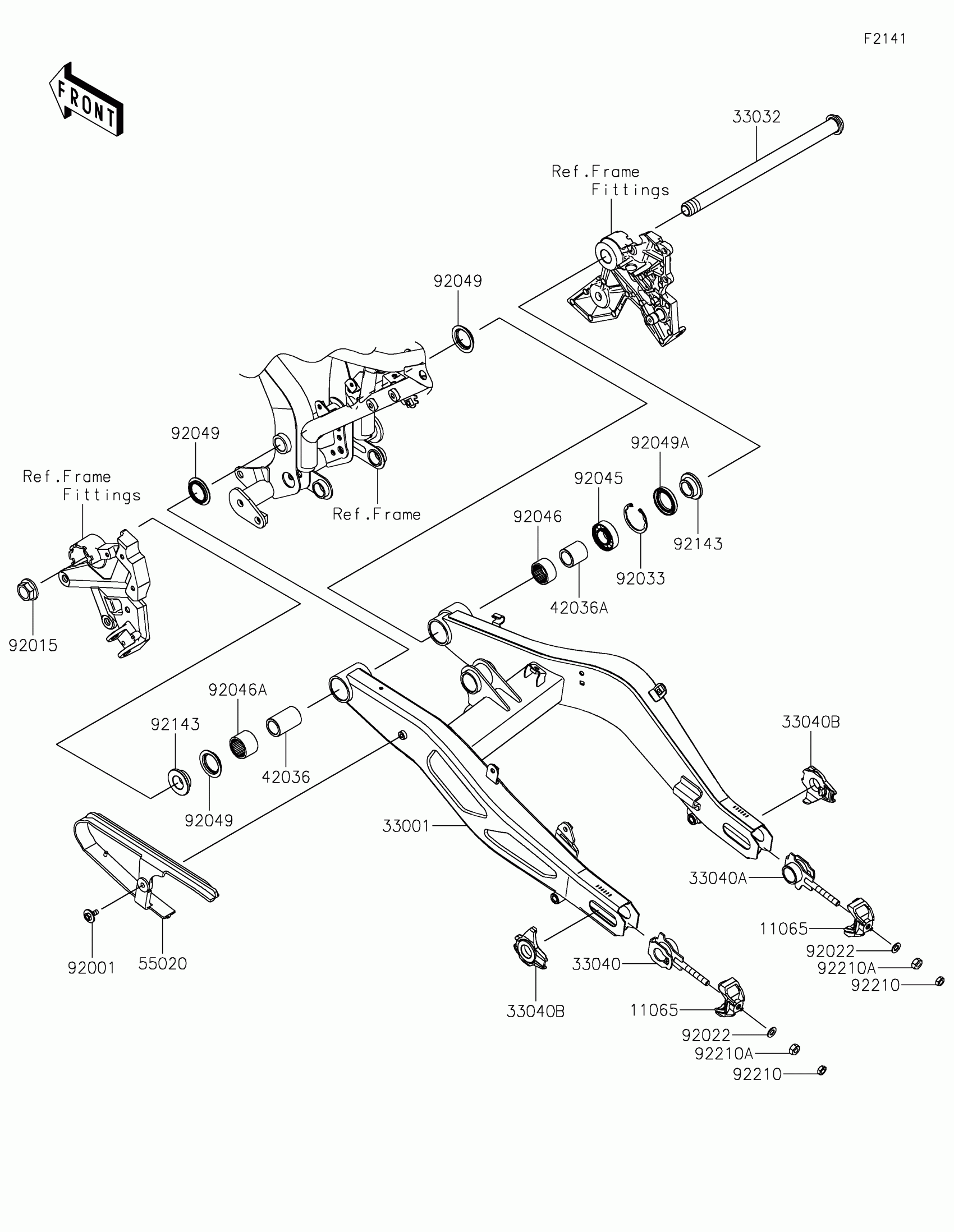

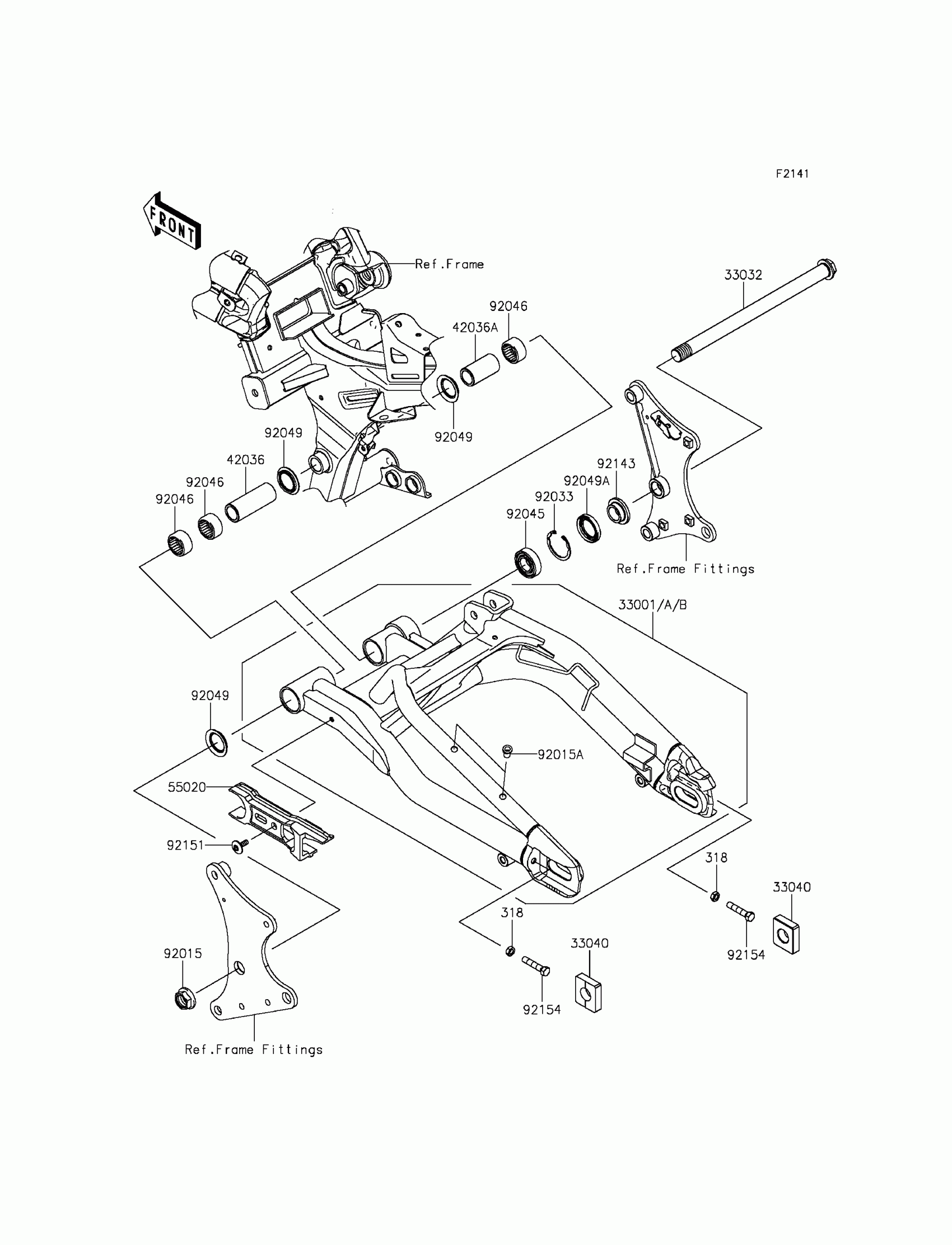

Kawasaki Ninja® 650 Swingarm Diagram

Description

Price

33001B

ARM-COMP-SWING,F.S.BLACK

33001-0586-18R

$594.76

33032

SHAFT-SWING ARM

33032-1142

$107.05

33040

ADJUSTER-CHAIN

33040-1109

$18.36

42036

SLEEVE,LH,20.1X28X75.8

42036-0706

$38.19

42036A

SLEEVE,RH,20.1X28X52.3

42036-0707

$30.70

55020

GUARD,CHAIN

55020-0722

$45.45

92015

NUT,FLANGED,20MM

92015-1724

$14.14

92015A

NUT,POP,6MM

92015-1759

$4.42

92033

RING-SNAP,42MM

92033-1041

$4.88

92045

BEARING-BALL,6004UL11

92045-0017

$11.39

92046

BEARING-NEEDLE,BM2824

92046-1202

$23.05

92049

SEAL-OIL

92049-0132

$7.45

92049A

SEAL-OIL

92049-0138

$9.10

92143

COLLAR,SWING ARM,RH,L=12.5

92143-1727

$18.34

92151

BOLT,SOCKET,6X18

92151-1149

$6.11

92154

BOLT,8X40

92154-0837

$3.20

318

NUT-HEX-SMALL,8MM

318BA0800

$1.20
