Description

Price

13107

SHAFT,IDLE GEAR

13107-1106

$15.76

13193

CLUTCH-ASSY-ONEWAY

13193-0006

$128.14

13280

HOLDER

13280-0710

$13.75

16085

GEAR,67T

16085-0076

$119.83

16085A

GEAR,IDLE,28T

16085-0148

$106.14

21039

BRUSH,CARBON

21039-0004

$120.17

21040

SPRING-BRUSH

21040-0003

$9.47

21163

STARTER-ELECTRIC

21163-0040

$511.88

26006

FUSE,BLADE,30A,GREEN

26006-1006

$4.39

26011

WIRE-LEAD

26011-0761

$33.16

27010

SWITCH,MAGNETIC

27010-0709

$138.72

39076

LIMITER,16T&66T

39076-0023

$120.65

92015

NUT,STARTER MOTOR

92015-1476

$3.85

92026

SPACER,29.1X47.5X1.2

92026-087

$9.58

92055

RING-O

92055-1276

$7.54

92055A

RING-O,4.5X2.0

92055-1370

$4.17

92055B

RING-O,STARTER MOTOR

92055-1381

$9.58

92071

GROMMET

92071-0024

$9.86

92153

BOLT

92153-1783

$11.42

92154

BOLT,FLANGED,6X22

92154-0504

$1.43

92210

NUT,6MM

92210-0188

$1.81

120

BOLT-SOCKET,6X10

120CB0610

$2.05

461

WASHER-SPRING,6MM

461DB0600

$0.57

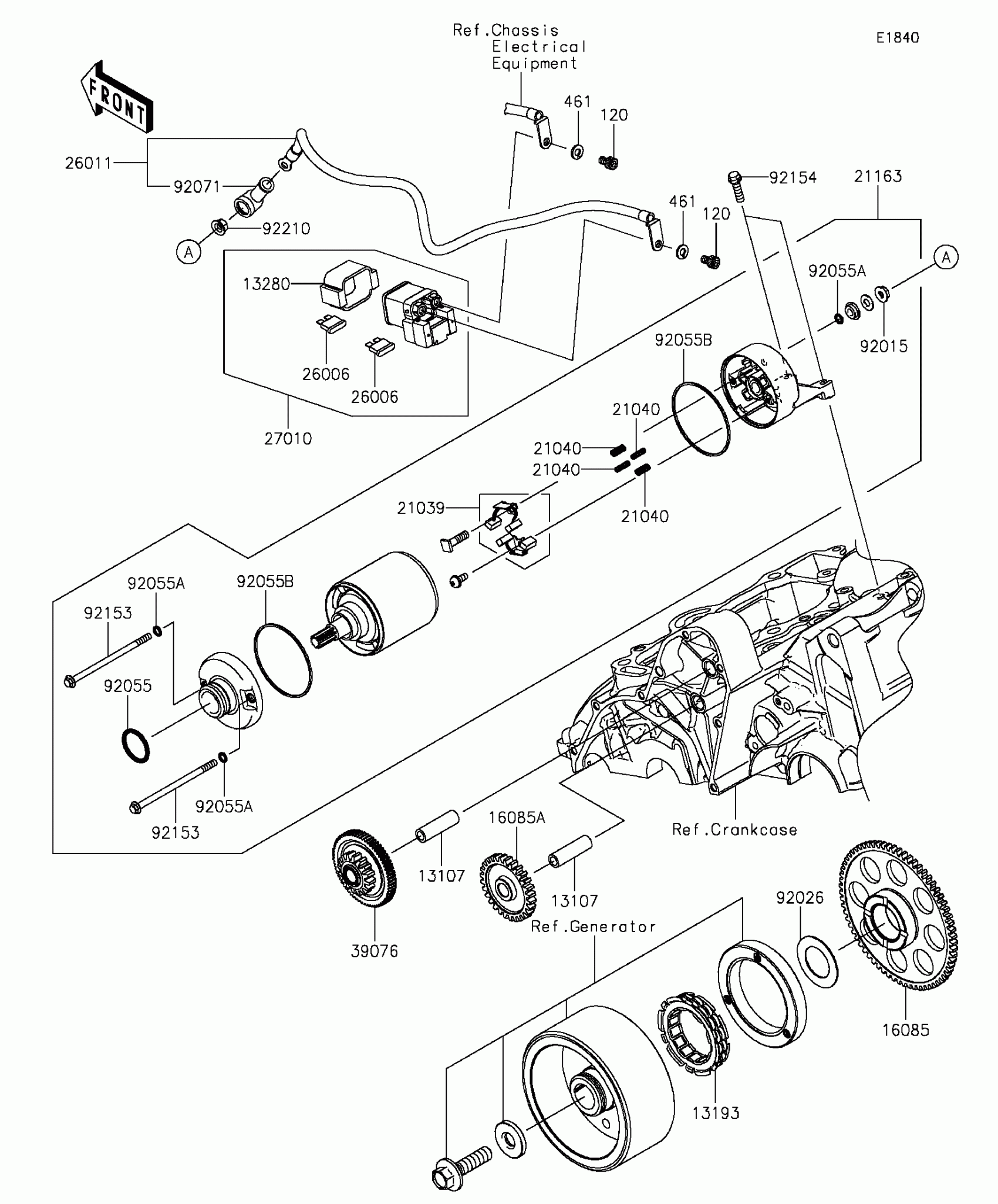

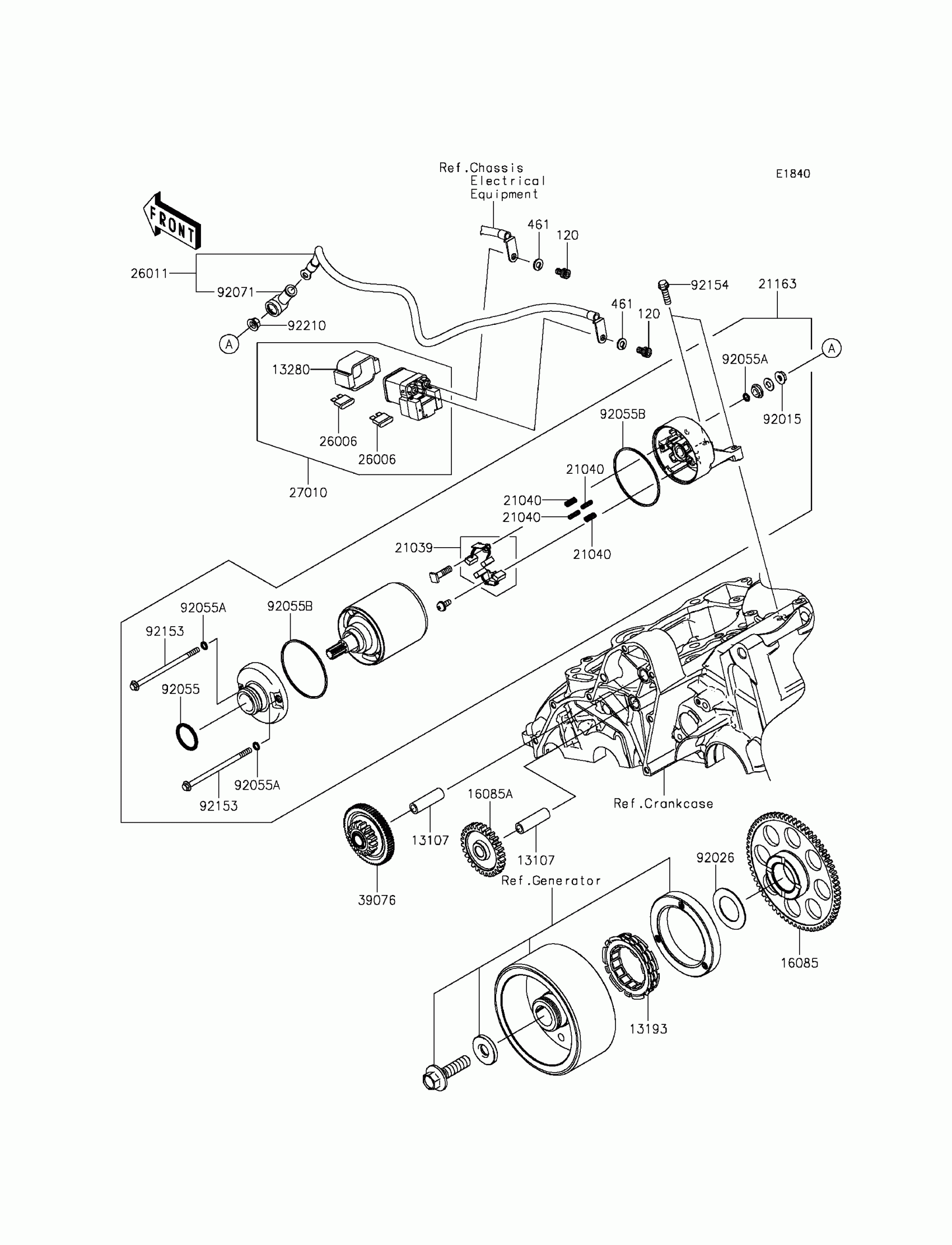

Kawasaki Ninja® 650 Starter Motor Diagram
