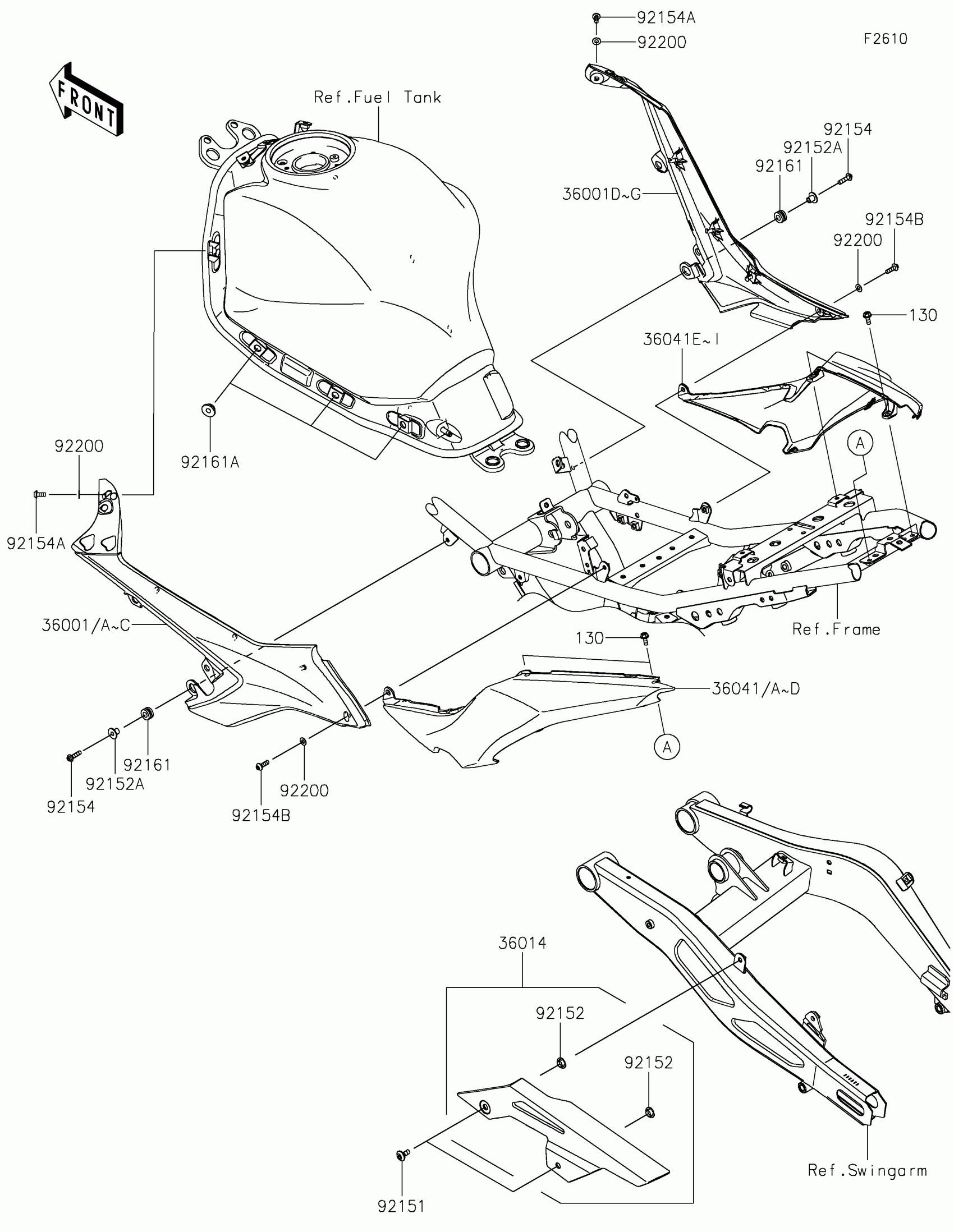

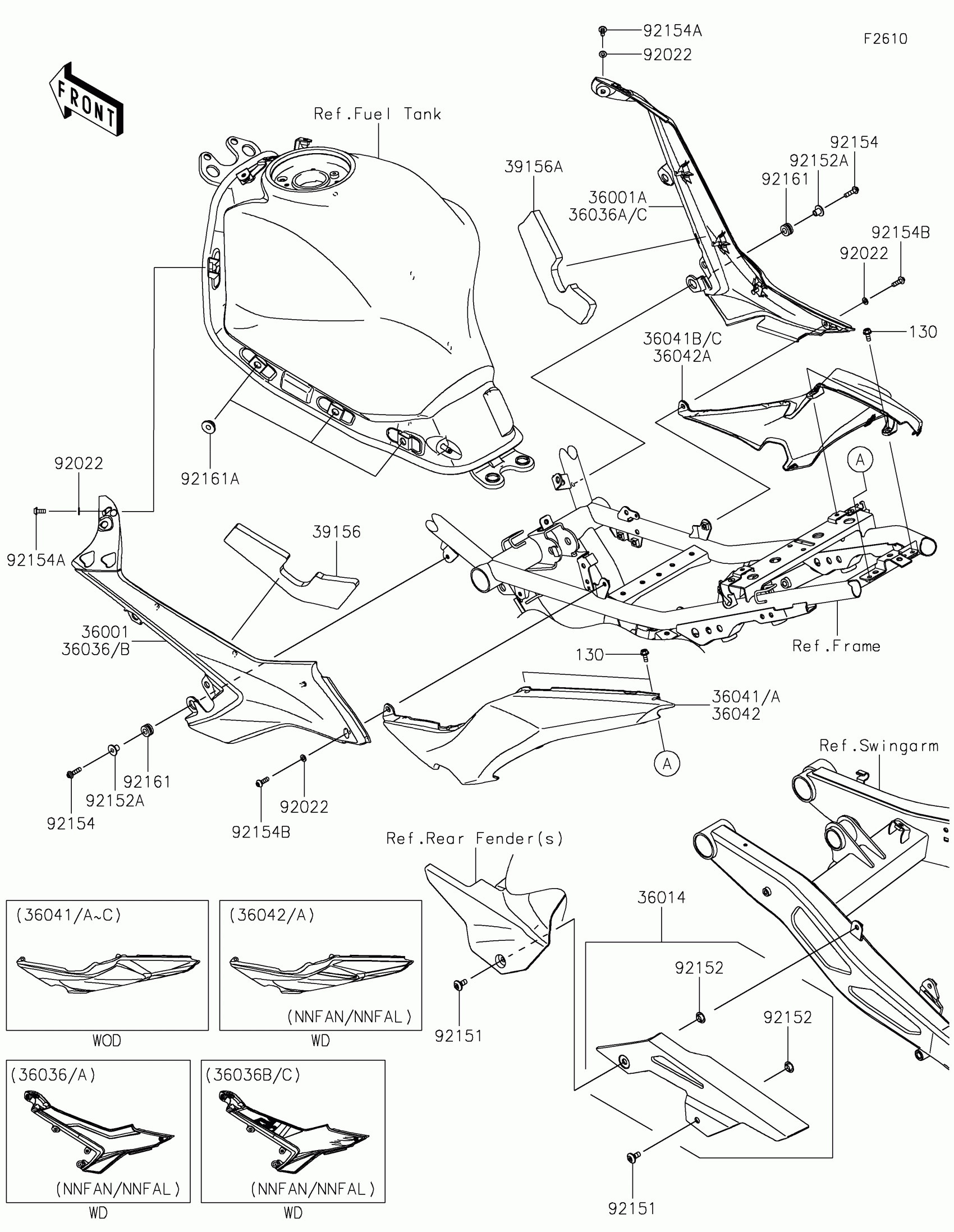

Kawasaki NINJA® 650 Side Covers/Chain Cover Diagram

Description

Price

130

BOLT-FLANGED,5X12

130BA0512

$1.80

36001A

COVER-SIDE,LH,M.S.BLACK

36001-0650-660

$29.21

36001E

COVER-SIDE,RH,M.S.BLACK

36001-0651-660

$29.21

36014

CASE-CHAIN

36014-0044

$13.74

36041C

COVER-TAIL,LH,M.S.BLACK

36041-0033-660

$77.00

36041H

COVER-TAIL,RH,M.S.BLACK

36041-0034-660

$77.00

92151

BOLT,SOCKET,6X14

92151-1654

$1.56

92152

COLLAR,8.8X11.2X4

92152-0909

$4.47

92152A

COLLAR

92152-1592

$2.44

92154

BOLT,SOCKET,5X20

92154-0210

$1.78

92154A

BOLT,SOCKET,5X12

92154-1421

$0.93

92154B

BOLT,SOCKET,5X16

92154-1701

$1.10

92161

DAMPER,8X16X8.6

92161-0685

$5.24

92161A

DAMPER,6X20X7.5

92161-1937

$1.38

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

$1.59
