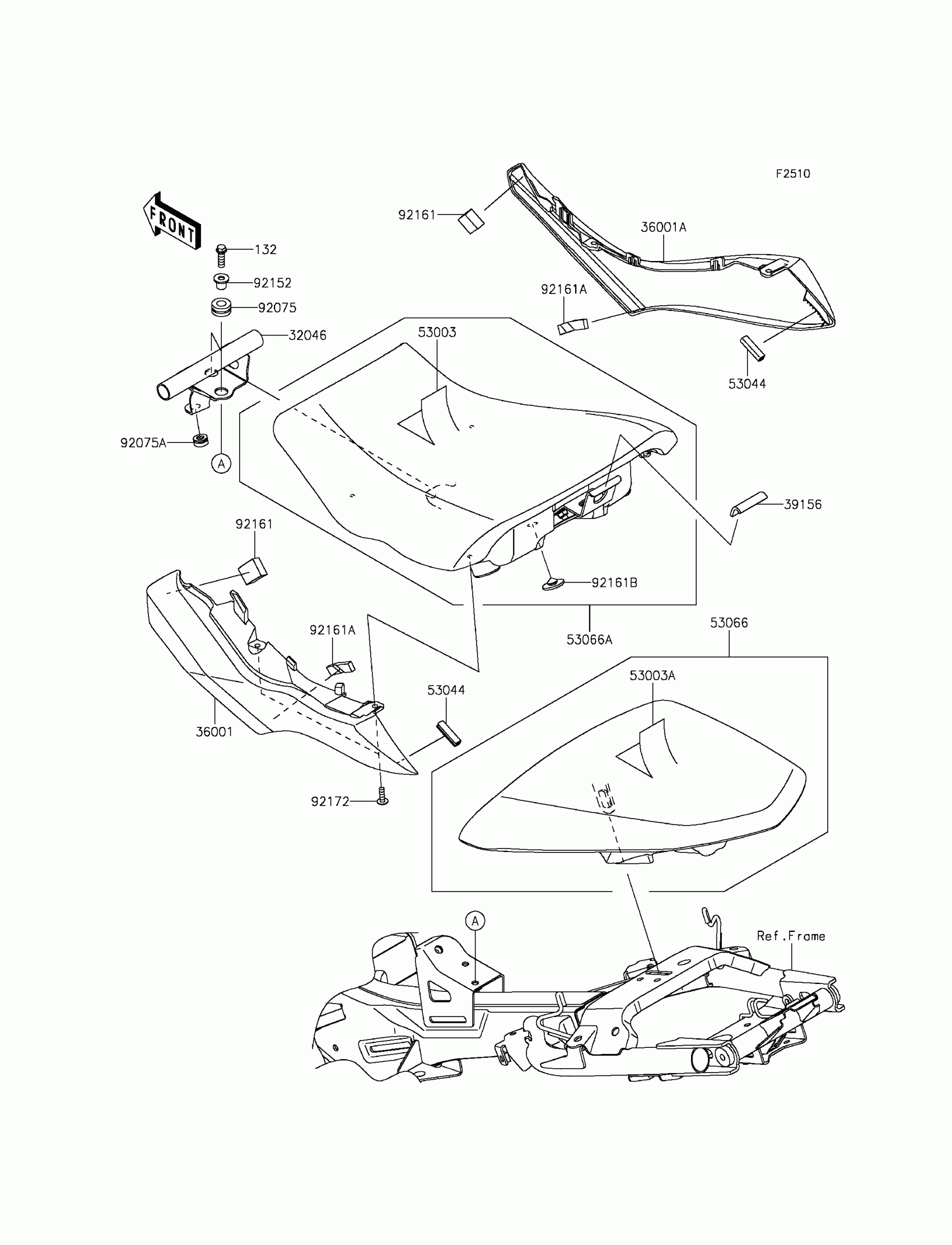

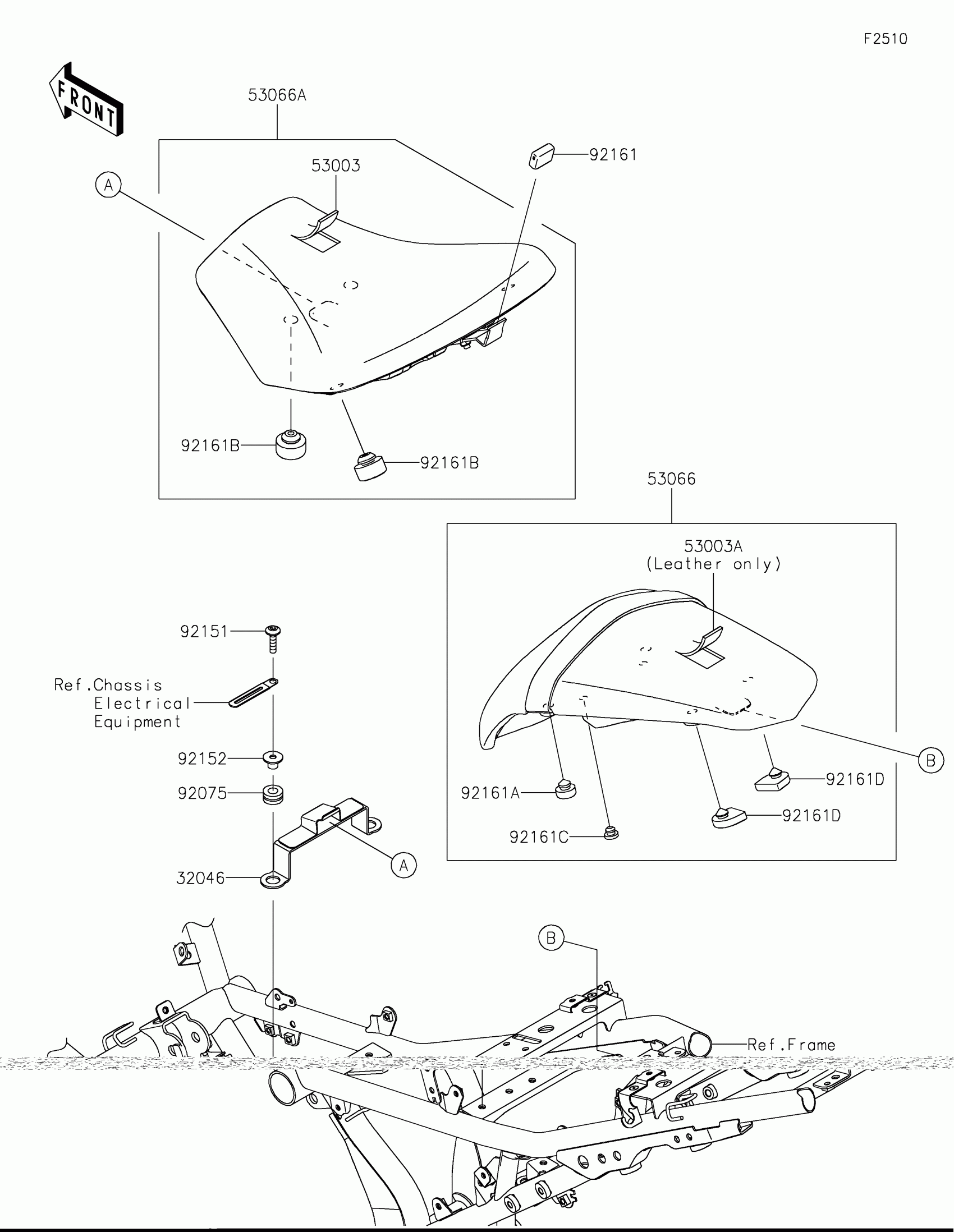

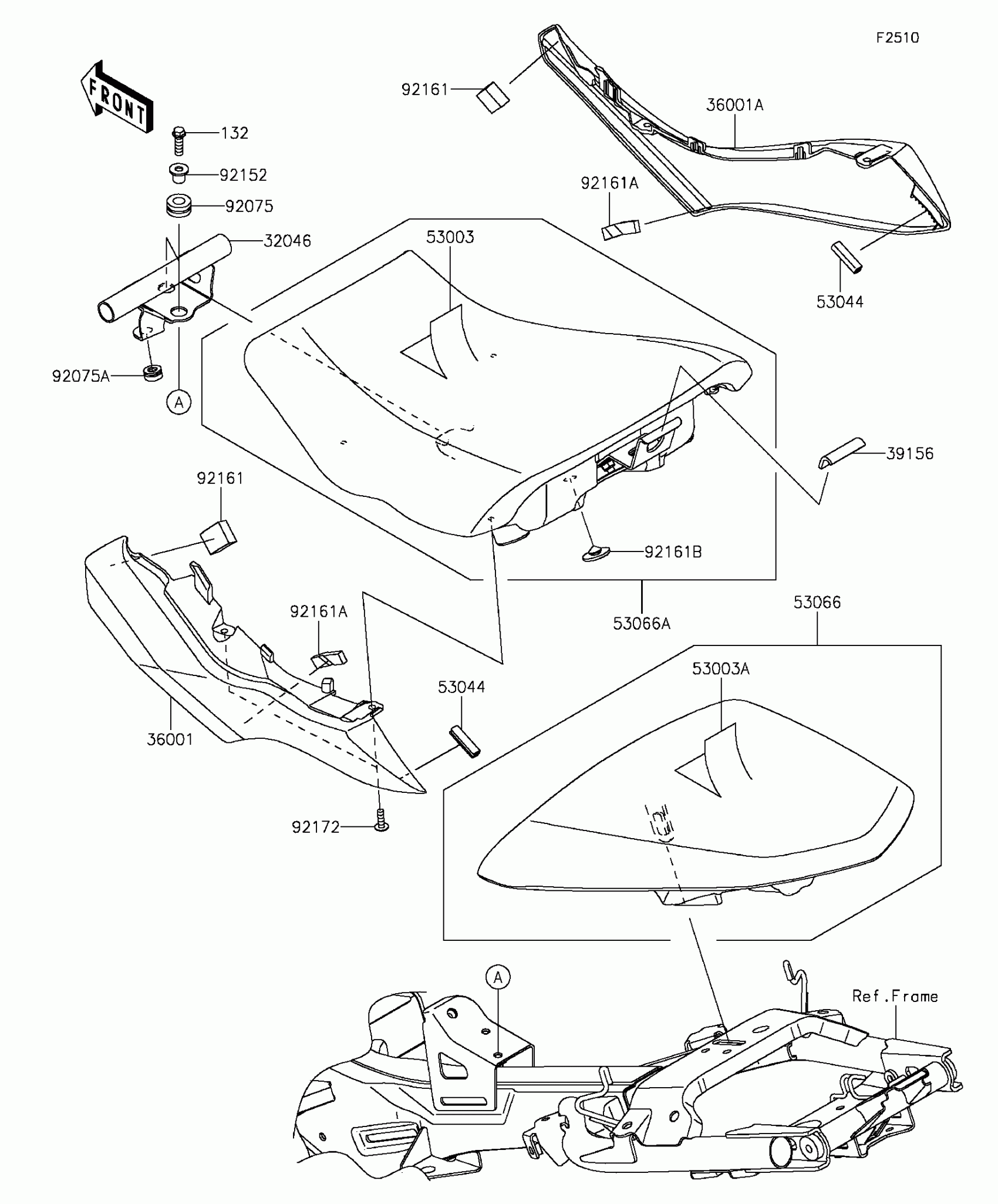

Kawasaki Ninja® 650 Seat Diagram

#

Description
Price

32046

BRACKET-SEAT

32046-0304

$14.19

36001

COVER-SIDE,LH

36001-0564

$43.53

36001A

COVER-SIDE,RH

36001-0565

$43.53

39156

PAD,20X40X3

39156-0831

$0.95

53003

LEATHER,FR SEAT,BLACK

53003-0307-MA

$80.06

53003A

LEATHER,RR SEAT,BLK+BAND BLK

53003-0315-12Y

$71.89

53044

TRIM,L=30

53044-0001

$2.29

53066

SEAT,RR,LEATHER BLK+BAND BLK

53066-0363-12Y

$177.94

53066A

SEAT-ASSY,FR,BLACK

53066-0365-MA

$209.64

92075

DAMPER

92075-1880

$1.24

92075A

DAMPER

92075-1986

$4.19

92152

COLLAR,6.8X10X11.6

92152-0977

$2.11

92161

DAMPER

92161-0718

$1.17

92161A

DAMPER,TANK COVER

92161-0804

$1.71

92161B

DAMPER,RUBBER

92161-1200

$3.21

92172

SCREW,TAPPING,5X16

92172-0742

$1.43

132

BOLT-FLANGED-SMALL,6X20

132BA0620

$1.77
