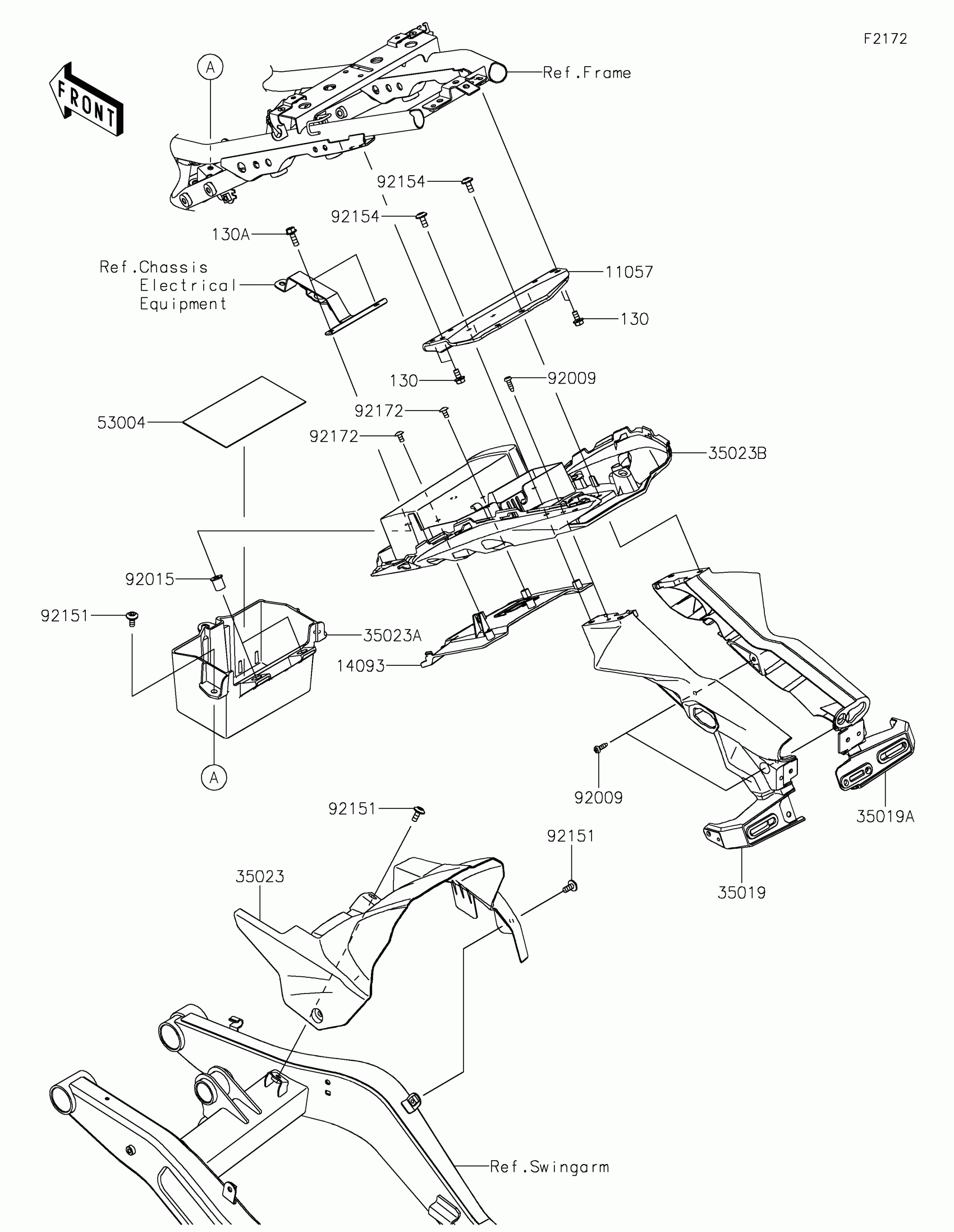

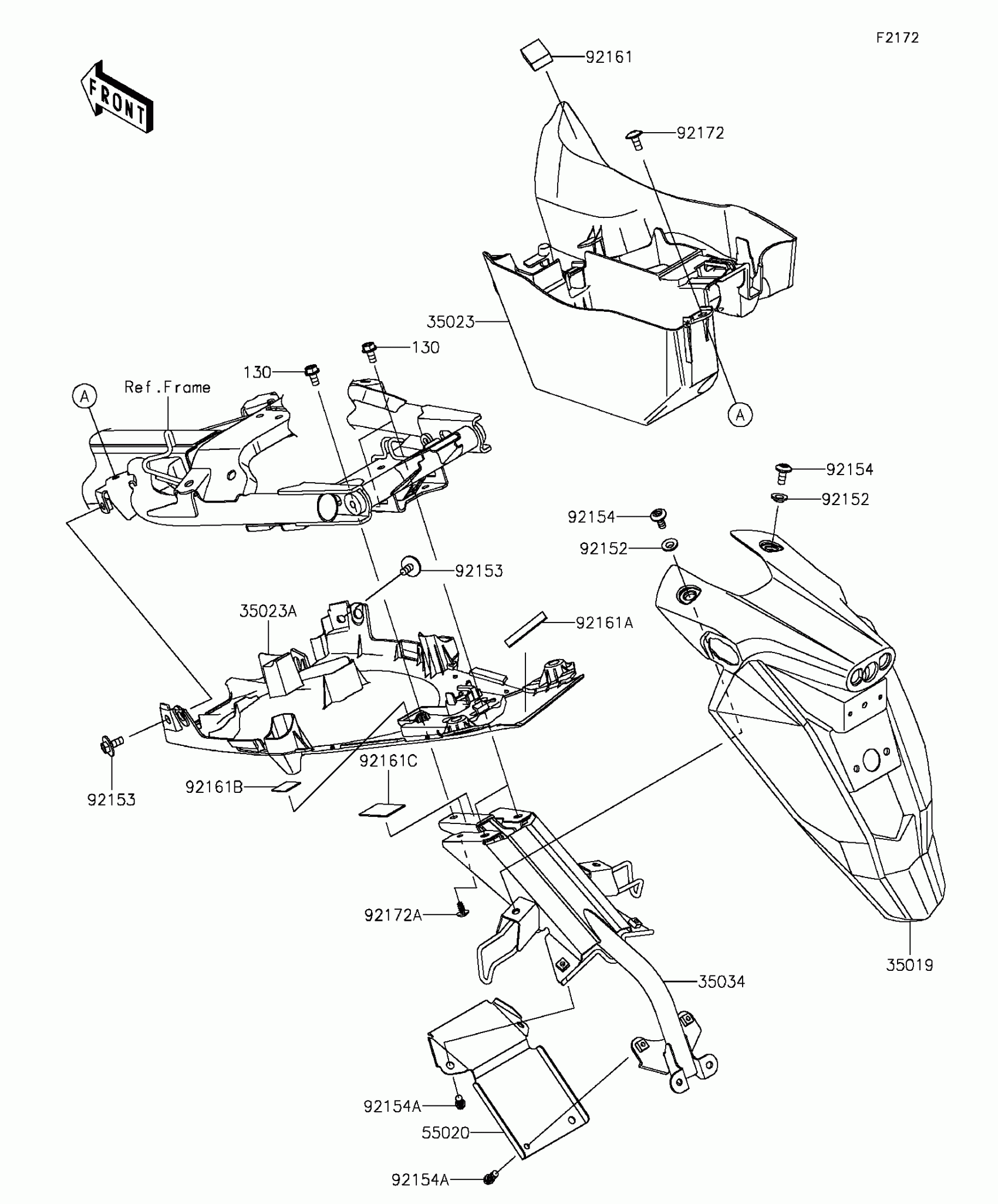

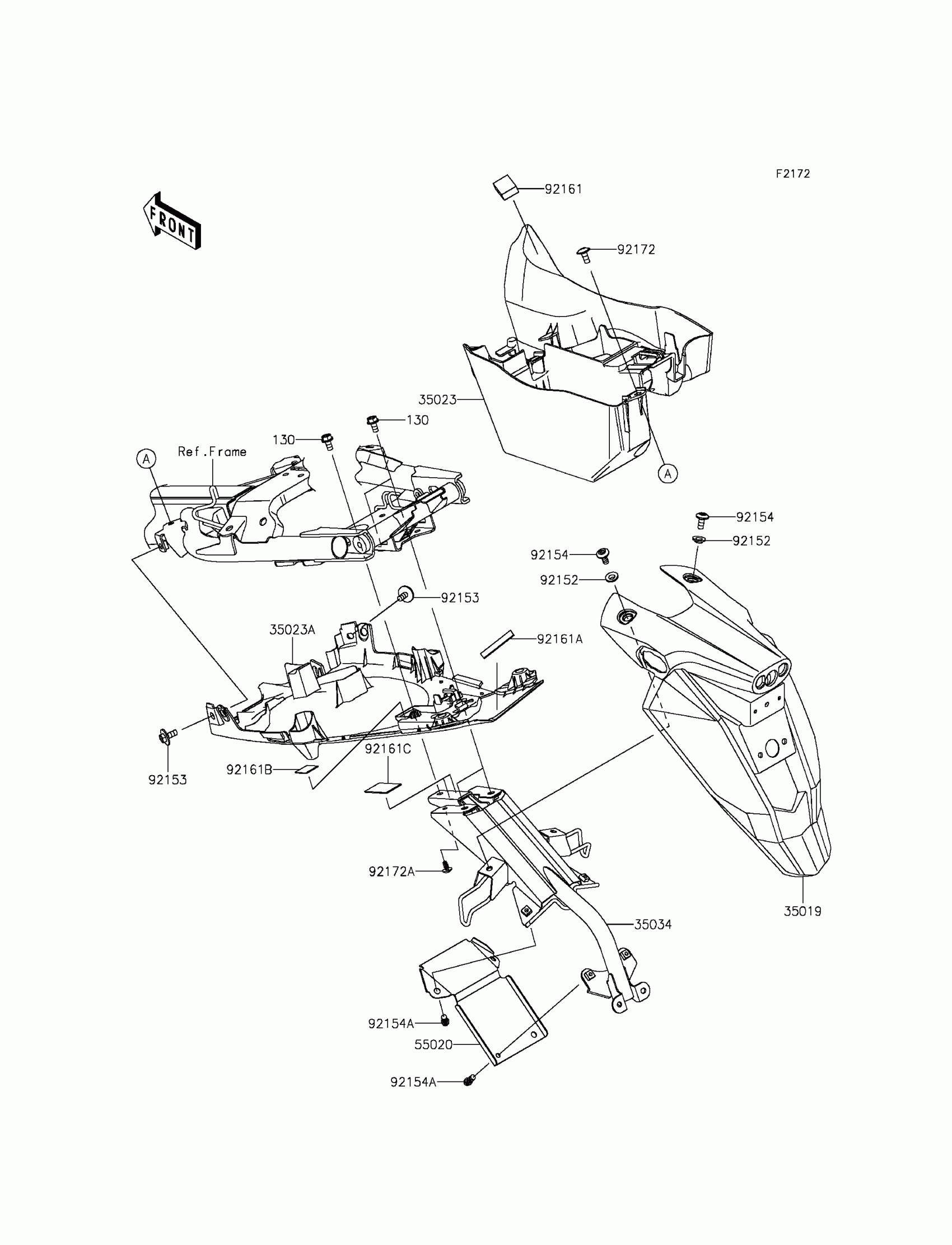

Kawasaki Ninja® 650 Rear Fender(s) Diagram

Description

Price

35019

FLAP,RR

35019-0556

$77.70

35023

FENDER-REAR,FR

35023-0309

$42.66

35023A

FENDER-REAR,RR

35023-0354

$61.15

35034

REINFORCE

35034-0568

$100.66

55020

GUARD

55020-0846

$14.90

92152

COLLAR,6.3X9.5X4.1

92152-1571

$4.53

92153

BOLT,6X16

92153-0684

$3.42

92154

BOLT,SOCKET,6X14

92154-0907

$1.44

92154A

BOLT,FLANGED,6X12

92154-0979

$0.85

92161

DAMPER

92161-0718

$1.17

92161A

DAMPER,10X45,T1.0

92161-1408

$0.85

92161B

DAMPER,20X20,T1.0

92161-1431

$0.85

92161C

DAMPER,25X40,T1.0

92161-1432

$1.10

92172

SCREW,6X14

92172-0004

$1.98

92172A

SCREW,TAPPING,5X10

92172-0262

$1.04

130

BOLT-FLANGED,6X14

130BA0614

$0.97
