2024 Kawasaki Ninja 650 KRT Edition Front Master Cylinder Diagram

← All diagrams

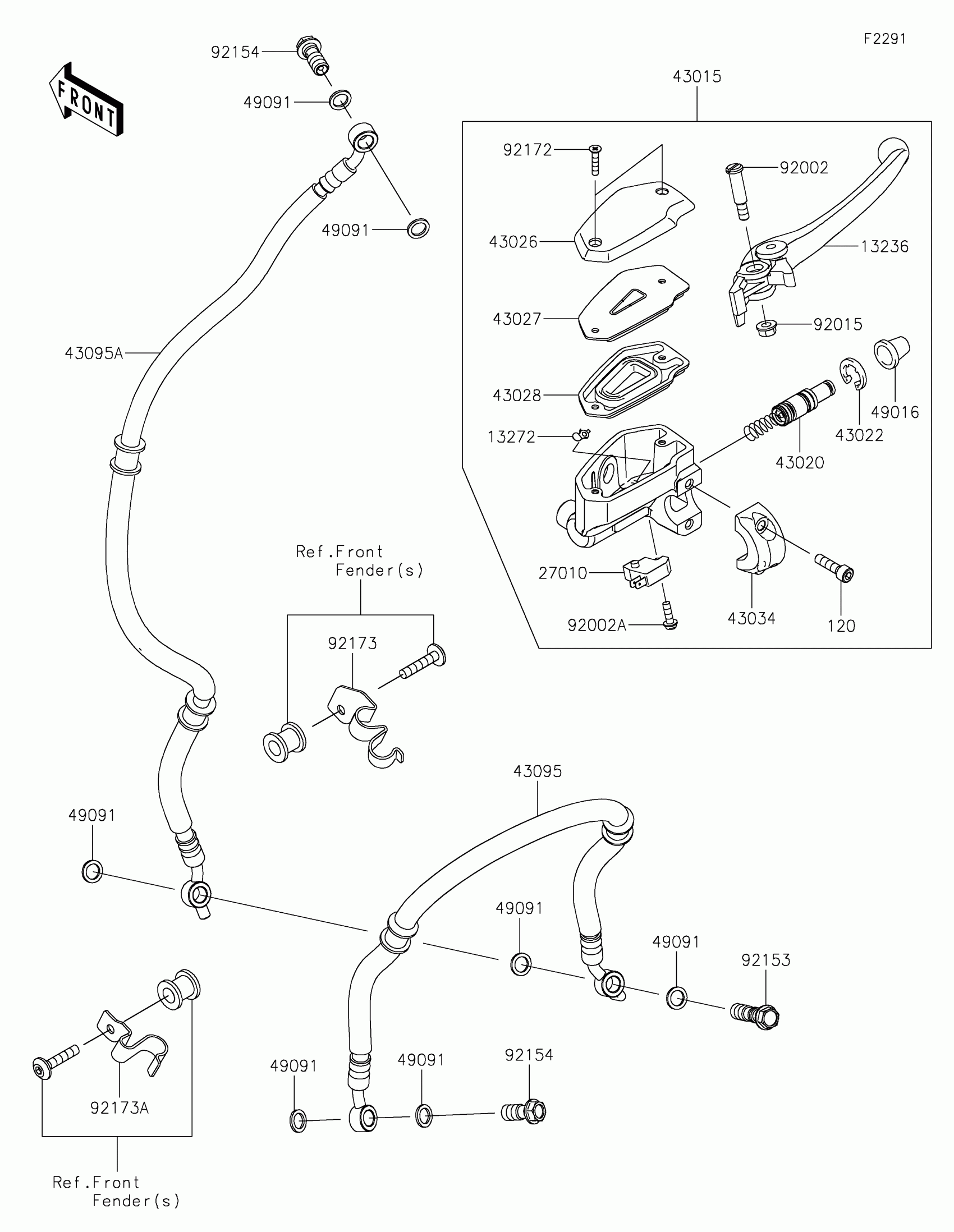

Find the part on the Front Master Cylinder diagram for your 2024 Kawasaki Ninja 650 KRT Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki Ninja 650 KRT Edition Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13236

LEVER-COMP,FRONT BRAKE

13236-0140

1
Out of stock

13272

PLATE

13272-0573

1
Out of stock

27010

SWITCH,BRAKE

27010-0762

1
Out of stock

43015

CYLINDER-ASSY-MASTER,FR

43015-0647

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-0008

1
Out of stock

43022

STOPPER-BRAKE,PISTON

43022-1010

1
Out of stock

43026

CAP-BRAKE

43026-0019

1
Out of stock

43027

PLATE-DIAPHRAGM

43027-0008

1
Out of stock

43028

DIAPHRAGM

43028-0015

1
Out of stock

43034

HOLDER-BRAKE,MASTER-CYLINDER

43034-0050

1
Out of stock

43095

HOSE-BRAKE,CAL-CAL,549MM

43095-0964

1
Out of stock

43095A

HOSE-BRAKE,FR,747MM

43095-0968

1
Out of stock

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92002

BOLT,LEVER SET,BLACK

92002-1322

1
Out of stock

92002A

BOLT,SCREW,4X12

92002-1323

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1528

1
Out of stock

92153

BOLT,OIL,L=37

92153-0628

1
Out of stock

92154

BOLT,OIL,L=23

92154-4239

1
Out of stock

92172

SCREW,4X20

92172-0320

1
Out of stock

92173

CLAMP,FR FENDER,RH

92173-1612

1
Out of stock

92173A

CLAMP,FR FENDER,LH

92173-2290

1
Out of stock

120

BOLT-SOCKET,6X22

120CB0622

1
Out of stock
