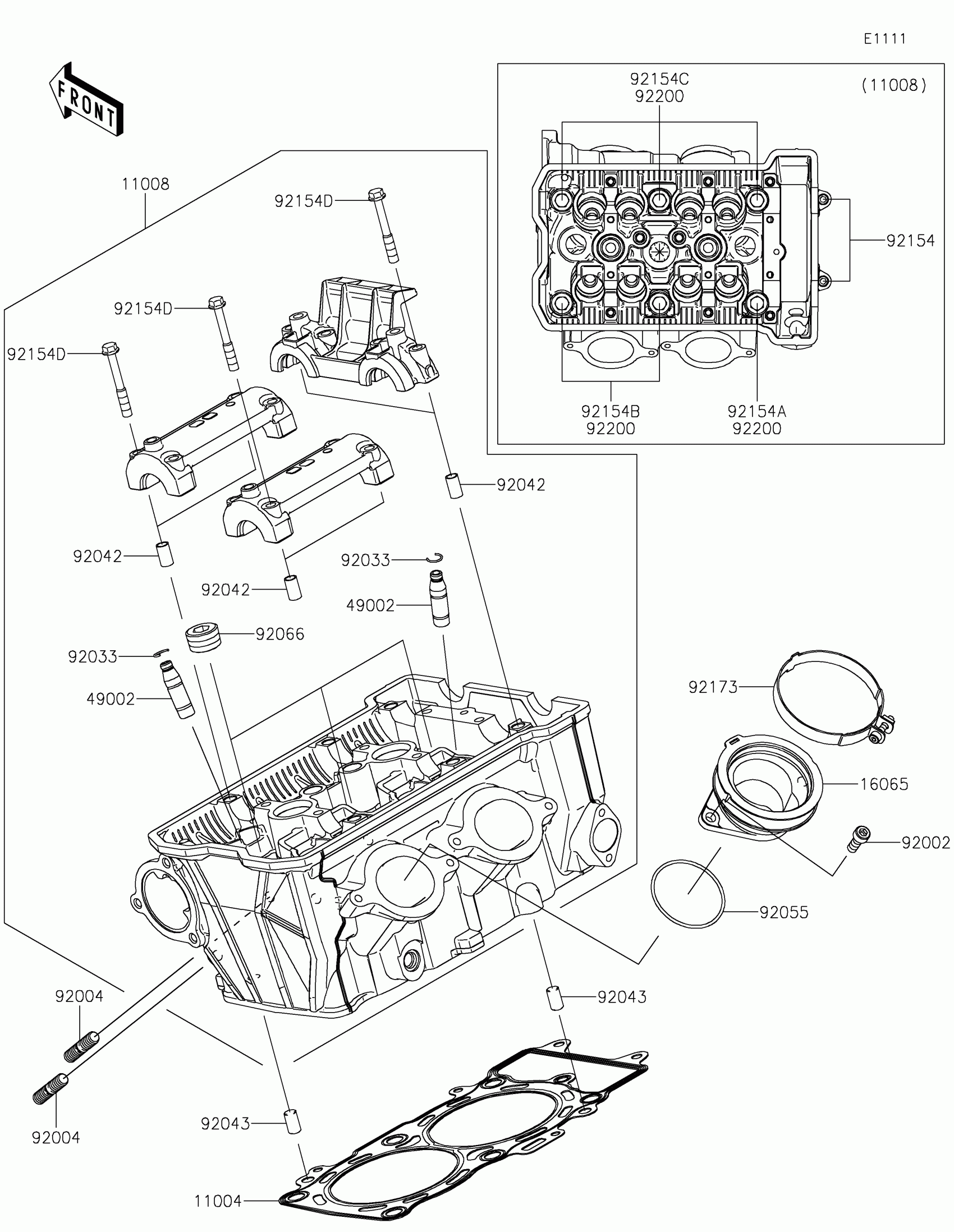

Find the part on the Cylinder Head diagram for your 2024 Kawasaki Ninja 650 KRT Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki Ninja 650 KRT Edition Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

11004-0763

1
Out of stock

11008

HEAD-COMP-CYLINDER

11008-0976

1
Out of stock

16065

HOLDER-CARBURETOR

16065-0131

1
Out of stock

49002

GUIDE-VALVE

49002-0039

1
Out of stock

92002

BOLT,6X16

92002-1143

1
Out of stock

92004

STUD,8X22

92004-0025

1
Out of stock

92033

RING-SNAP

92033-1247

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1
Out of stock

92043

PIN,8X14

92043-1567

1
Out of stock

92055

RING-O,47X1.9

92055-1600

1
Out of stock

92066

PLUG,PT1/2X12.5

92066-0002

1
Out of stock

92154

BOLT,SOCKET,6X30

92154-0116

1
Out of stock

92154A

BOLT,FLANGED,10X100

92154-2363

1
Out of stock

92154B

BOLT,FLANGED,10X158

92154-2364

1
Out of stock

92154C

BOLT,FLANGED,10X176

92154-2365

1
Out of stock

92154D

BOLT,FLANGED,6X45

92154-3737

1
Out of stock

92173

CLAMP

92173-0239

1
Out of stock

92200

WASHER,10.5X19X2.3

92200-0257

1
Out of stock
