2024 Kawasaki Ninja 650 KRT Edition Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 2024 Kawasaki Ninja 650 KRT Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

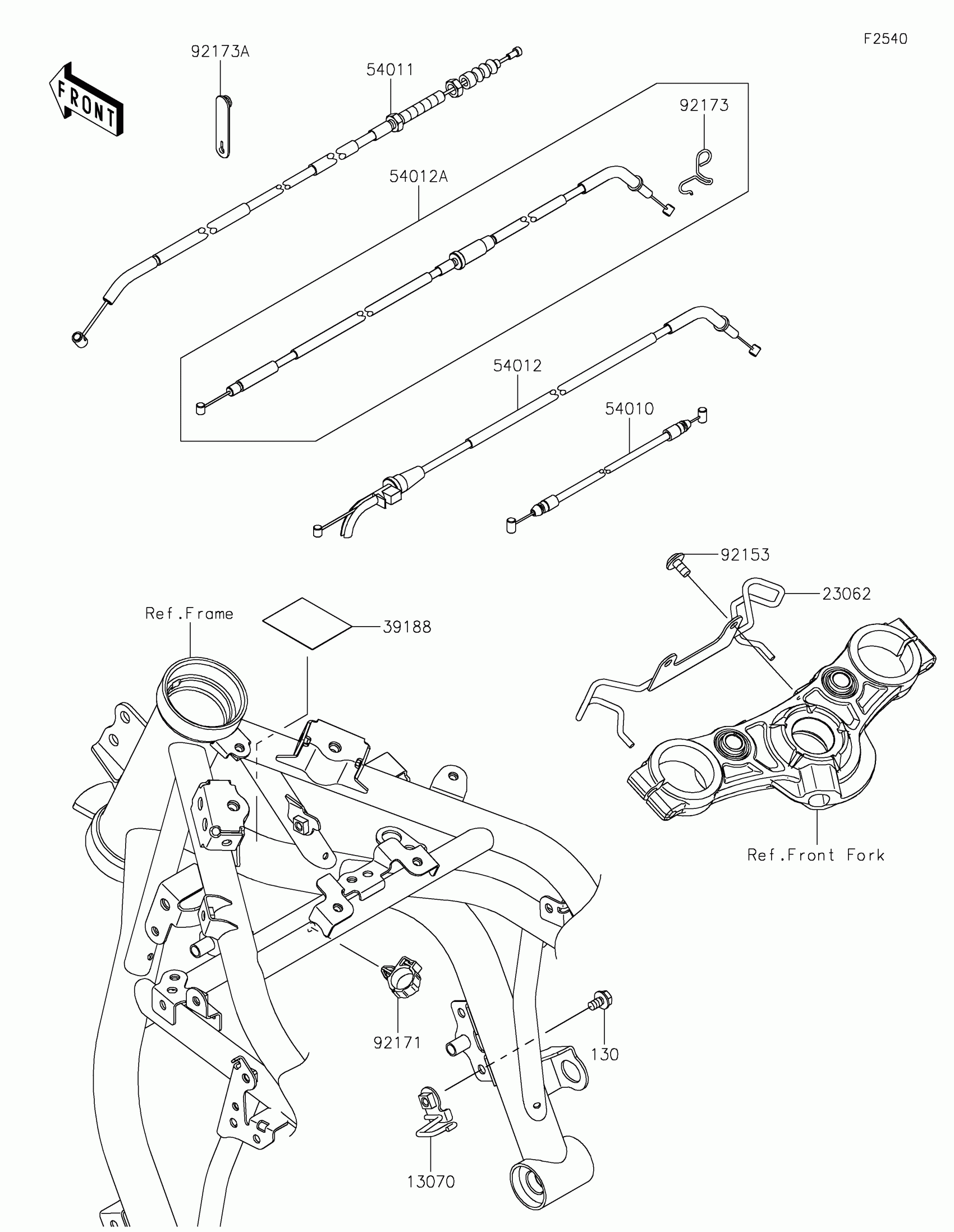

2024 Kawasaki Ninja 650 KRT Edition Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13070

GUIDE,CLUTCH CABLE

13070-0841

1

$4.86

In stock

23062

BRACKET-COMP,GUIDE

23062-0926

1

$14.34

In stock

39188

TAPE,40X50

39188-0049

1

$2.24

In stock

54010

CABLE,SEAT LOCK

54010-0612

1

$16.83

In stock

54011

CABLE-CLUTCH

54011-0623

1

$36.28

In stock

54012

1

$29.04

In stock

54012A

1

$29.04

In stock

92153

BOLT,SOCKET,6X12

92153-1948

1

$1.53

In stock

92171

CLAMP,BRAKE HOSE

92171-0316

1

$3.08

In stock

92173

1

$5.76

In stock

92173A

CLAMP

92173-2198

1

$1.32

In stock

130

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock
