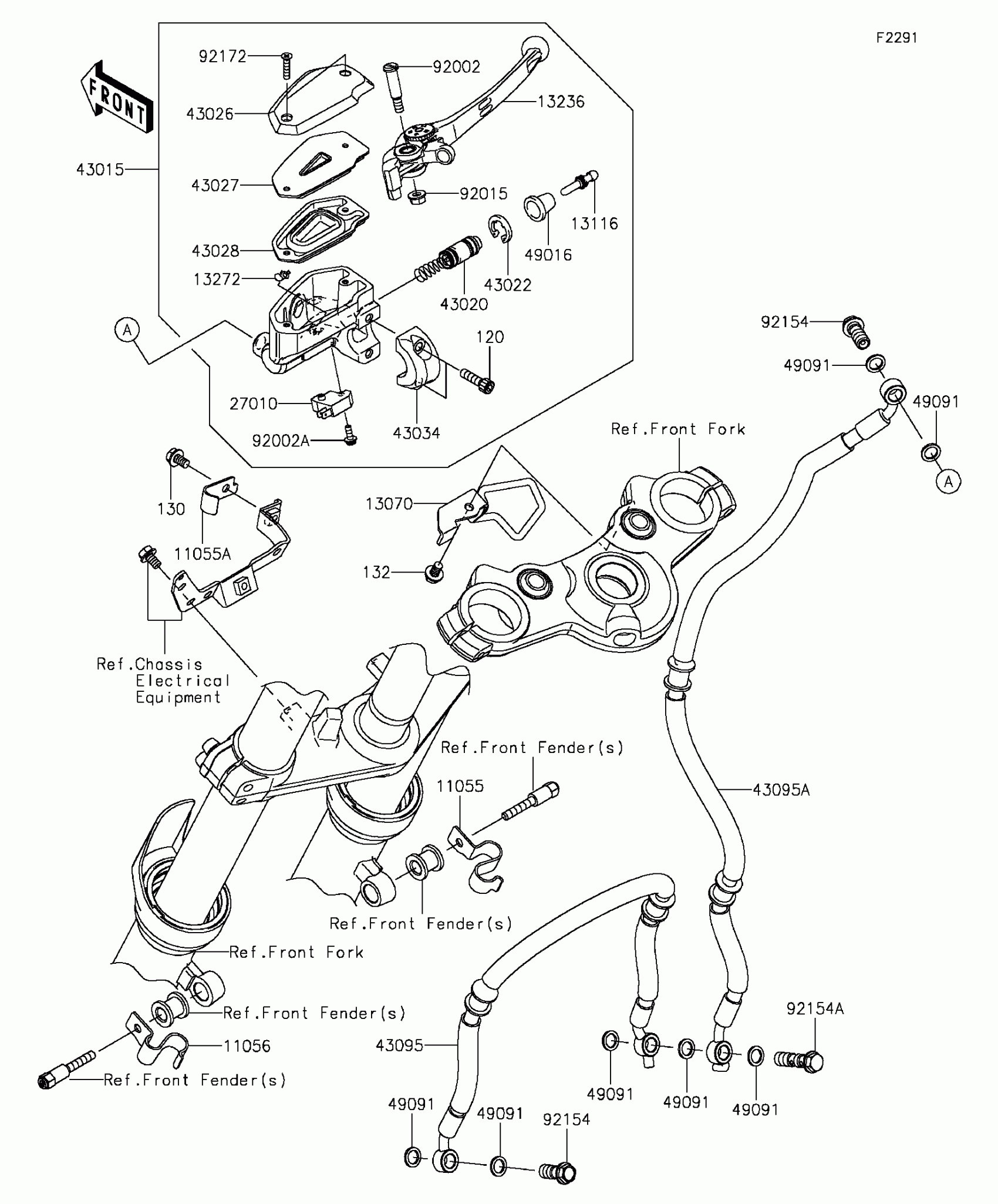

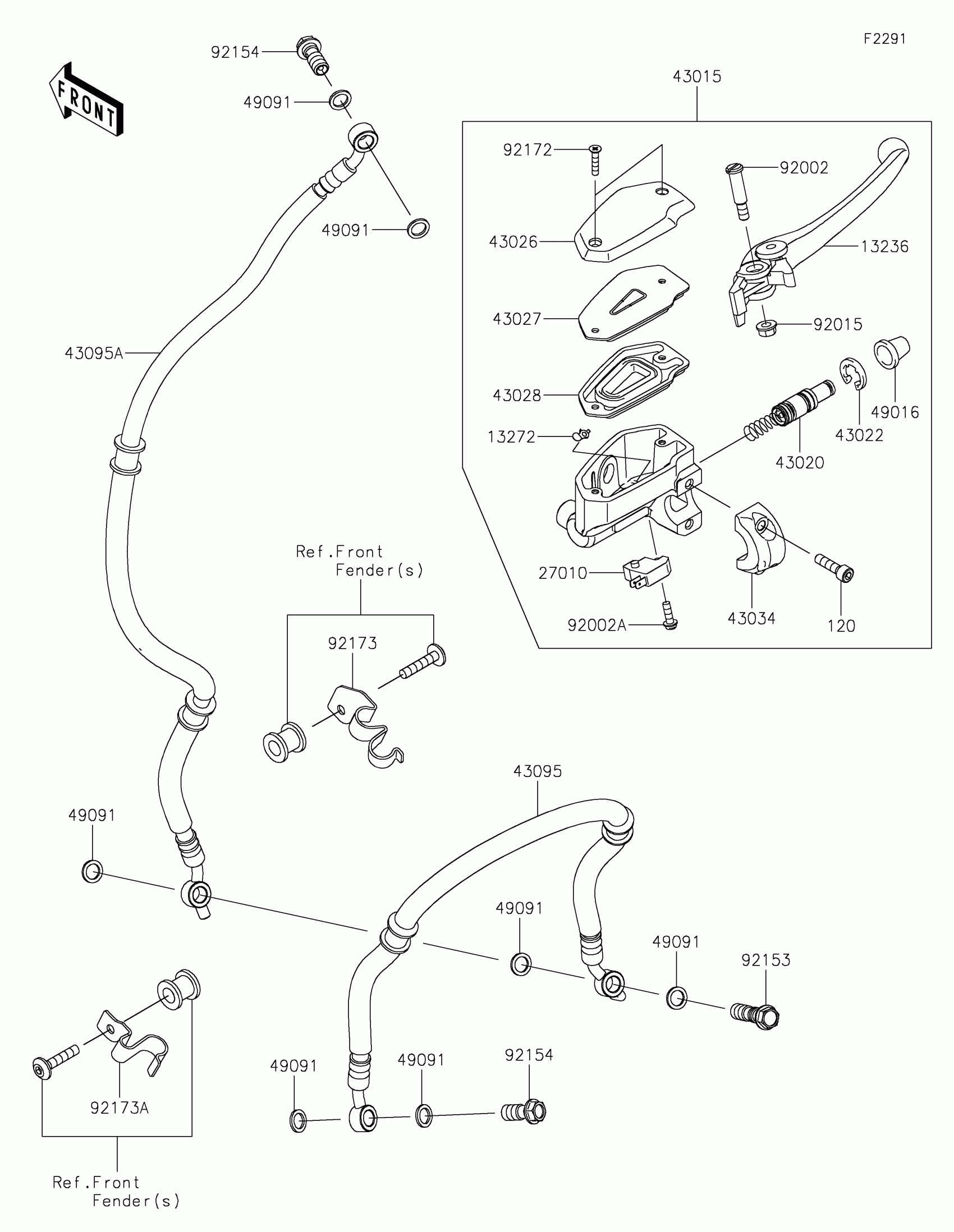

Kawasaki Ninja® 650 Front Master Cylinder Diagram

#

Description
Price

11055

BRACKET

11055-1116

$4.62

11055A

BRACKET

11055-1562

$5.48

11056

BRACKET

11056-1083

$4.90

13070

GUIDE

13070-0733

$10.51

13116

ROD-PUSH

13116-0032

$23.24

13236

LEVER-COMP,FRONT BRAKE

13236-0169

$74.58

13272

PLATE

13272-0573

$7.60

27010

SWITCH,BRAKE

27010-0025

$35.04

43015

CYLINDER-ASSY-MASTER,FR

43015-0118

$409.45

43020

PISTON-COMP-BRAKE

43020-0015

$65.94

43022

STOPPER-BRAKE,PISTON

43022-1010

$4.65

43026

CAP-BRAKE

43026-0019

$46.21

43027

PLATE-DIAPHRAGM

43027-0008

$8.69

43028

DIAPHRAGM

43028-0015

$36.45

43034

HOLDER-BRAKE,MASTER-CYLINDER

43034-0050

$45.21

43095

HOSE-BRAKE,FR,L=545

43095-0626

$74.01

43095A

HOSE-BRAKE,M/C-CALIPER

43095-0636

$79.06

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92002

BOLT,LEVER SET,BLACK

92002-1322

$11.71

92002A

BOLT,SCREW,4X12

92002-1323

$3.92

92015

NUT,FLANGED,6MM

92015-1528

$5.52

92154

BOLT,FLANGED,10X23

92154-0732

$5.05

92154A

BOLT,FLANGED,10X37

92154-0733

$9.17

92172

SCREW,4X20

92172-0320

$3.90

120

BOLT-SOCKET,6X22

120CB0622

$5.31

130

BOLT-FLANGED,6X10

130BA0610

$1.20

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.71
