Description

Price

11009

GASKET,10.5X15X1.5

11009-1325

Unavailable

44005

PIPE-LEFT FORK OUTER,S.BLACK

44005-0087-32A

$304.32

44006

PIPE-RIGHT FORK OUTER,S.BLACK

44006-0082-32A

$304.32

44013

PIPE-FORK INNER

44013-0154

$492.07

44023

CYLINDER-SET-FORK

44023-0098

$112.44

44026

SPRING-FRONT FORK

44026-0165

$62.56

44029

SEAT-FORK SPRING

44029-0005

$45.48

44037

HOLDER-FORK UNDER,F.S.BLACK

44037-0119-18R

$385.21

44039

HOLDER-FORK UPPER,F.S.BLACK

44039-0121-18R

$385.21

44065

BUSHING-FRONT FORK,INNER TUBE

44065-0014

$26.78

44065A

BUSHING-FRONT FORK,OUTER TUBE

44065-1115

$26.35

44071

DAMPER-ASSY,FORK,LH,S.BLACK

44071-0767-32A

$664.95

44071A

DAMPER-ASSY,FORK,RH,S.BLACK

44071-0768-32A

Unavailable

55020

GUARD,FORK

55020-0872

$9.25

92022

WASHER,FORK OUTER TUBE

92022-1298

$6.82

92033

RING-SNAP

92033-1036

$5.15

92049

SEAL-OIL

92049-0073

$21.04

92055

RING-O

92055-1321

$1.19

92066

PLUG

92066-0032

$11.19

92092

BUSHING-RUBBER

92092-1090

$7.44

92093

SEAL,FORK OUTER TUBE

92093-1472

$22.03

92151

BOLT,SOCKET,10X40

92151-1357

$3.59

92152

COLLAR,FORK

92152-0767

$13.02

92153

BOLT,SOCKET,8X40

92153-0506

$7.46

92154

BOLT,SOCKET,FORK CYLINDER

92154-0296

$2.92

92200

WASHER

92200-1302

$4.32

120

BOLT-SOCKET,8X35

120CA0835

$2.29

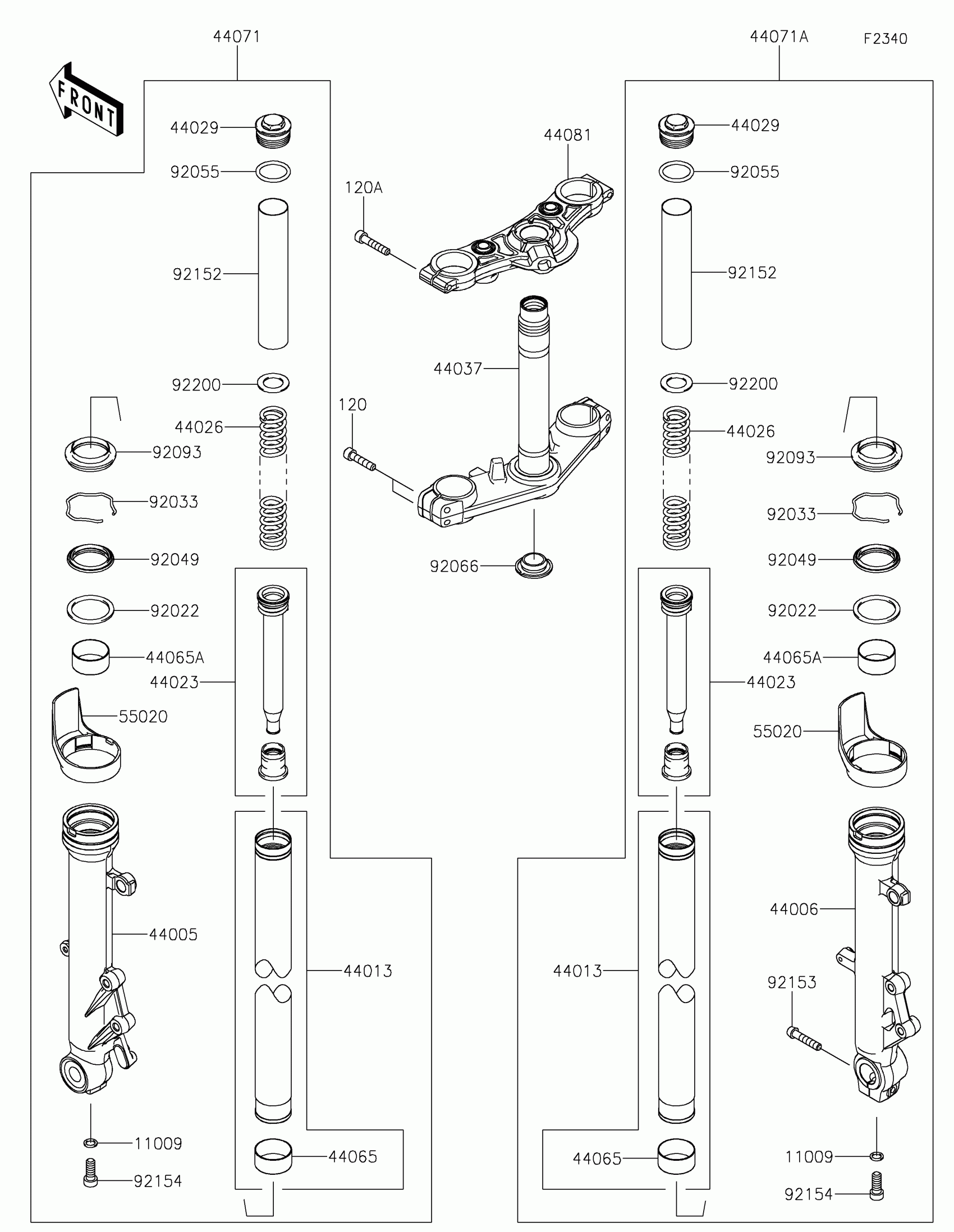

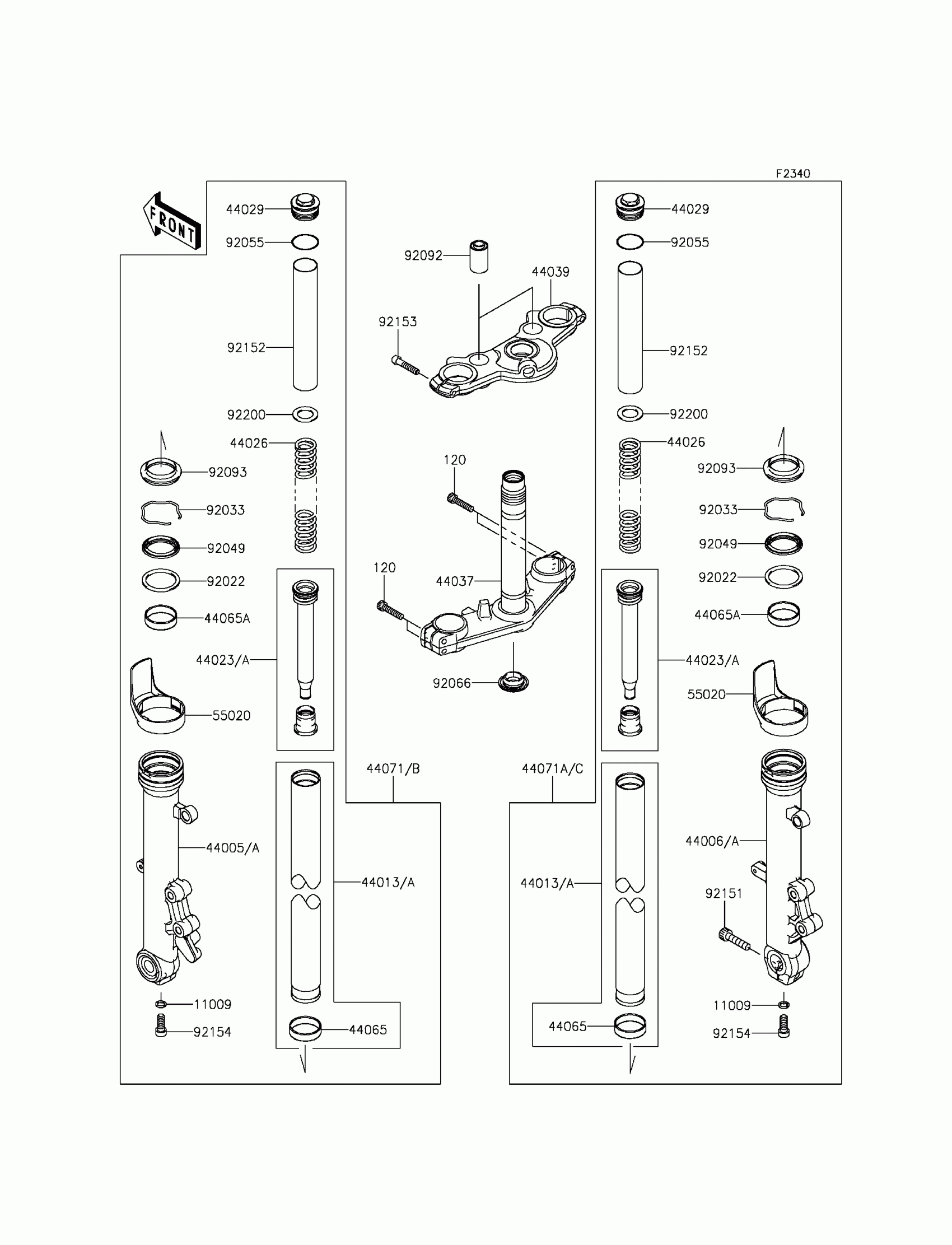

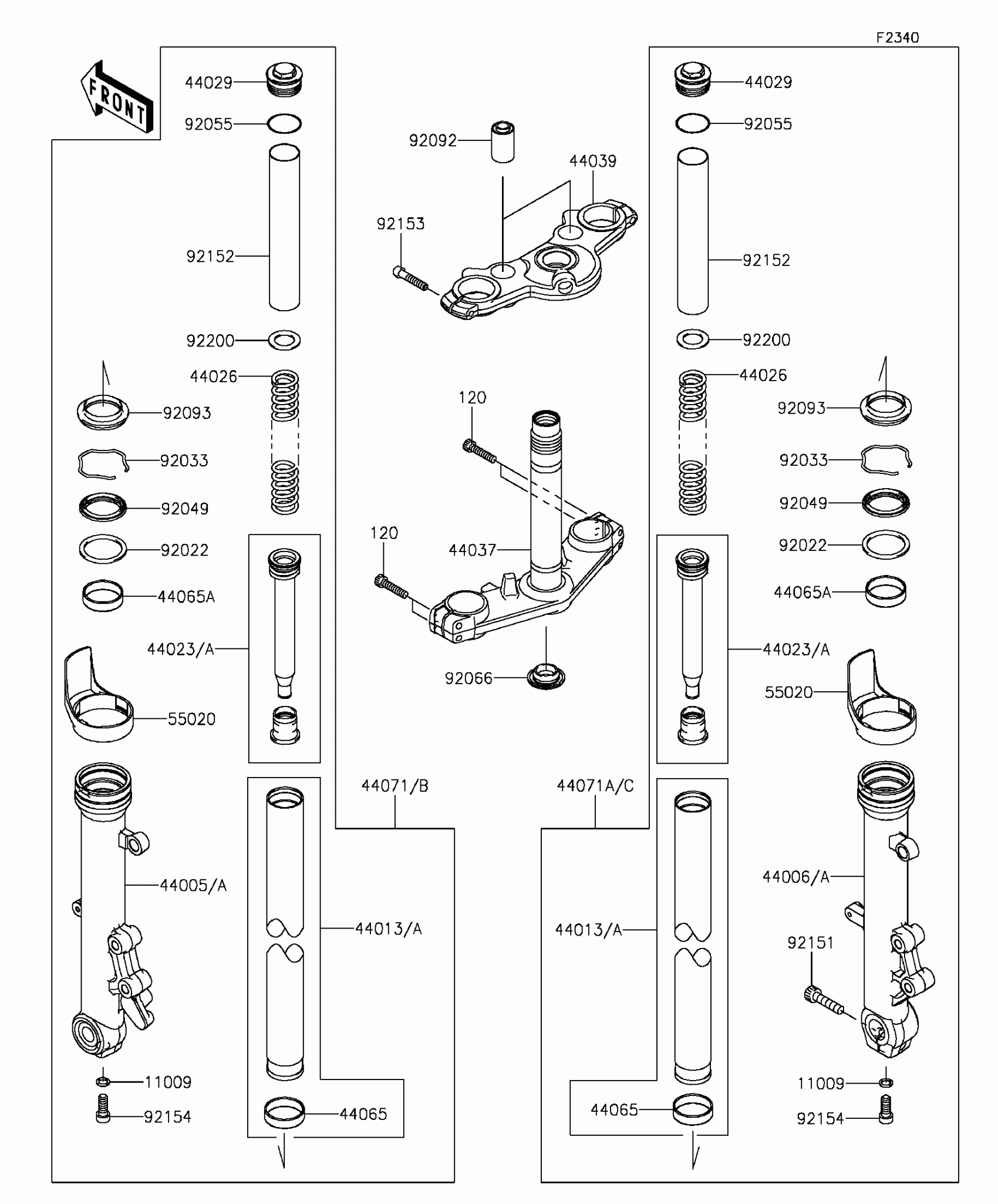

Kawasaki Ninja® 650 Front Fork Diagram
