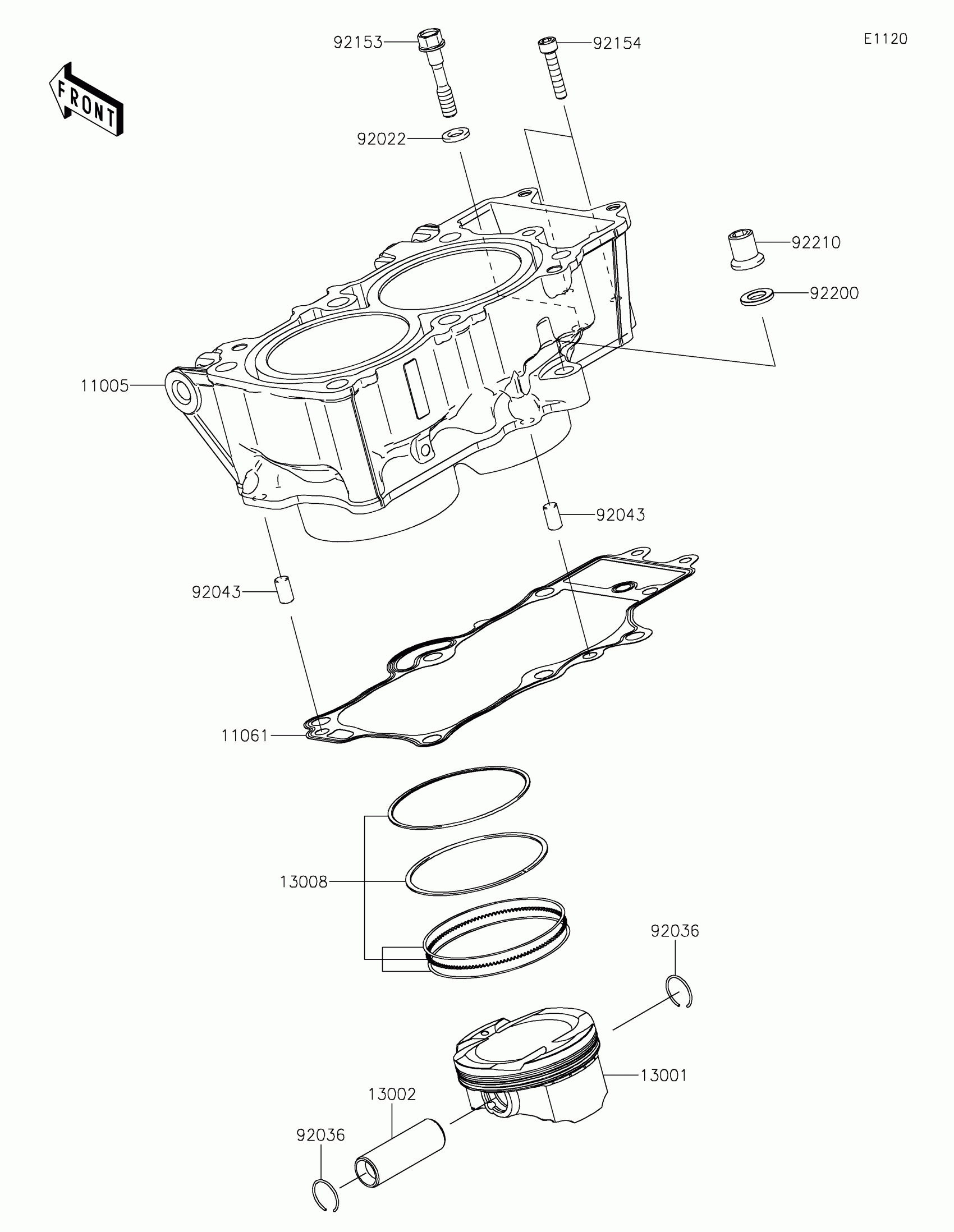

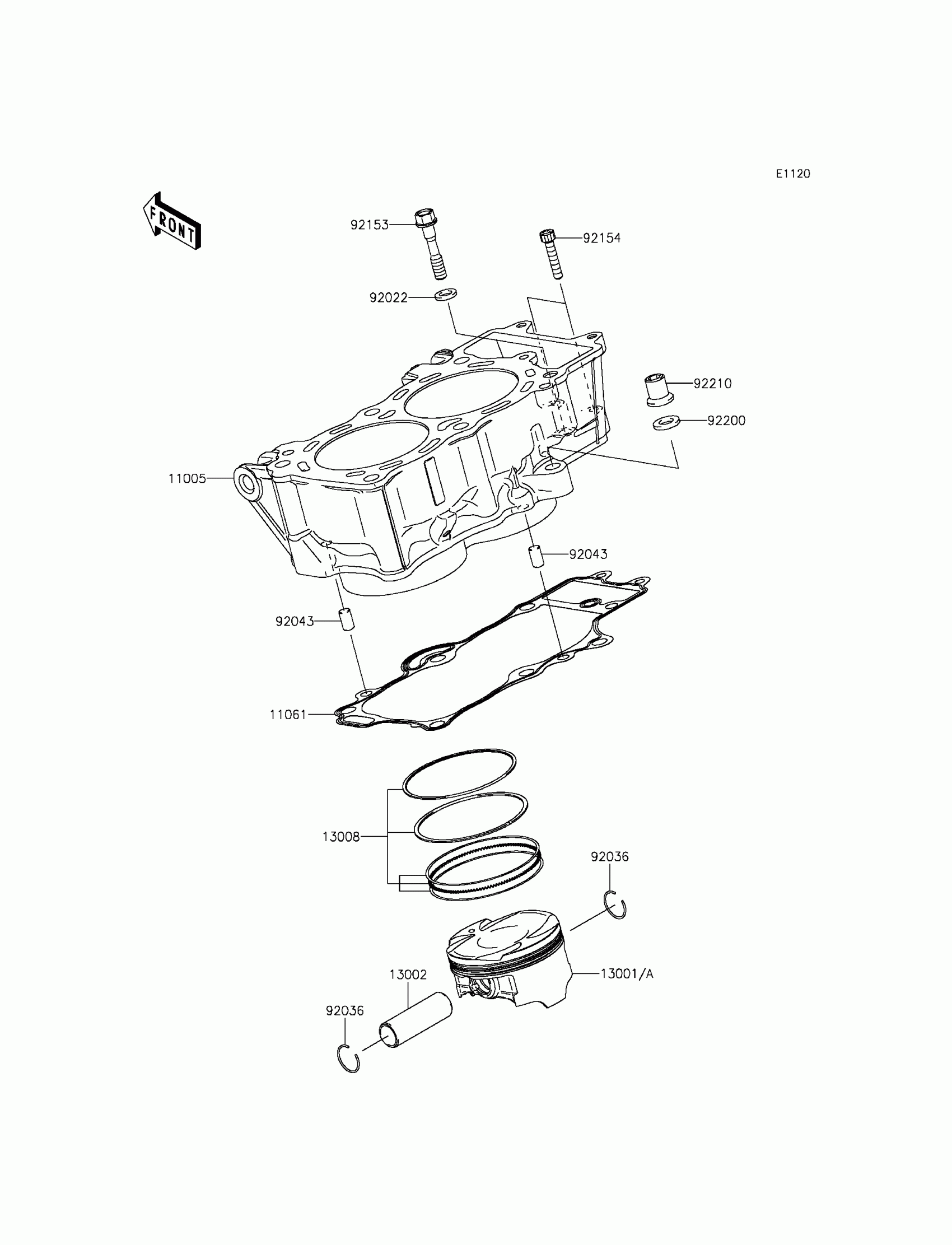

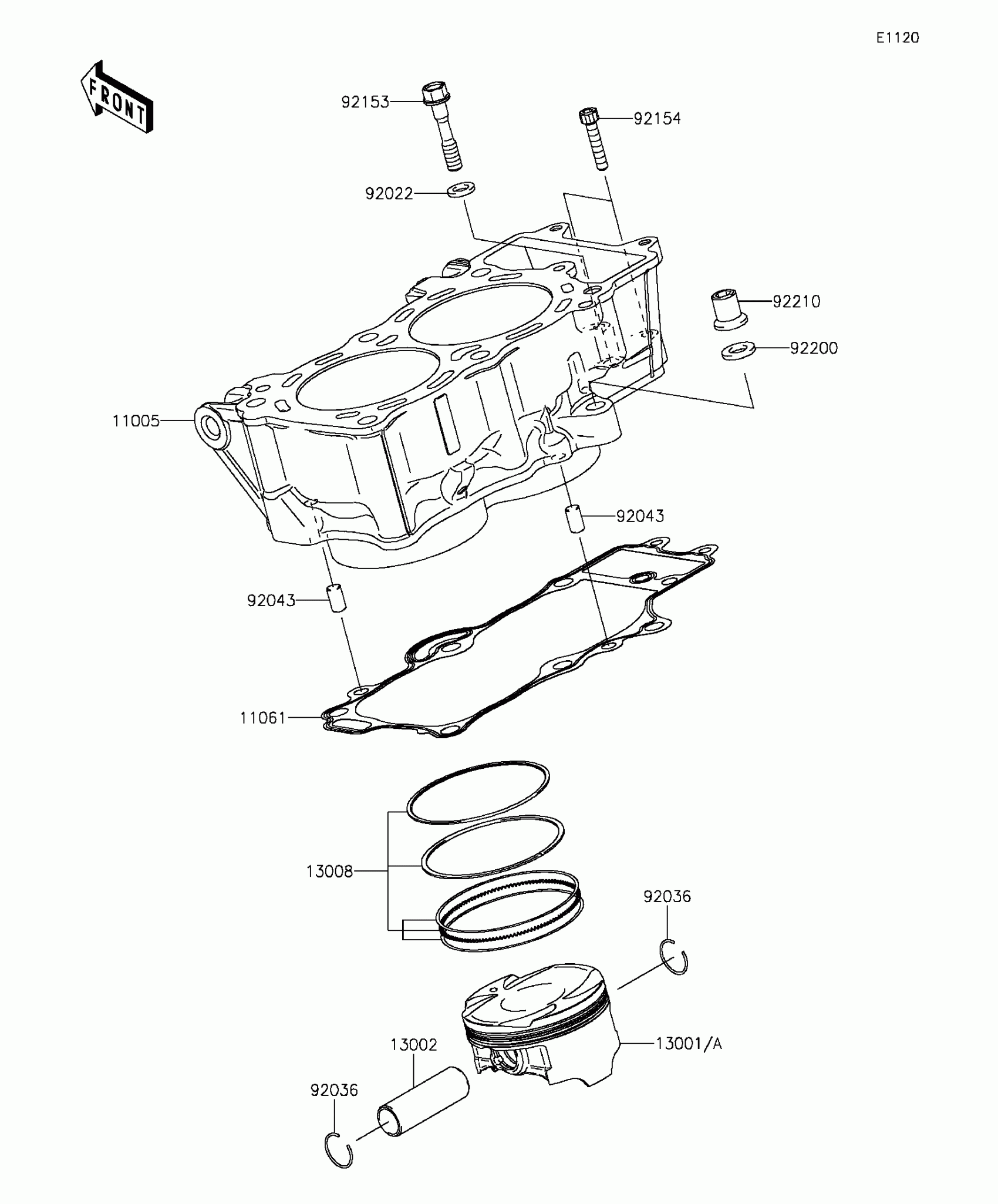

Kawasaki Ninja® 650 Cylinder/Piston(s) Diagram

Description

Price

11005

CYLINDER-ENGINE

11005-0580

$1,275.49

11061

GASKET,CYLINDER BASE

11061-0171

$30.35

13001A

PISTON-ENGINE

13001-0733

$96.78

13002

PIN-PISTON

13002-0007

$18.29

13008

RING-SET-PISTON

13008-1196

$60.93

92022

WASHER,9X15.5X2

92022-1401

$1.24

92036

RING-SNAP,PISTON PIN

92036-008

$0.53

92043

PIN,8X14

92043-1567

$1.88

92153

BOLT,8X43

92153-1011

$8.46

92154

BOLT,SOCKET,6X30

92154-0116

$2.41

92200

WASHER,10.5X19X2.3

92200-0363

$3.11

92210

NUT

92210-0223

$17.39
