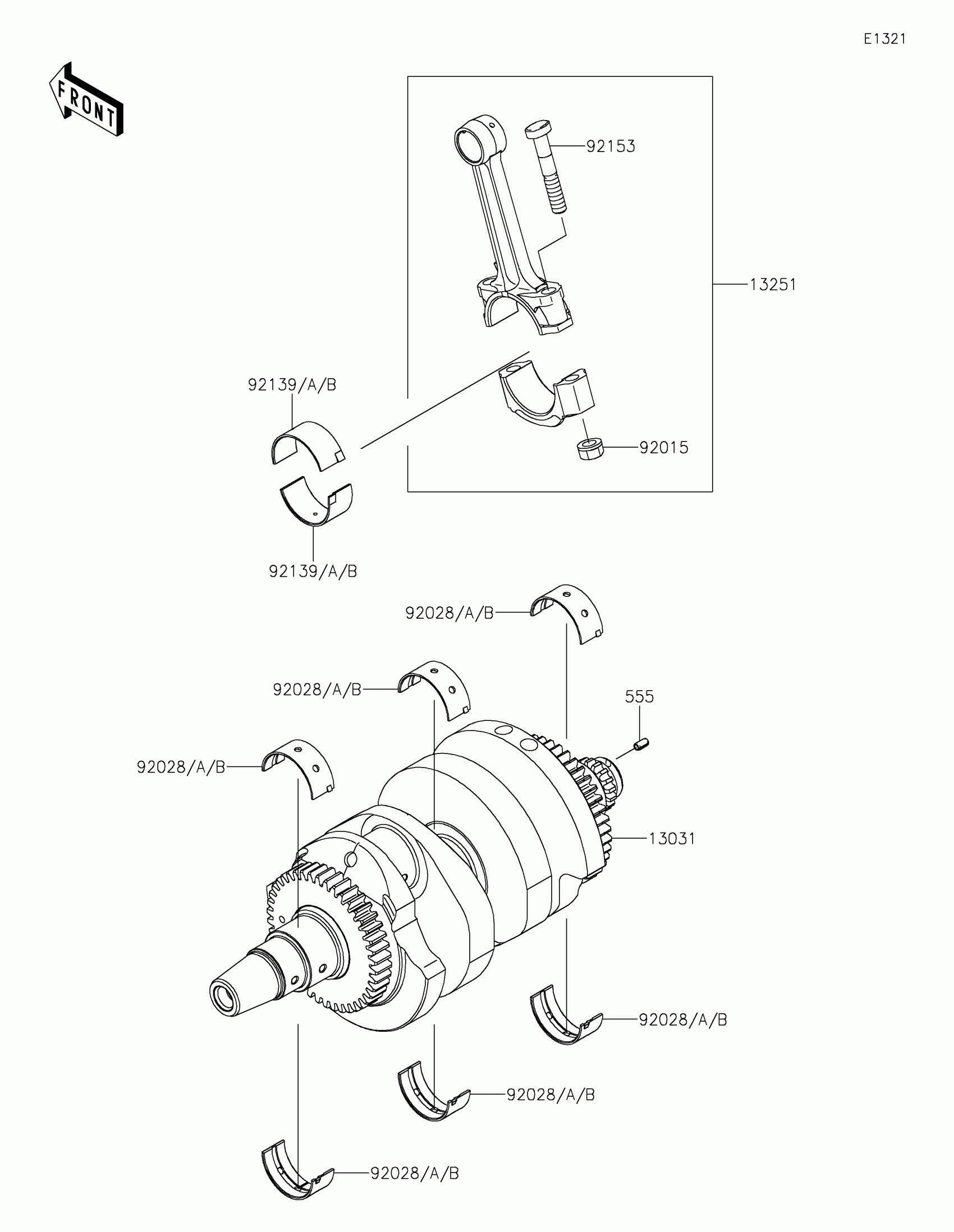

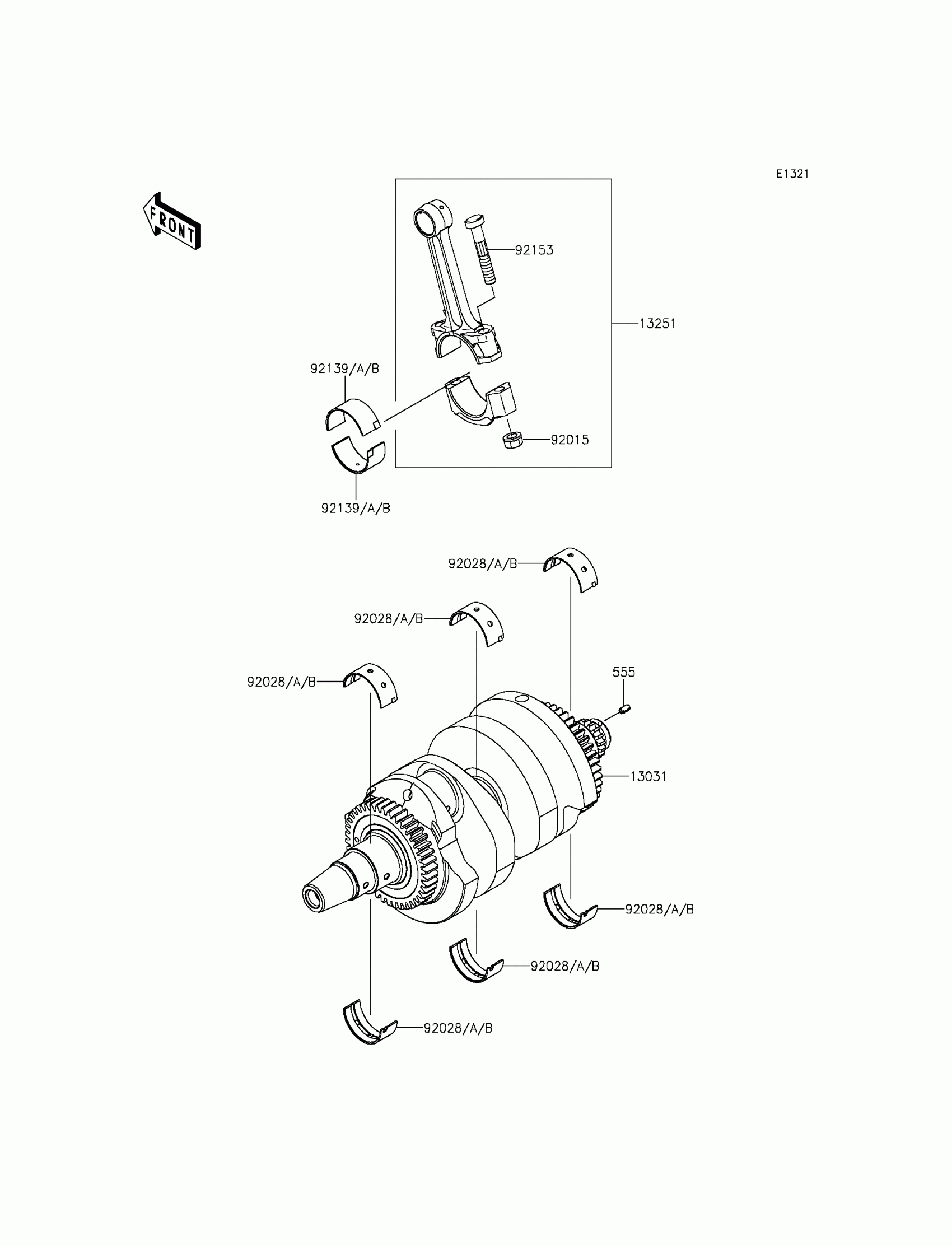

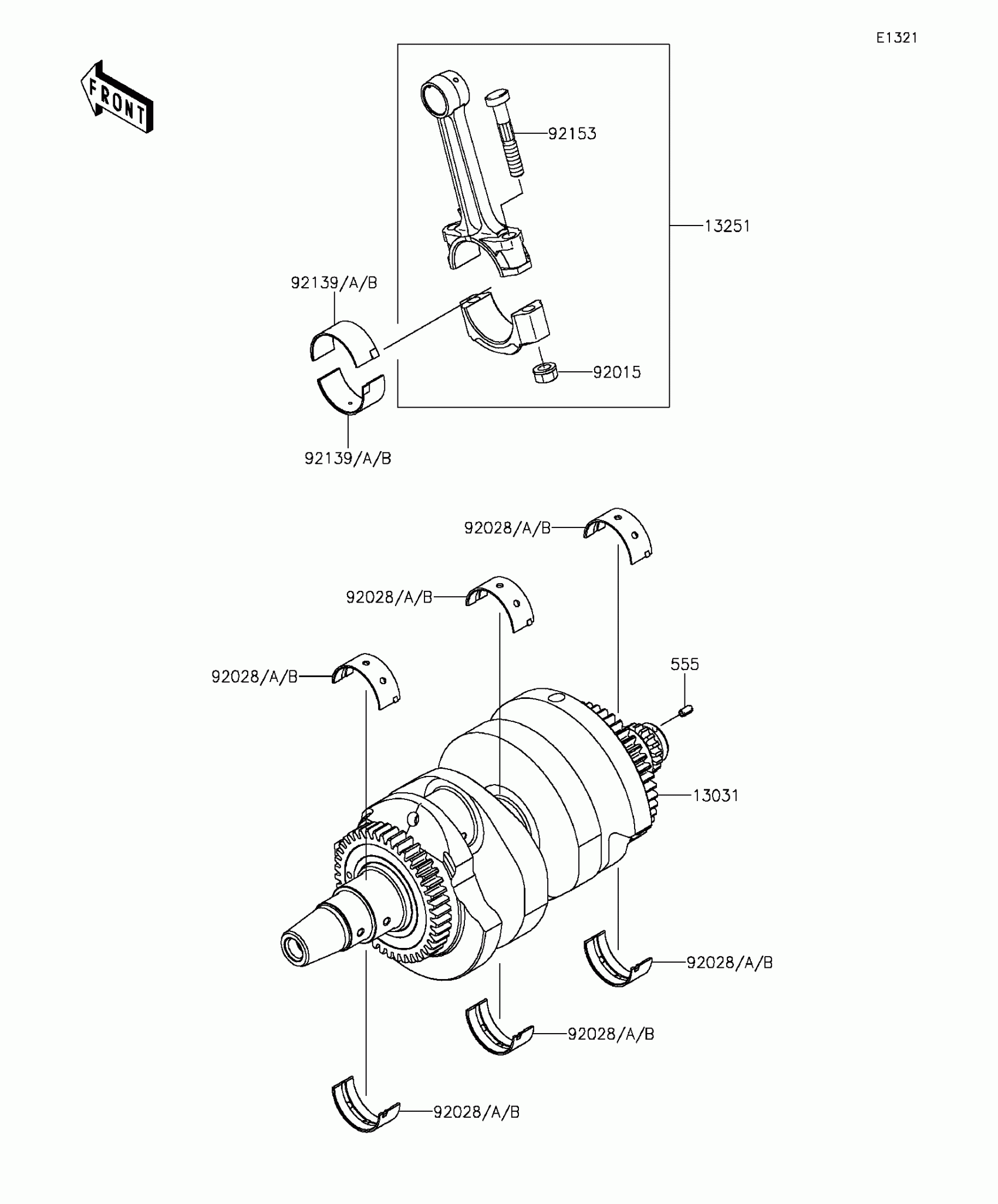

Kawasaki Ninja® 650 Crankshaft Diagram

#

Description
Price

13031

CRANKSHAFT-COMP

13031-0149

$835.73

13251

ROD-ASSY-CONNECTING,K

13251-0010-KK

$184.30

92015

NUT,FLANGED,8MM

92015-1311

$5.84

92028

BUSHING,CRANKSHAFT,BLUE

92028-1903

$17.10

92028A

BUSHING,CRANKSHAFT,BLACK

92028-1904

$17.10

92028B

BUSHING,CRANKSHAFT,BROWN

92028-1905

$14.36

92139

BUSHING,CON-ROD,BLUE

92139-0114

$11.19

92139A

BUSHING,CON-ROD,BLACK

92139-0115

$13.42

92139B

BUSHING,CON-ROD,BROWN

92139-0116

$13.42

92153

BOLT,CON-ROD,8X49

92153-0957

$3.51

555

PIN-SPRING,4X8

555A0408

$3.12
