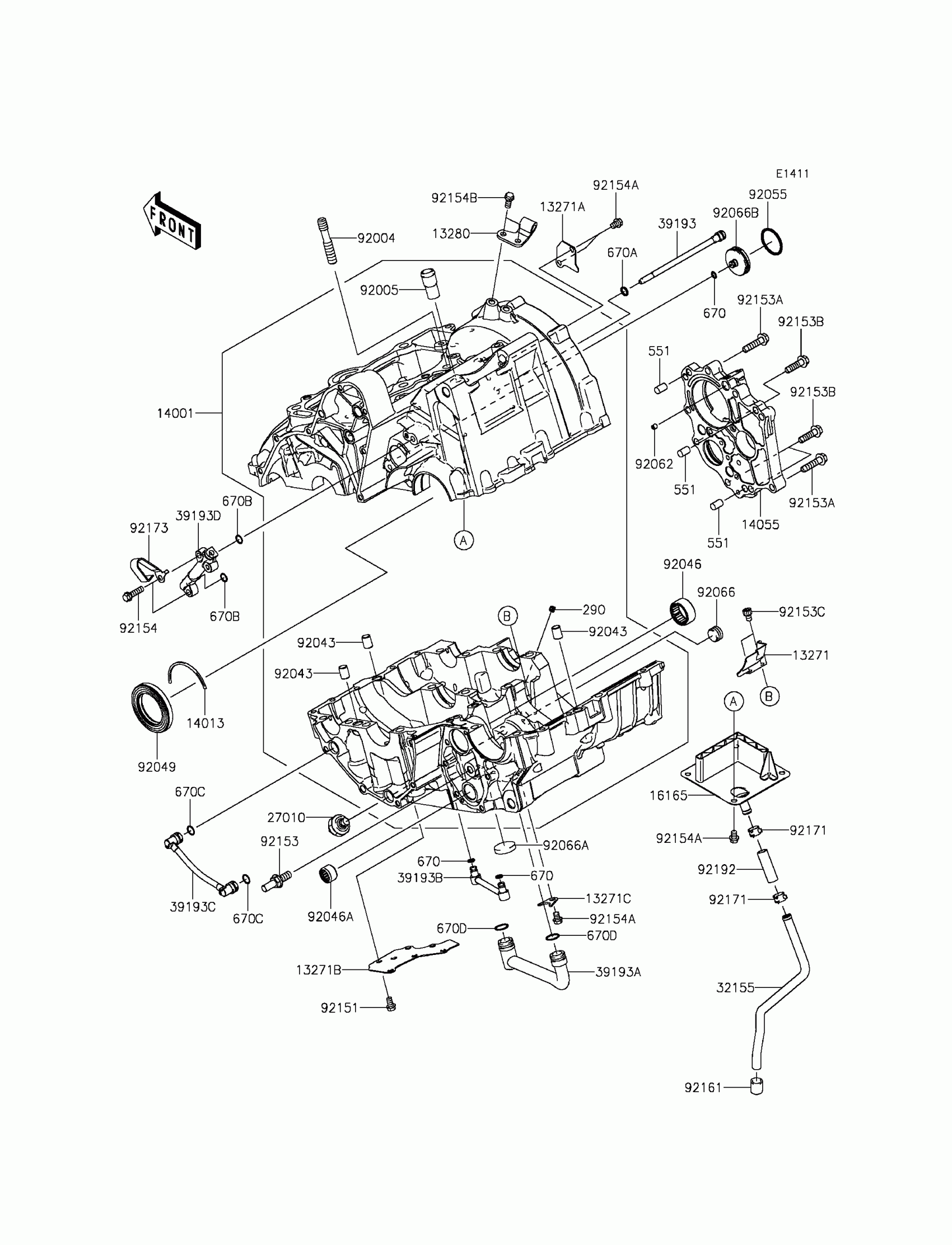

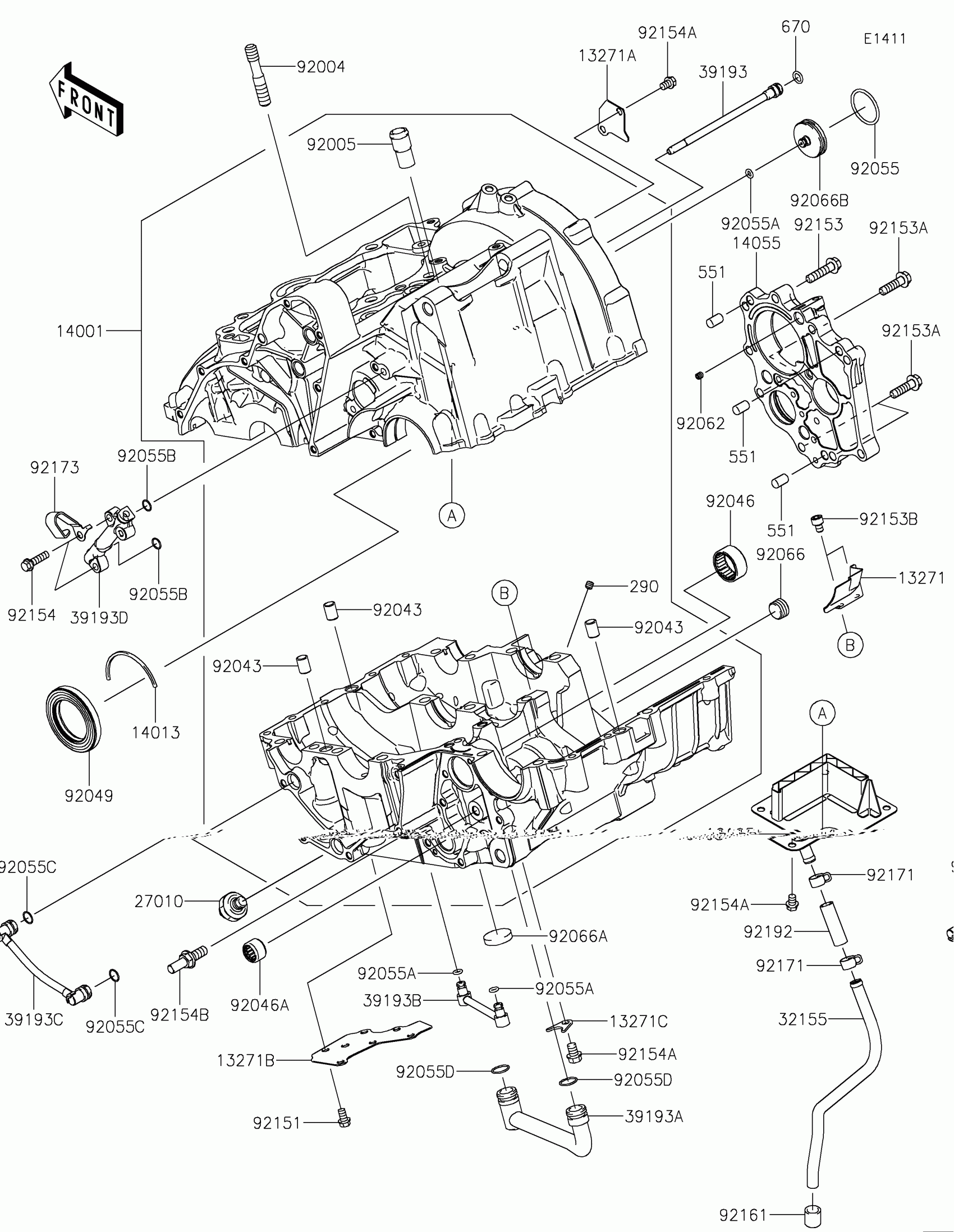

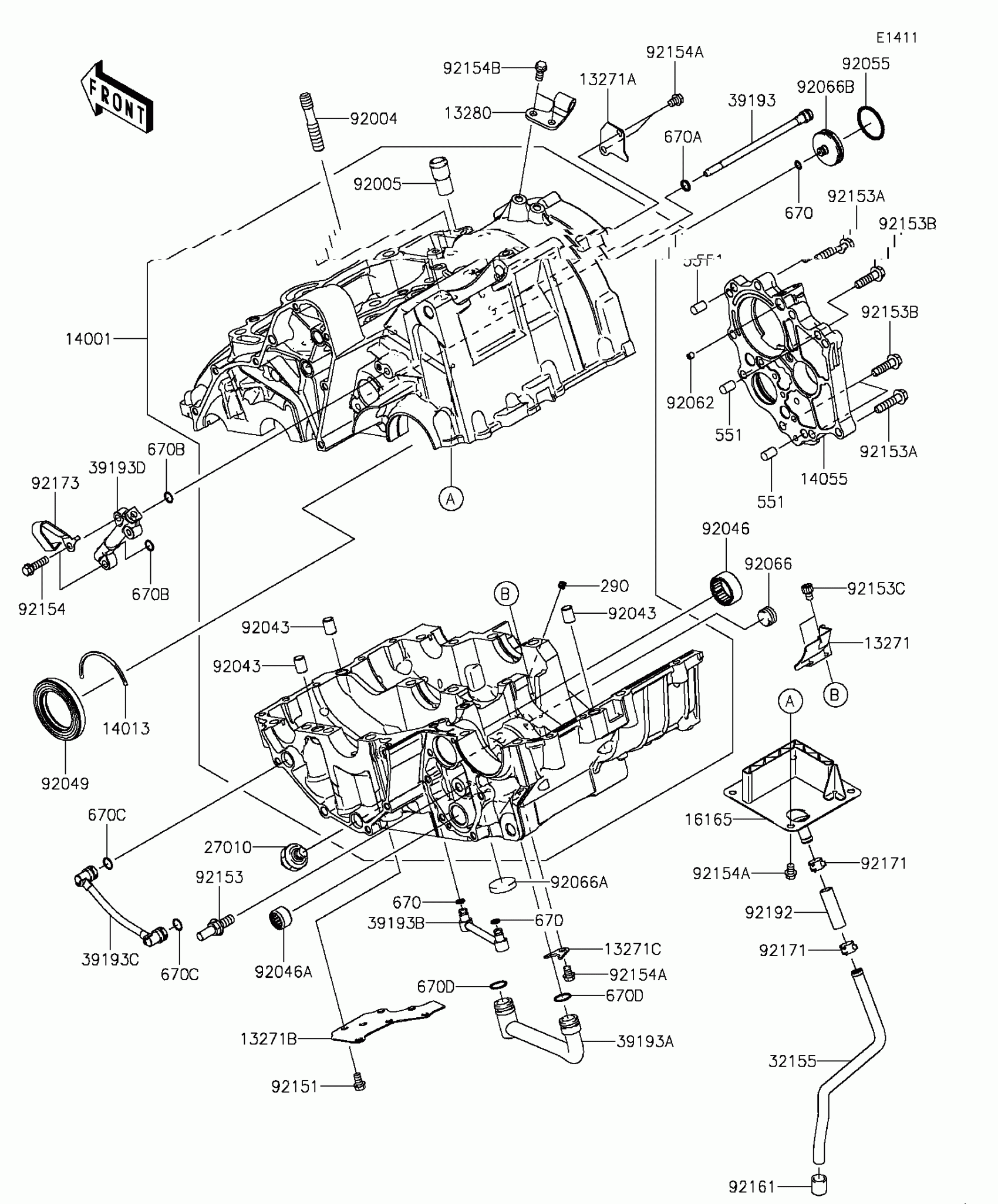

Kawasaki Ninja® 650 Crankcase Diagram

#

Description
Price

13271

PLATE,OIL SHIELDING

13271-0575

$19.14

13271A

PLATE

13271-0577

$2.15

13271B

PLATE

13271-0584

$4.14

13271C

PLATE,OIL PIPE

13271-1187

$2.19

13280

HOLDER,CLUTCH CABLE

13280-0224

$8.39

14001

SET-CRANKCASE

14001-0556

$973.74

14013

RING-POSITION,T=1.98

14013-1004

$3.78

14055

CASE-GEAR,TRANSMISSION

14055-0051

$107.94

16165

SEPARATOR,BREATHER

16165-0056

$62.56

27010

SWITCH,OIL PRESSURE

27010-1313

$35.72

32155

PIPE,BREATHER

32155-0891

$13.47

39193

PIPE-OIL

39193-0564

$29.86

39193A

PIPE-OIL

39193-0565

$50.60

39193B

PIPE-OIL

39193-0566

$25.85

39193C

PIPE-OIL

39193-0567

$50.60

39193D

PIPE-OIL

39193-0569

$66.80

92004

STUD,10X34.5

92004-0024

$8.39

92005

FITTING,BREATHER

92005-0713

$11.68

92043

PIN,DOWEL,10X14

92043-1037

$0.66

92046

BEARING-NEEDLE,24BTM3013

92046-0017

$13.32

92046A

BEARING-NEEDLE,HK1312

92046-1148

$14.13

92049

SEAL-OIL,HTC40628

92049-1501

$7.73

92055

RING-O,29.7X2.4

92055-0006

$4.65

92062

NOZZLE,5X6,SILVER

92062-1086

$3.69

92066

PLUG,PT3/8X10

92066-0003

$2.66

92066A

PLUG,25X5

92066-0061

$4.92

92066B

PLUG,INPUT SHAFT

92066-0715

$16.55

92151

BOLT,FLANGED-SMALL,6X10

92151-1389

$1.68

92153

BOLT,8X20

92153-0530

$5.39

92153A

BOLT,FLANGED,6X30

92153-0962

$2.71

92153B

BOLT,FLANGED,7X26

92153-0963

$2.71

92153C

BOLT,SOCKET,6X8

92153-1414

$1.53

92154

BOLT,FLANGED,6X22

92154-0504

$1.43

92154A

BOLT,FLANGED,6X8

92154-0726

$1.66

92154B

BOLT,FLANGED,6X14

92154-0813

$1.93

92161

DAMPER

92161-0267

$3.51

92171

CLAMP

92171-1053

$1.02

92173

CLAMP

92173-0059

$7.47

92192

TUBE,9X12X38

92192-0225

$3.49

290

SCREW-SET-SOCKET,6X6

290Q0606

$5.54

551

PIN-DOWEL,8X14

551A0814

$0.93

670

O RING

670D1505

$3.29

670A

O RING,8MM

670D1508

$3.29

670B

O RING,9MM

670D1509

$3.57

670C

O RING,10MM

670D1510

$3.57

670D

O RING,14MM

670D2014

$4.18
