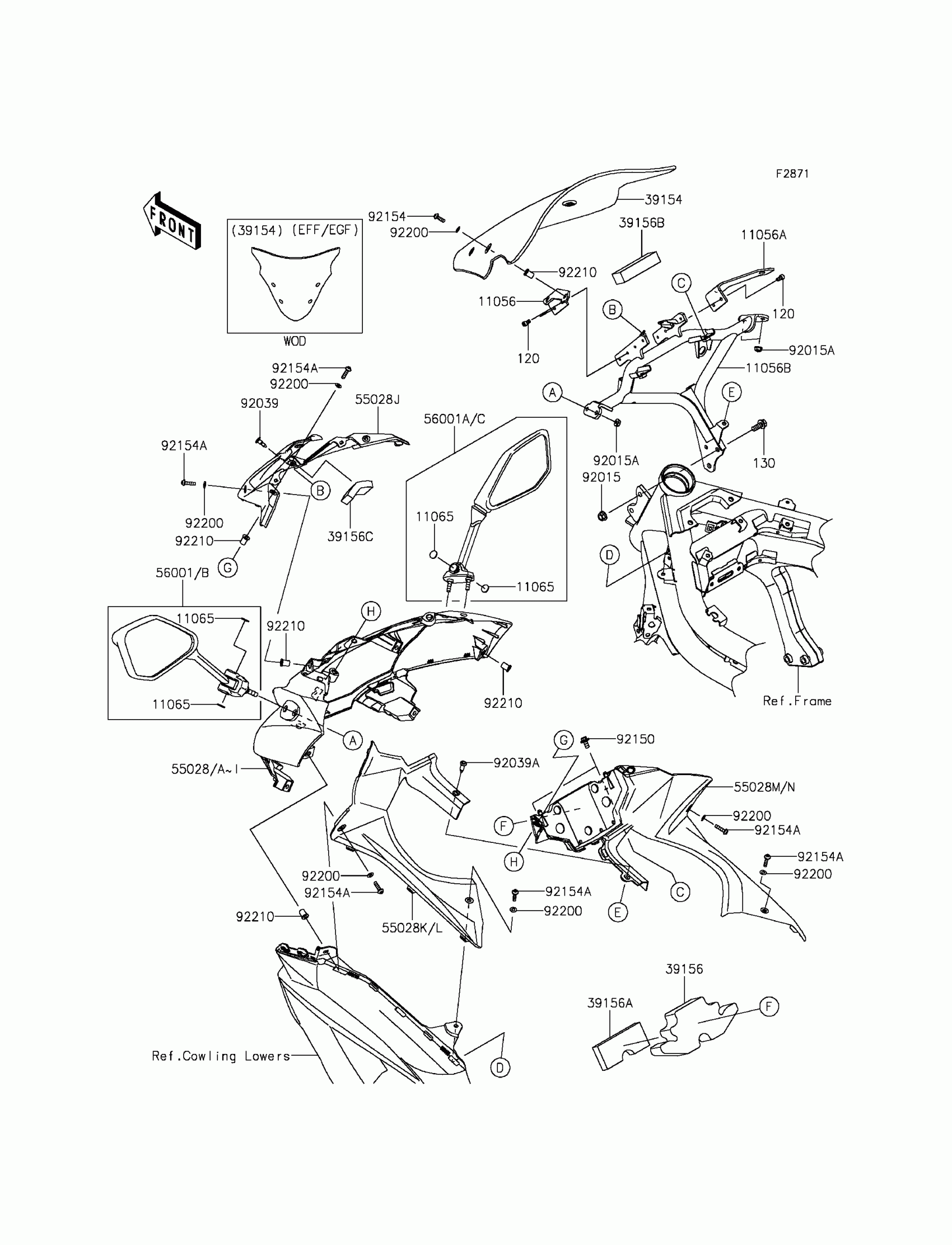

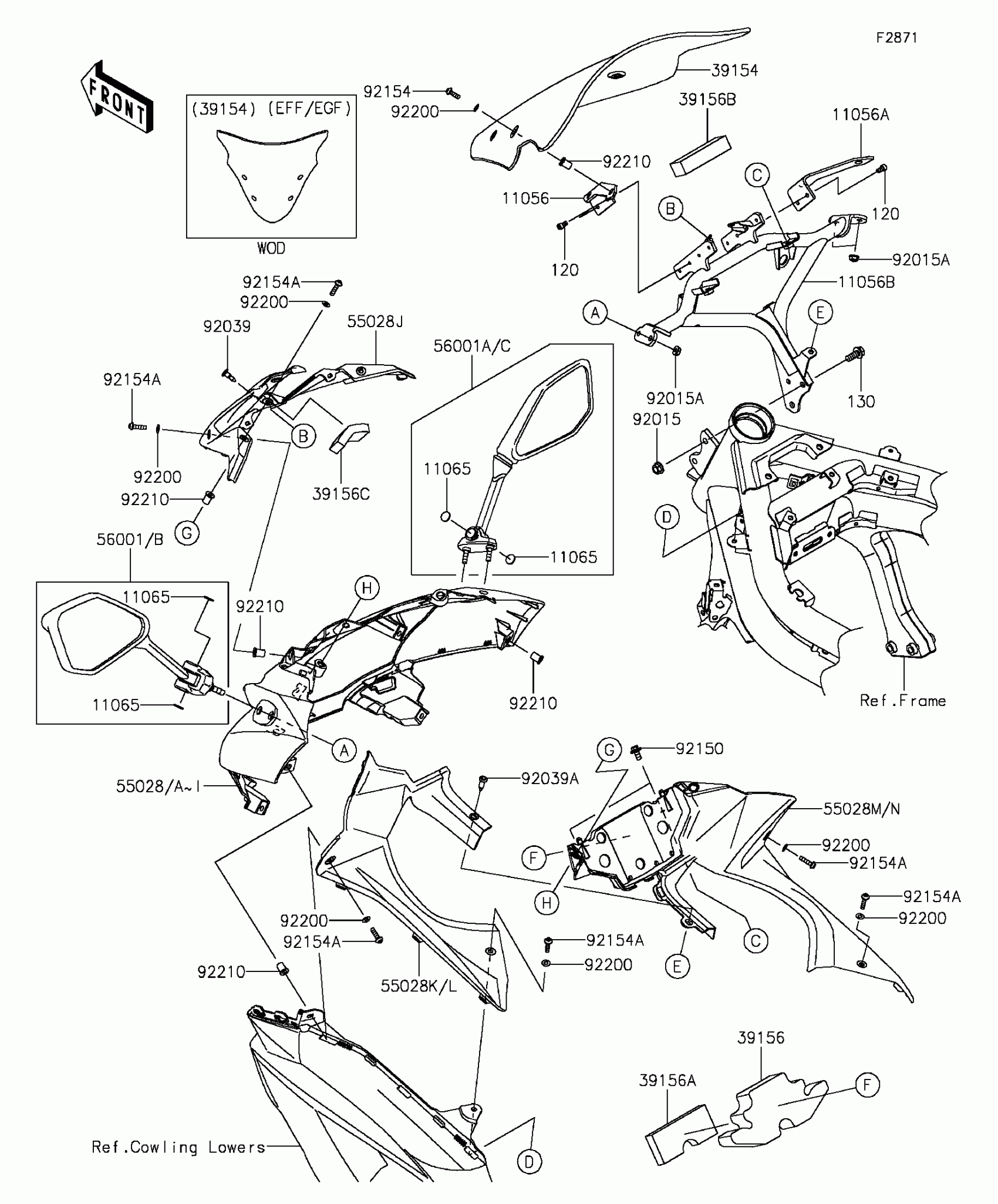

Kawasaki Ninja® 650 Cowling Diagram

#

Description
Price

11056

BRACKET,LH

11056-0992

$9.45

11056A

BRACKET,RH

11056-0993

$9.45

11056B

BRACKET,COWLING STAY

11056-2062

$185.48

11065

CAP

11065-0787

$1.95

39154

WINDSHIELD

39154-0307

$145.95

39156

PAD

39156-1823

$13.49

39156A

PAD,45X106X15

39156-1824

$11.39

39156B

PAD,25X90X20

39156-1825

$8.05

39156C

PAD,30X65X12

39156-1826

$8.05

55028D

COWLING,UPP,P.F.S.WHITE

55028-0366-40X

$340.51

55028F

COWLING,UPP,C.L.GREEN

55028-0366-51P

$340.51

55028G

COWLING,UPP,M.S.BLACK

55028-0366-660

$340.43

55028J

COWLING,UPP,CNT

55028-0367

$68.70

55028K

COWLING,INNER,LH

55028-0368

$48.97

55028M

COWLING,INNER,RH

55028-0470

$59.20

56001B

MIRROR-ASSY,LH

56001-0274

$91.09

56001C

MIRROR-ASSY,RH

56001-0275

$91.09

92015

NUT,FLANGED,8MM

92015-1014

$0.57

92015A

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92039

RIVET

92039-0068

$2.09

92039A

RIVET

92039-1283

$1.98

92150

BOLT,6X14

92150-1340

$3.86

92154

BOLT,SOCKET,5X16

92154-0209

$1.95

92154A

BOLT,SOCKET,5X20

92154-0829

$1.89

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

$1.36

92210

NUT,WELL,5MM

92210-0498

$5.58

120

BOLT-SOCKET,5X10

120CB0510

$1.23

130

BOLT-FLANGED,8X20

130BA0820

$3.04
