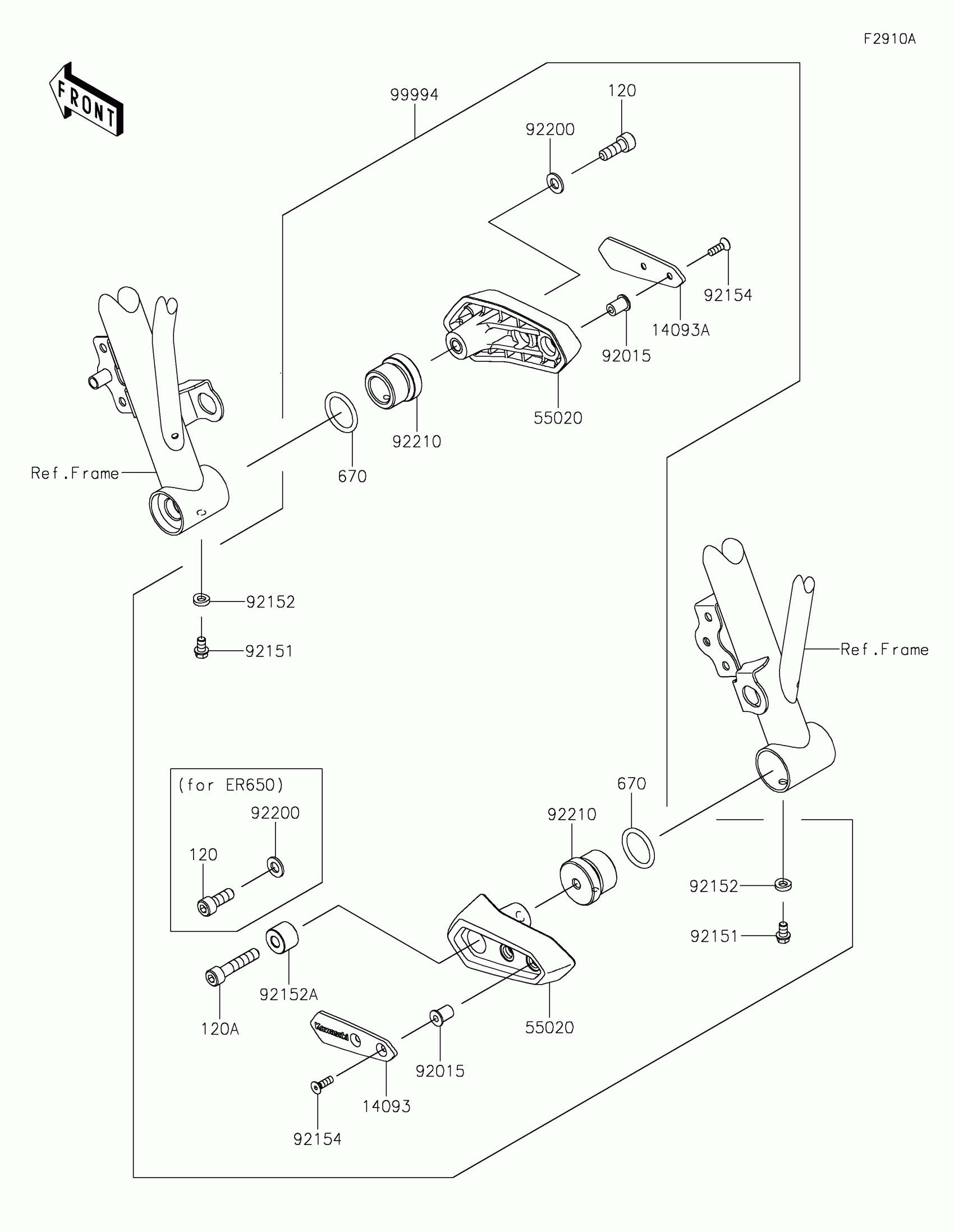

Kawasaki NINJA® 650 Accessory(Frame Slider) Diagram

Description

Price

120

BOLT-SOCKET,8X22

120CA0822

$4.31

120A

BOLT-SOCKET,8X40

120CA0840

$1.98

14093

COVER,SLIDER,LH

14093-0350

$91.14

14093A

COVER,SLIDER,RH

14093-0351

$91.14

55020

GUARD

55020-1997

$145.01

670

O RING,26MM

670B3026

$3.89

92015

NUT,WELL,5MM

92015-1757

$5.58

92151

BOLT,6X10

92151-1277

$1.39

92152

COLLAR,6.3X12

92152-2236

$2.44

92152A

COLLAR,8.3X20X15

92152-2237

$7.24

92154

BOLT,SOCKET,5X16

92154-1014

$0.73

92200

WASHER,8.4X16X1.6

92200-0807

$3.36

92210

NUT

92210-1505

$19.64

99994

KIT-ACCESSORY,FRAME SLIDER

99994-0797

$276.68
