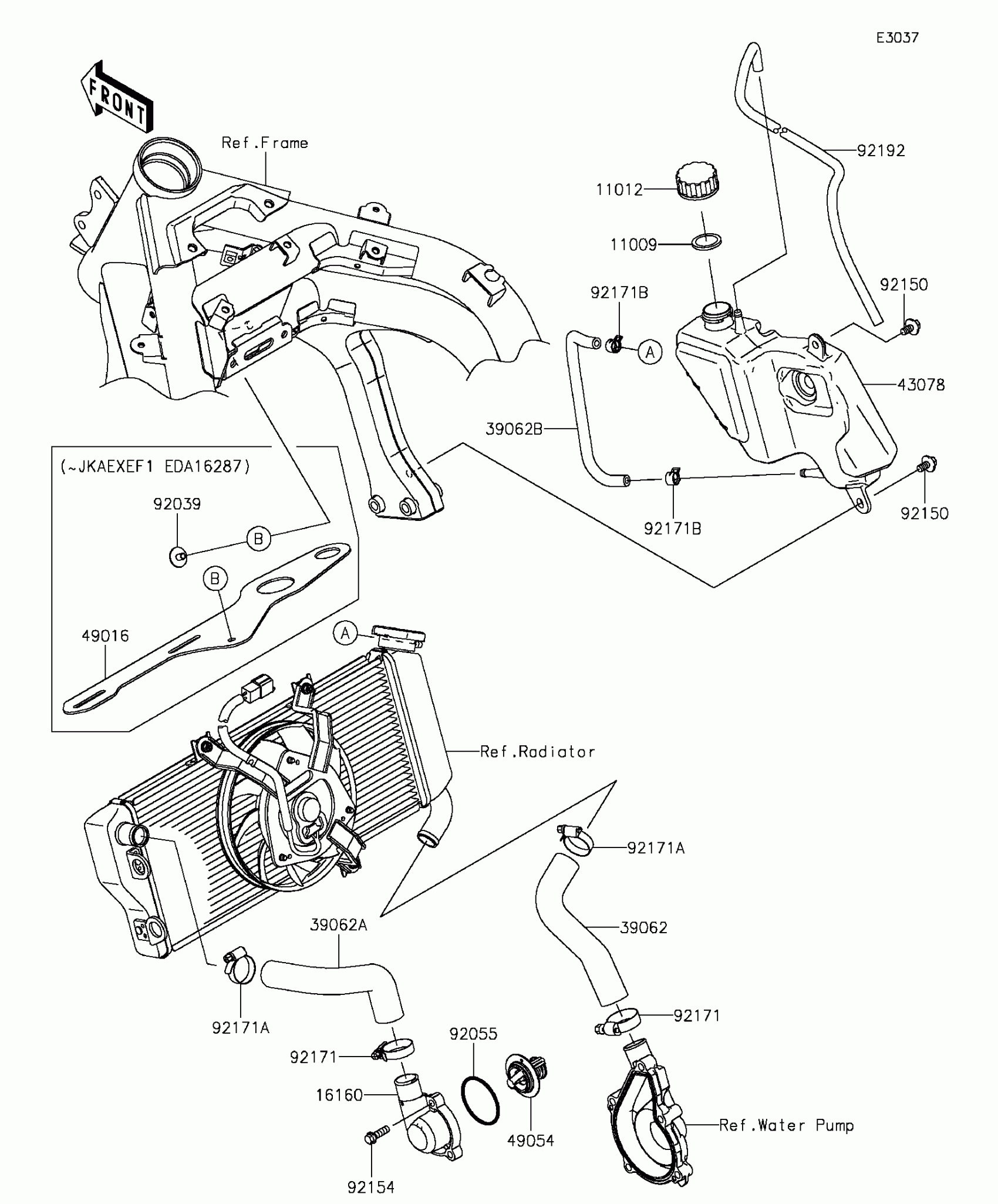

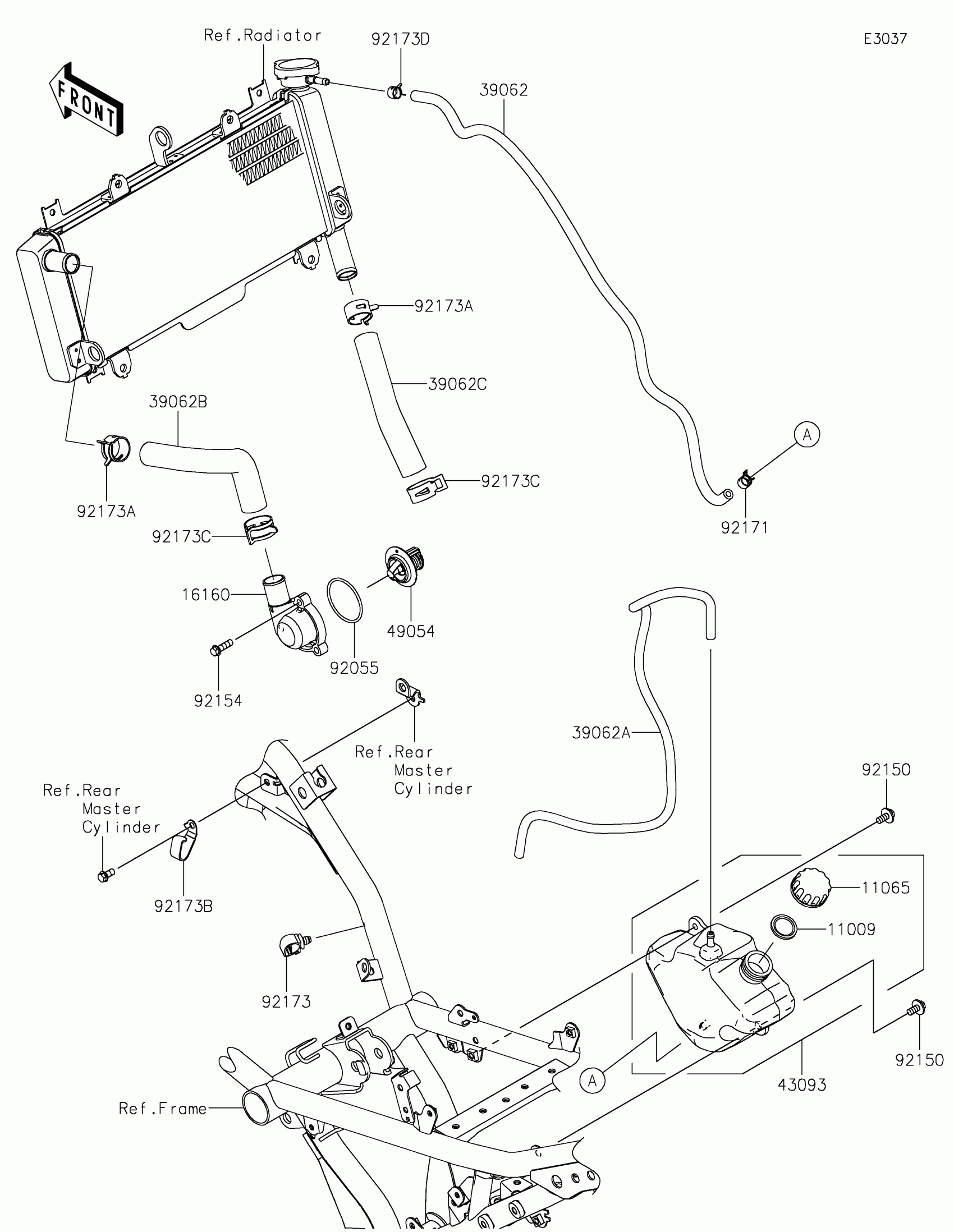

Find the part on the Water Pipe diagram for your 2016 Kawasaki Ninja® 650 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Ninja® 650 ABS Water Pipe Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$1.25

In stock

11012

CAP

11012-1084

1

$1.31

In stock

16160

BODY,THERMO

16160-0181

1
Out of stock

39062

1

$11.82

In stock

39062A

HOSE-COOLING,HEAD-RAD.

39062-0584

1
Out of stock

39062B

1

$10.02

In stock

43078

RESERVOIR

43078-0553

1

$37.15

In stock

49054

THERMOSTAT

49054-0001

1

$27.83

In stock

92055

RING-O,44.7X2.4

92055-0160

1

$1.80

In stock

92150

BOLT,6X14

92150-1340

1

$4.02

In stock

92154

BOLT,FLANGED,6X20

92154-1778

1

$1.88

In stock

92171

CLAMP

92171-0261

1

$13.29

In stock

92171A

CLAMP

92171-0337

1

$7.84

In stock

92171B

CLAMP,10.5X8X0.7

92171-1992

1

$5.42

In stock

92192

TUBE,BREATHER

92192-1006

1
Out of stock
