2016 Kawasaki Ninja® 650 ABS Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 2016 Kawasaki Ninja® 650 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

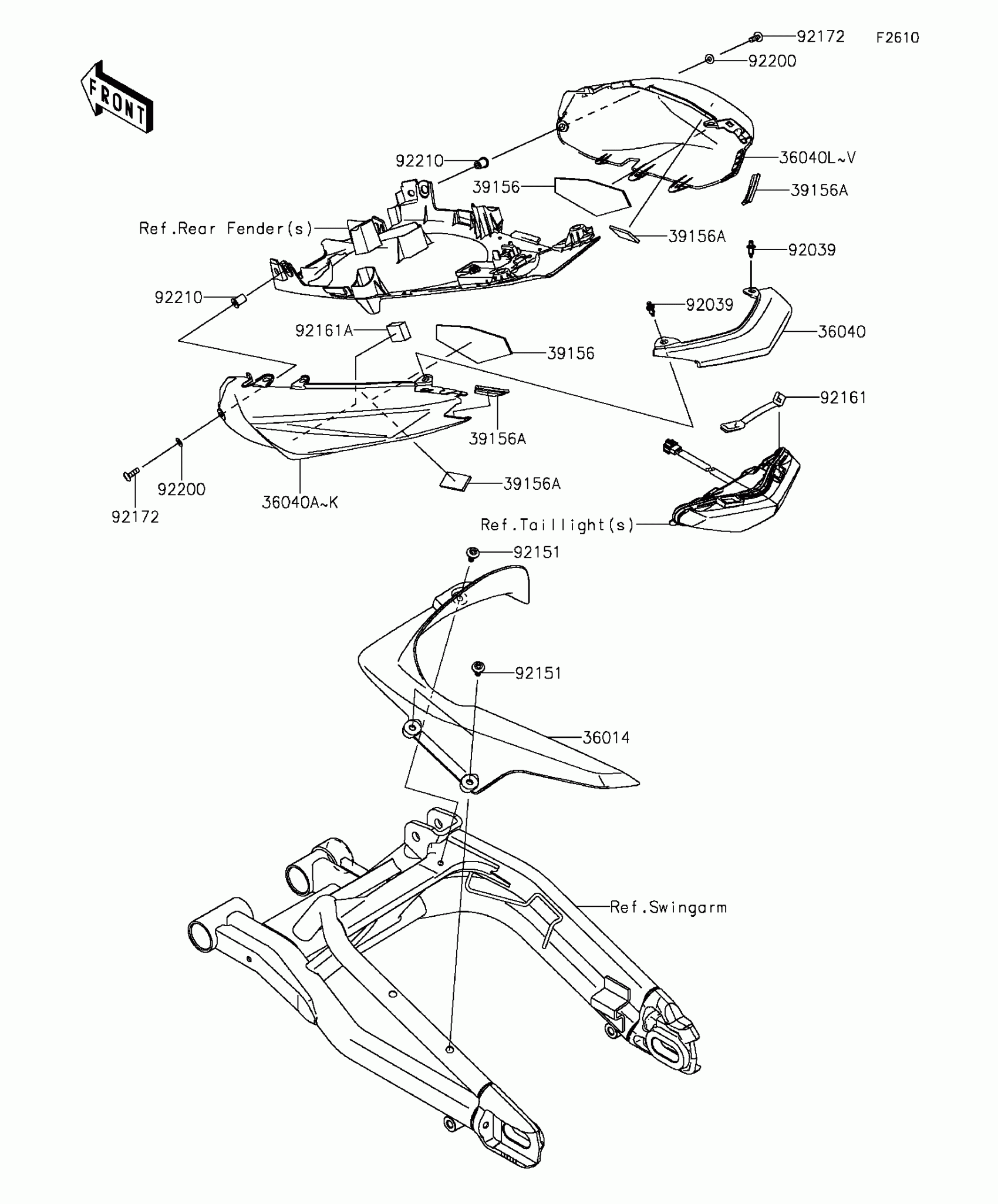

2016 Kawasaki Ninja® 650 ABS Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36014

CASE-CHAIN

36014-0552

1

$74.22

In stock

36040

COVER-TAIL,CNT

36040-0118

1

$33.38

In stock

36040G

COVER-TAIL,LH,M.C.GRAY

36040-0119-51A

1

$72.47

In stock

36040H

COVER-TAIL,LH,C.L.GREEN

36040-0119-51P

1

$72.47

In stock

36040K

COVER-TAIL,LH,C.P.RED

36040-0119-A5

1

$72.47

In stock

36040R

COVER-TAIL,RH,M.C.GRAY

36040-0120-51A

1

$72.47

In stock

36040S

COVER-TAIL,RH,C.L.GREEN

36040-0120-51P

1

$72.47

In stock

36040V

COVER-TAIL,RH,C.P.RED

36040-0120-A5

1

$72.47

In stock

39156

PAD

39156-0801

1

$3.19

In stock

39156A

PAD,20X40X3

39156-0831

1

$1.10

In stock

92039

RIVET

92039-0023

1
Out of stock

92151

BOLT,SOCKET,6X14

92151-1654

1
Out of stock

92161

DAMPER,TAIL LAMP UPP

92161-0625

1
Out of stock

92161A

DAMPER

92161-0718

1
Out of stock

92172

SCREW,5X16

92172-0479

1
Out of stock

92200

WASHER,NYLON,5.3X11.5X0.5

92200-1480

1
Out of stock

92210

NUT,WELL,5MM

92210-0498

1
Out of stock
