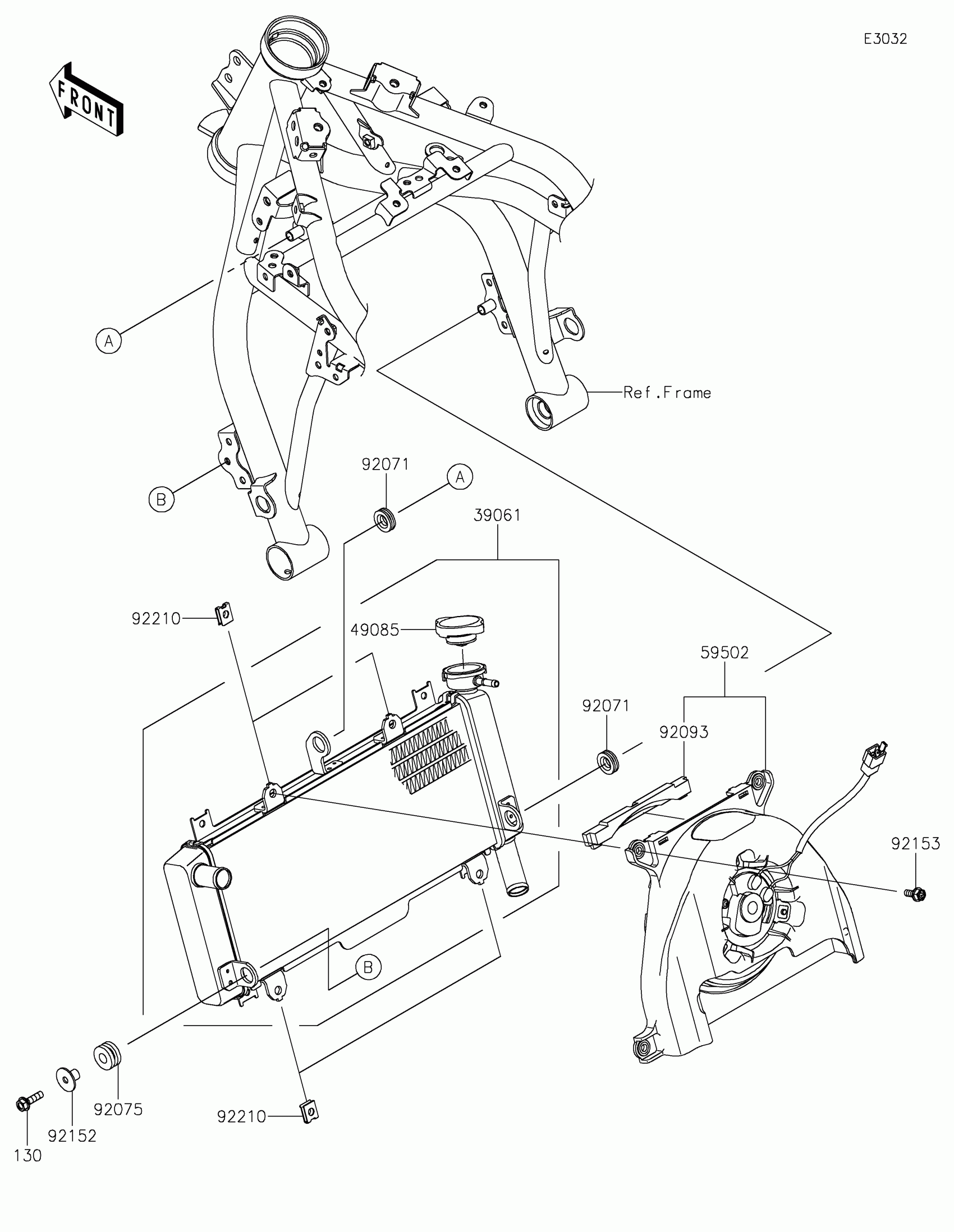

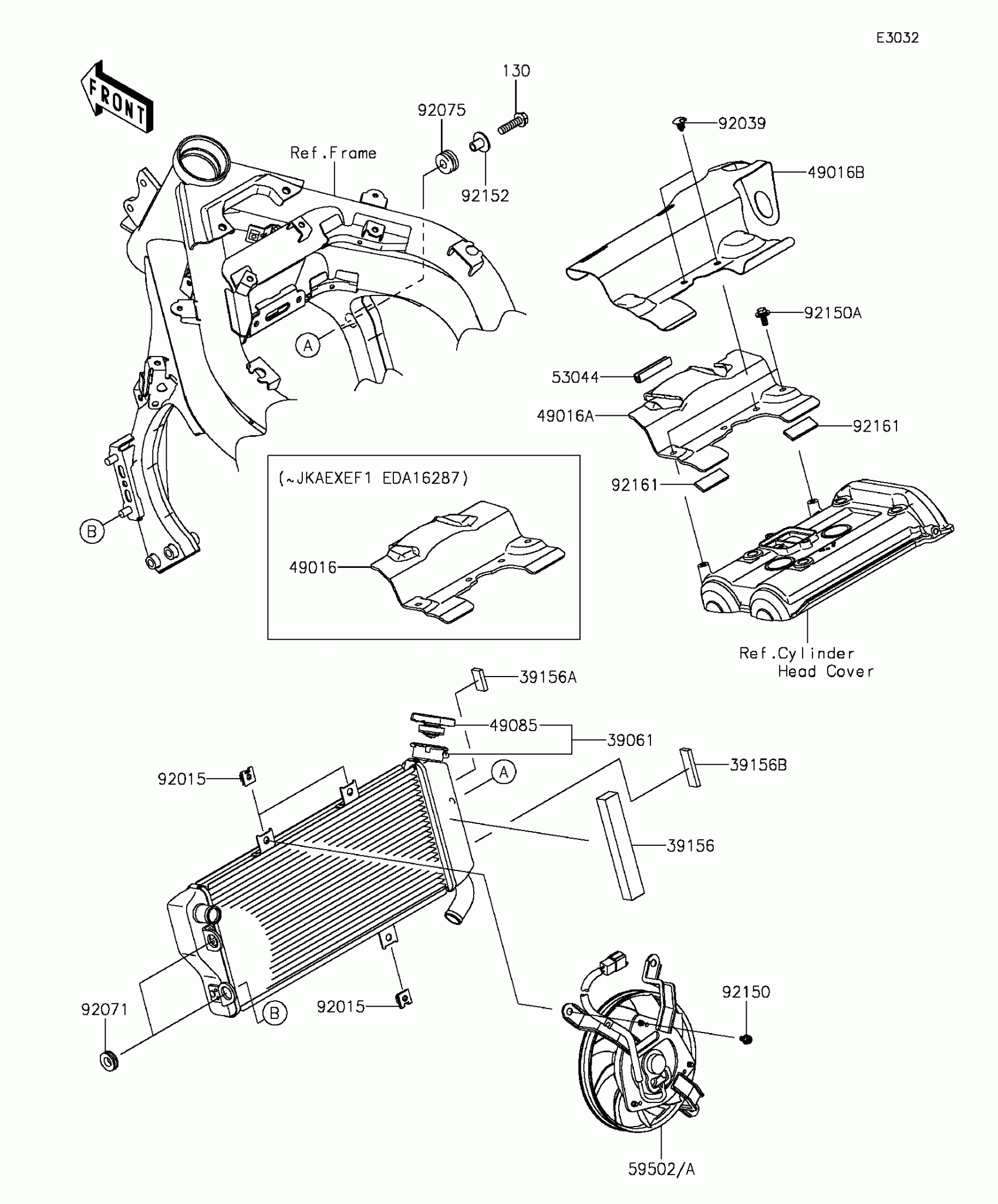

Kawasaki Ninja® 650 ABS Radiator Diagram

Description

Price

39061

RADIATOR-ASSY

39061-0559

$881.07

39156

PAD

39156-0813

$1.69

39156A

PAD

39156-0814

$0.85

39156B

PAD

39156-0815

$0.85

49016A

COVER-SEAL

49016-0618

$22.39

49016B

COVER-SEAL

49016-0624

$16.75

49085

CAP-ASSY-PRESSURE

49085-1078

$45.97

53044

TRIM,L=50

53044-1185

$4.66

59502

FAN-ASSY

59502-0569

$360.00

92015

NUT

92015-1487

$3.64

92039

RIVET

92039-0722

$1.24

92071

GROMMET

92071-1115

$4.14

92075

DAMPER,10X24X12

92075-1690

$3.81

92150

BOLT,6X12

92150-1186

$2.56

92150A

BOLT,FLANGED,6X14

92150-1689

$3.01

92152

COLLAR

92152-1603

$5.81

92161

DAMPER

92161-0301

$1.81

130

BOLT-FLANGED,6X22

130BA0622

$1.00
