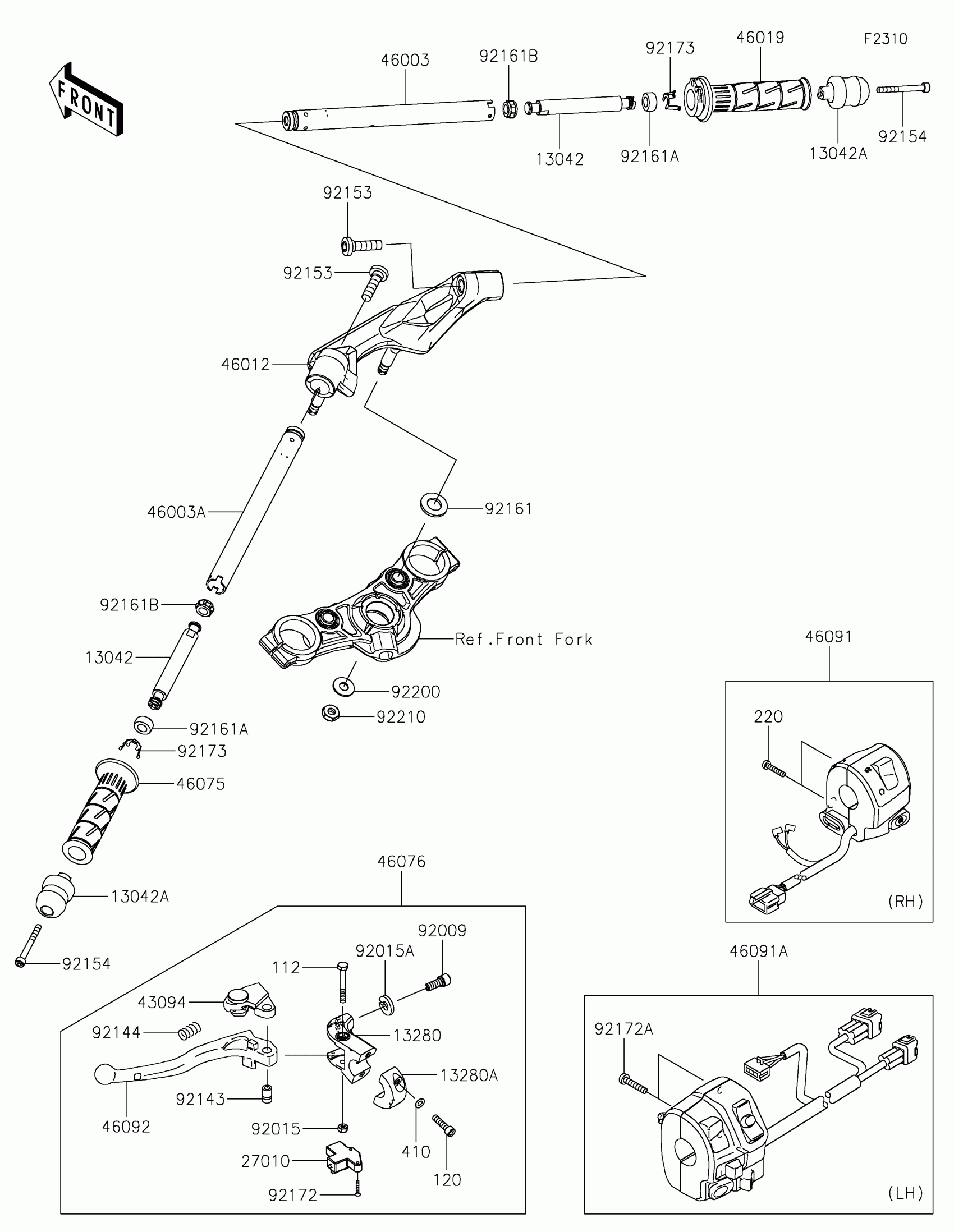

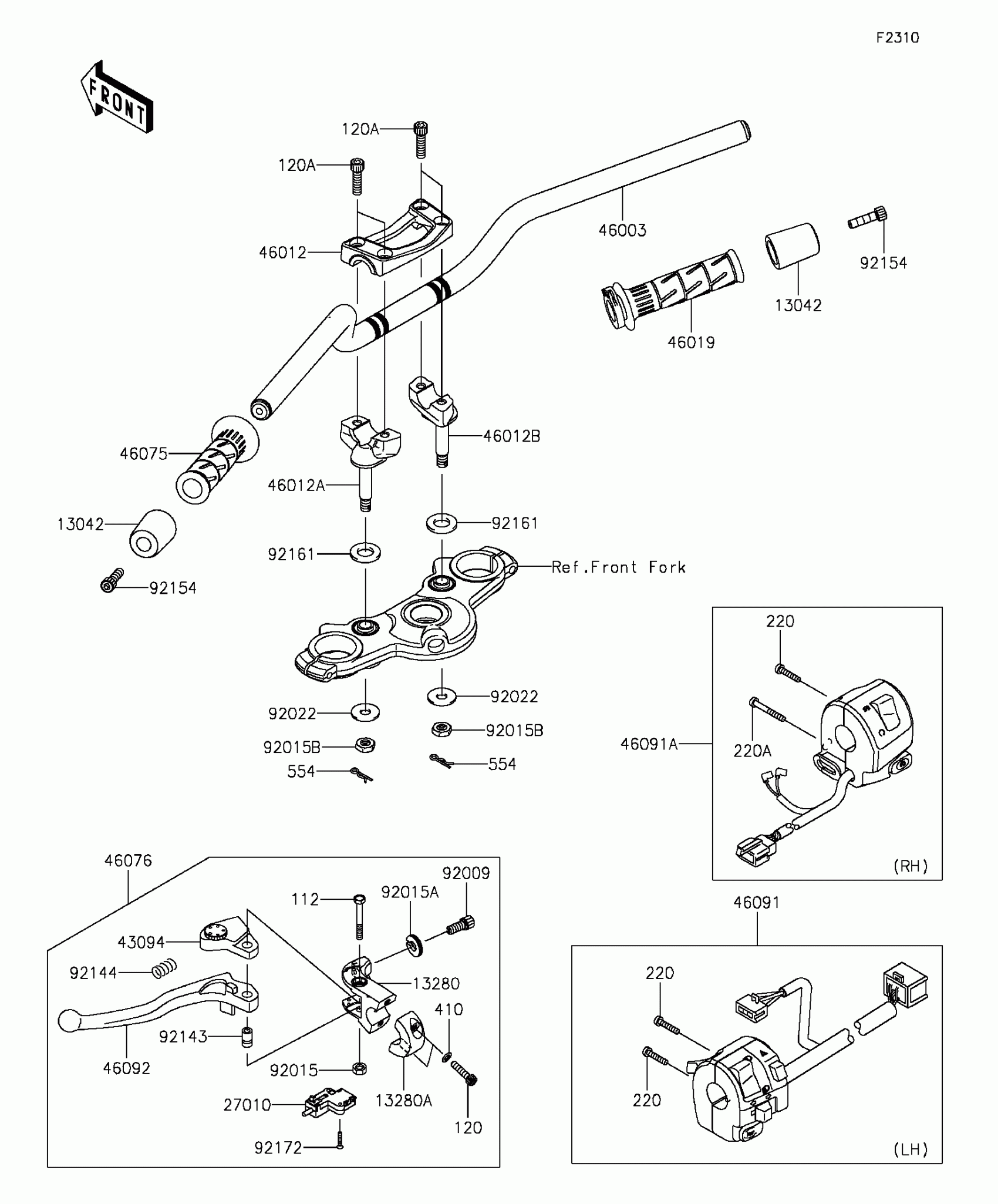

Kawasaki Ninja® 650 ABS Handlebar Diagram

#

Description
Price

13042

WEIGHT,HANDLE

13042-5002

$45.66

13280

HOLDER,CLUTCH LEVER

13280-0306

$47.37

13280A

HOLDER,CLUTCH LEVER

13280-0319

$37.15

27010

SWITCH,CLUTCH,BLACK

27010-1094

$25.31

43094

ADJUSTER,CLUTCH LEVER

43094-0556

$40.53

46003

HANDLE,F.M.GRAY

46003-0588-26M

$108.37

46012

HOLDER-HANDLE,UPP

46012-0059

$77.33

46012A

HOLDER-HANDLE,LWR,LH

46012-0060

$38.85

46012B

HOLDER-HANDLE,LWR,RH

46012-0061

$38.85

46019

GRIP-ASSY,THROTTLE

46019-0060

$29.02

46075

GRIP,HANDLE,LH

46075-0564

$16.11

46076

LEVER-ASSY-GRIP,LH

46076-0082

$118.74

46091

HOUSING-ASSY-CONTROL,LH

46091-0214

$163.25

46091A

HOUSING-ASSY-CONTROL,RH

46091-0246

$186.88

46092

LEVER-GRIP,CLUTCH

46092-0031

$20.78

92009

SCREW,CABLE ADJUST,8MM,BLACK

92009-1134

$11.50

92015

NUT,LOCK,6MM,BLACK

92015-1191

Unavailable

92015A

NUT,CABLE ADJUST LOCK,8MM,BLK

92015-1197

$7.54

92015B

NUT,LOCK,10MM

92015-1962

$4.59

92022

WASHER,10.2X28X2

92022-1088

$3.57

92143

COLLAR

92143-1379

$7.25

92144

SPRING

92144-1467

$4.88

92154

BOLT,SOCKET,8X30

92154-0440

$2.84

92161

DAMPER

92161-0037

$1.36

92172

SCREW,3X16

92172-0183

$1.57

112

BOLT-UPSET,6X45

112BB0645

$3.29

120

BOLT-SOCKET,6X25

120CB0625

$1.81

120A

BOLT-SOCKET,8X30

120CC0830

$2.82

220

SCREW-PAN-CROS,5X25

220AB0525

$2.66

220A

SCREW-PAN-CROS,5X40

220AB0540

$1.49

410

WASHER-PLAIN-SMALL,6MM

410AB0600

$0.68

554

PIN-SNAP

554DB0800

$1.22
