2016 Kawasaki Ninja® 650 ABS Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2016 Kawasaki Ninja® 650 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

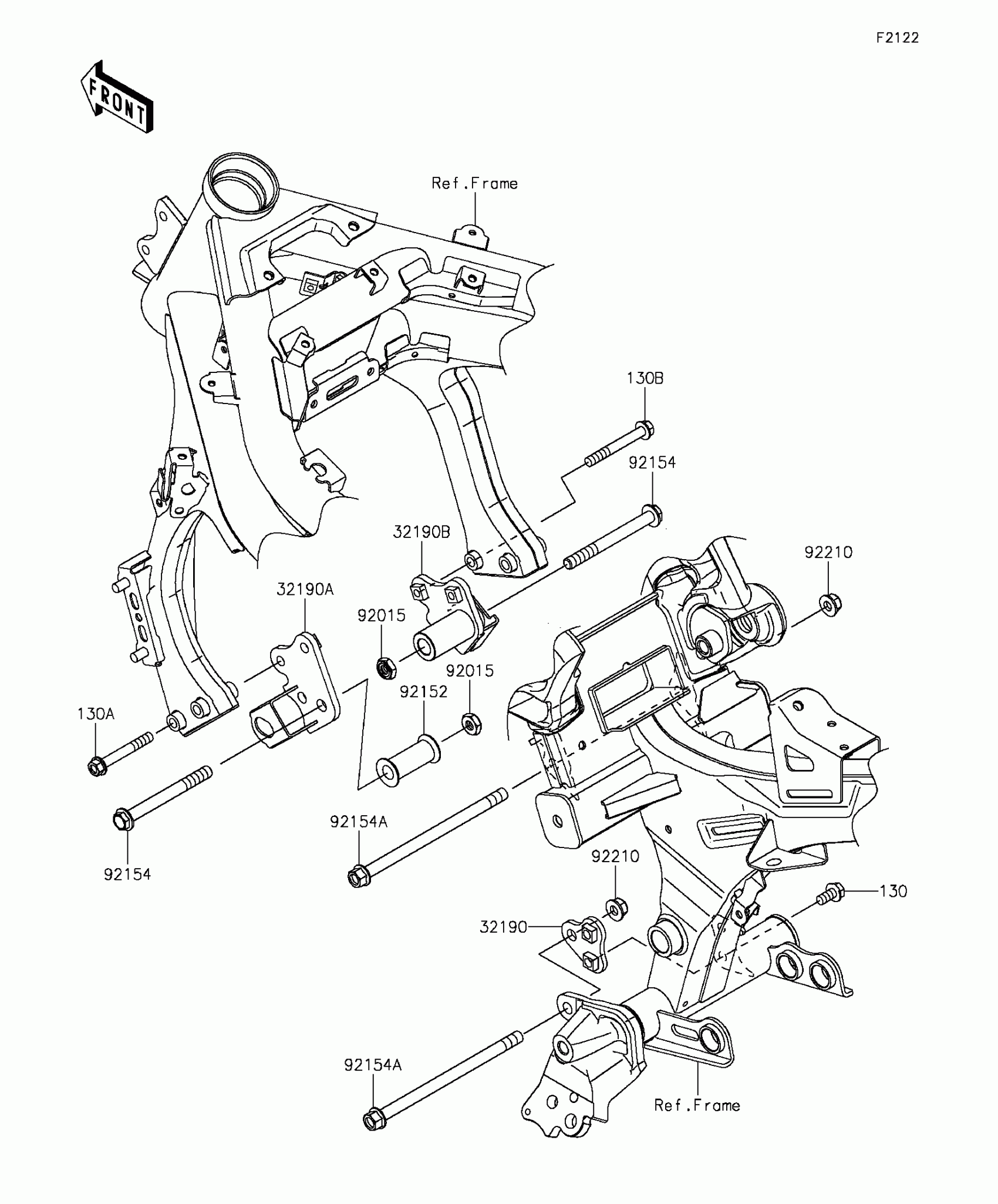

2016 Kawasaki Ninja® 650 ABS Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32190

1

$5.76

In stock

32190A

1

$20.58

In stock

32190B

1

$41.01

In stock

92015

NUT,LOCK,10MM,BLACK

92015-1188

1
Out of stock

92152

COLLAR,11X26X50.8

92152-0963

1

$14.14

In stock

92154

BOLT,FLANGED,10X110

92154-0716

1

$16.20

In stock

92154A

BOLT,FLANGED,10X170

92154-0840

1

$18.05

In stock

92210

NUT,LOCK,FLANGED,10MM

92210-1081

1
Out of stock

130

BOLT-FLANGED,8X16

130BA0816

1

$1.03

In stock

130A

BOLT-FLANGED,8X55

130BA0855

1

$1.90

In stock

130B

BOLT-FLANGED,8X65

130CA0865

1

$1.93

In stock
