2025 Kawasaki Ninja® 650 ABS Brake Piping Diagram

← All diagrams

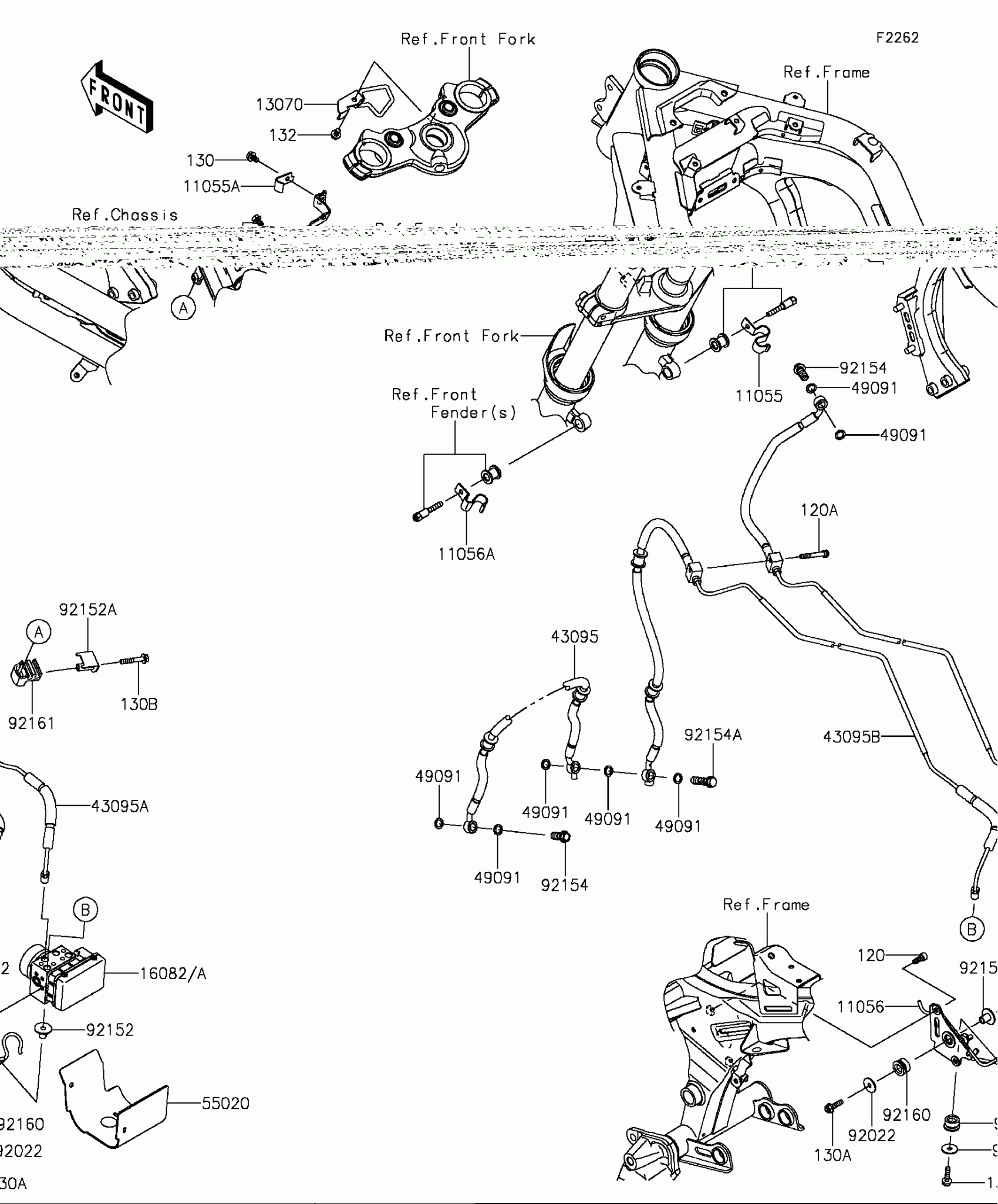

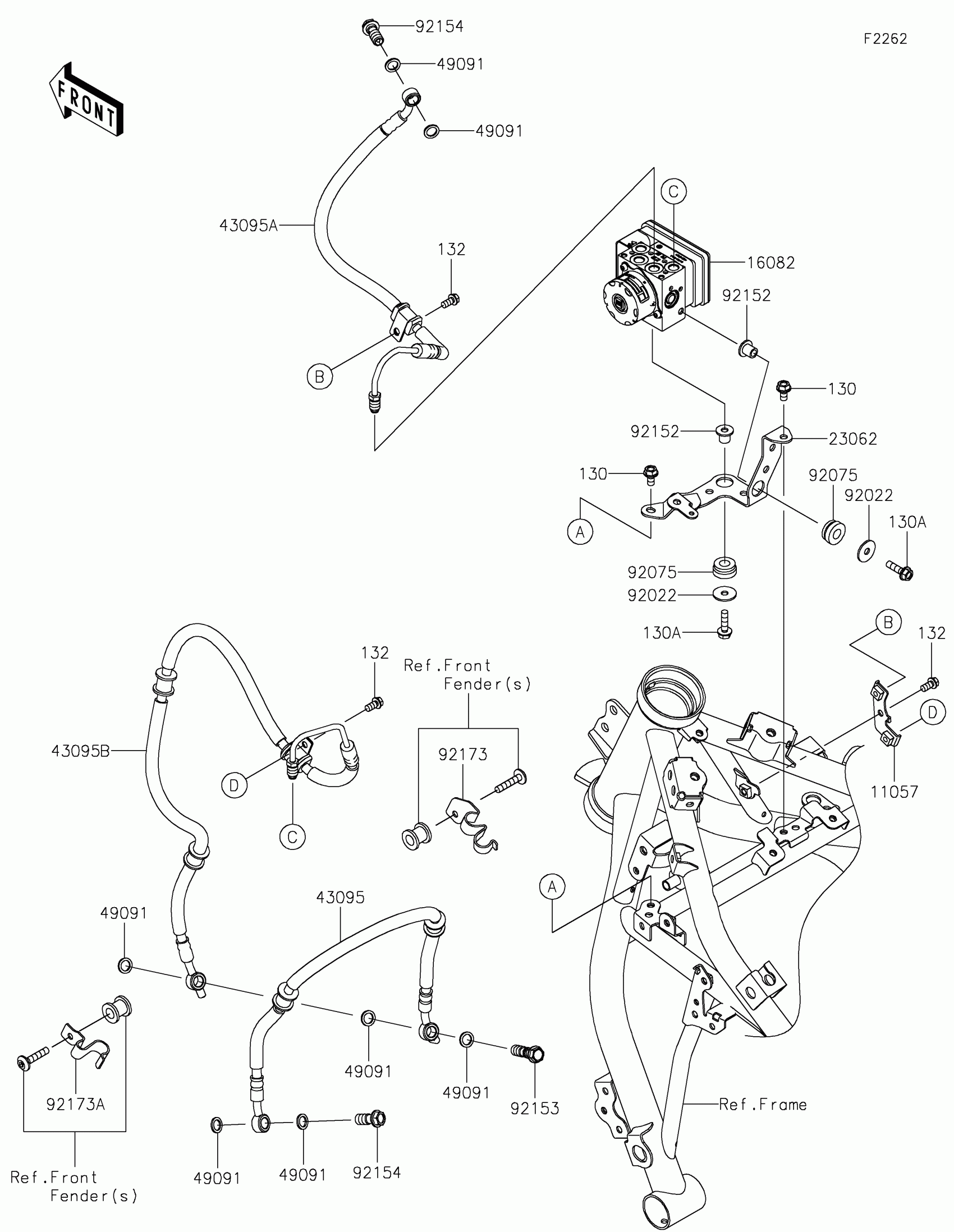

Find the part on the Brake Piping diagram for your 2025 Kawasaki Ninja® 650 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Ninja® 650 ABS Brake Piping Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,BRAKE HOSE

11057-0275

1
Out of stock

16082

PUMP-ASSY-OIL,ABS

16082-0885

1
Out of stock

23062

BRACKET-COMP,ABS UNIT

23062-1478

1
Out of stock

43095

HOSE-BRAKE,FR CAL-CAL

43095-0960

1
Out of stock

43095A

HOSE-BRAKE,FR M/CYL.-ABS UNIT

43095-1903

1
Out of stock

43095B

HOSE-BRAKE,ABS UNIT-FR CAL.

43095-1942

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92022

WASHER,6.5X22X1.6

92022-237

1
Out of stock

92075

DAMPER

92075-277

1
Out of stock

92152

COLLAR,6.5X16.5X11.9

92152-3778

1
Out of stock

92153

BOLT,OIL,L=37

92153-0628

1
Out of stock

92154

BOLT,OIL,L=23

92154-4239

1
Out of stock

92173

CLAMP,FR FENDER,RH

92173-1612

1
Out of stock

92173A

CLAMP,FR FENDER,LH

92173-2290

1
Out of stock

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

130A

BOLT-FLANGED,6X22

130BA0622

1

$1.17

In stock

132

1

$1.12

In stock
