2018 Kawasaki Ninja® 650 ABS Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2018 Kawasaki Ninja® 650 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

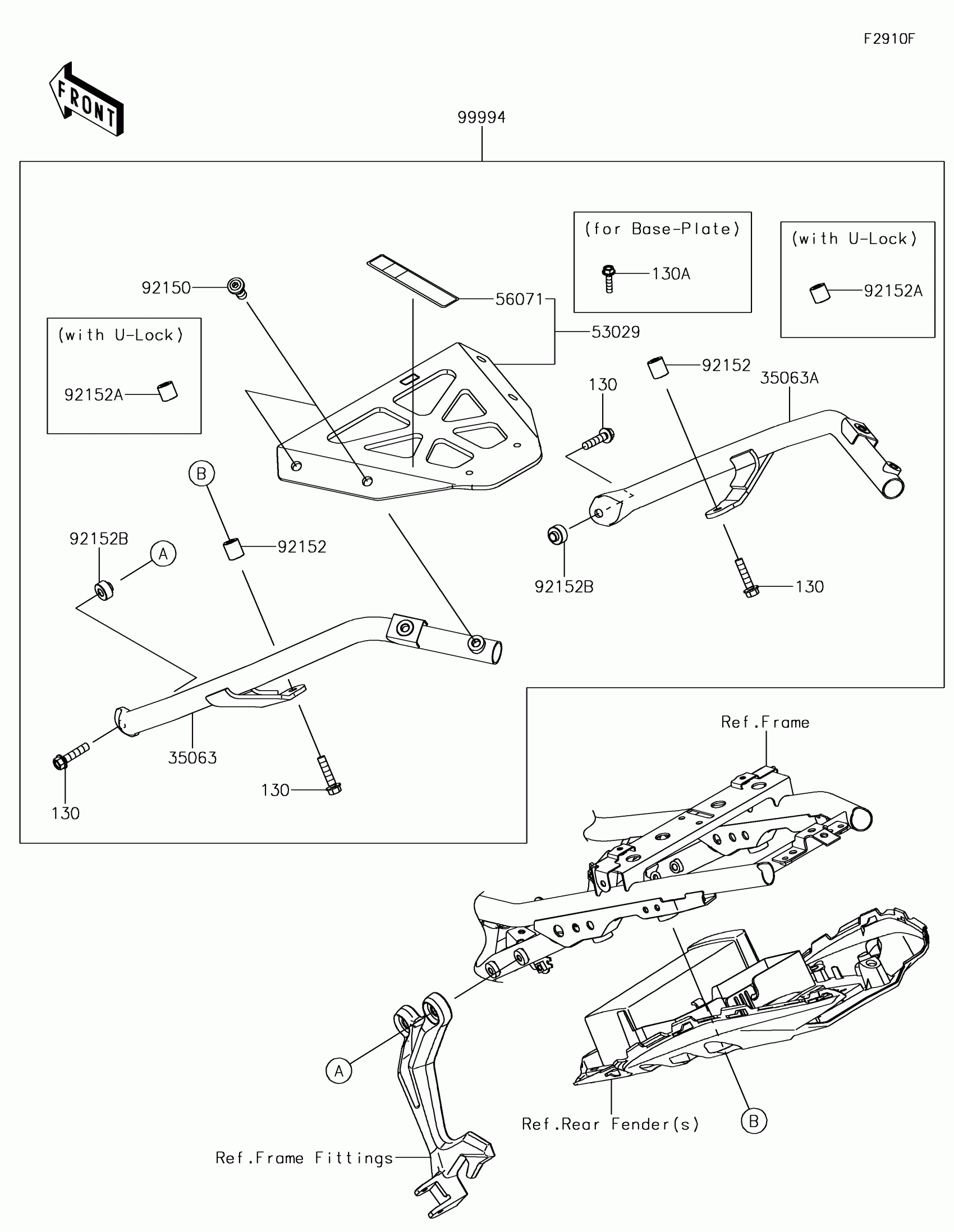

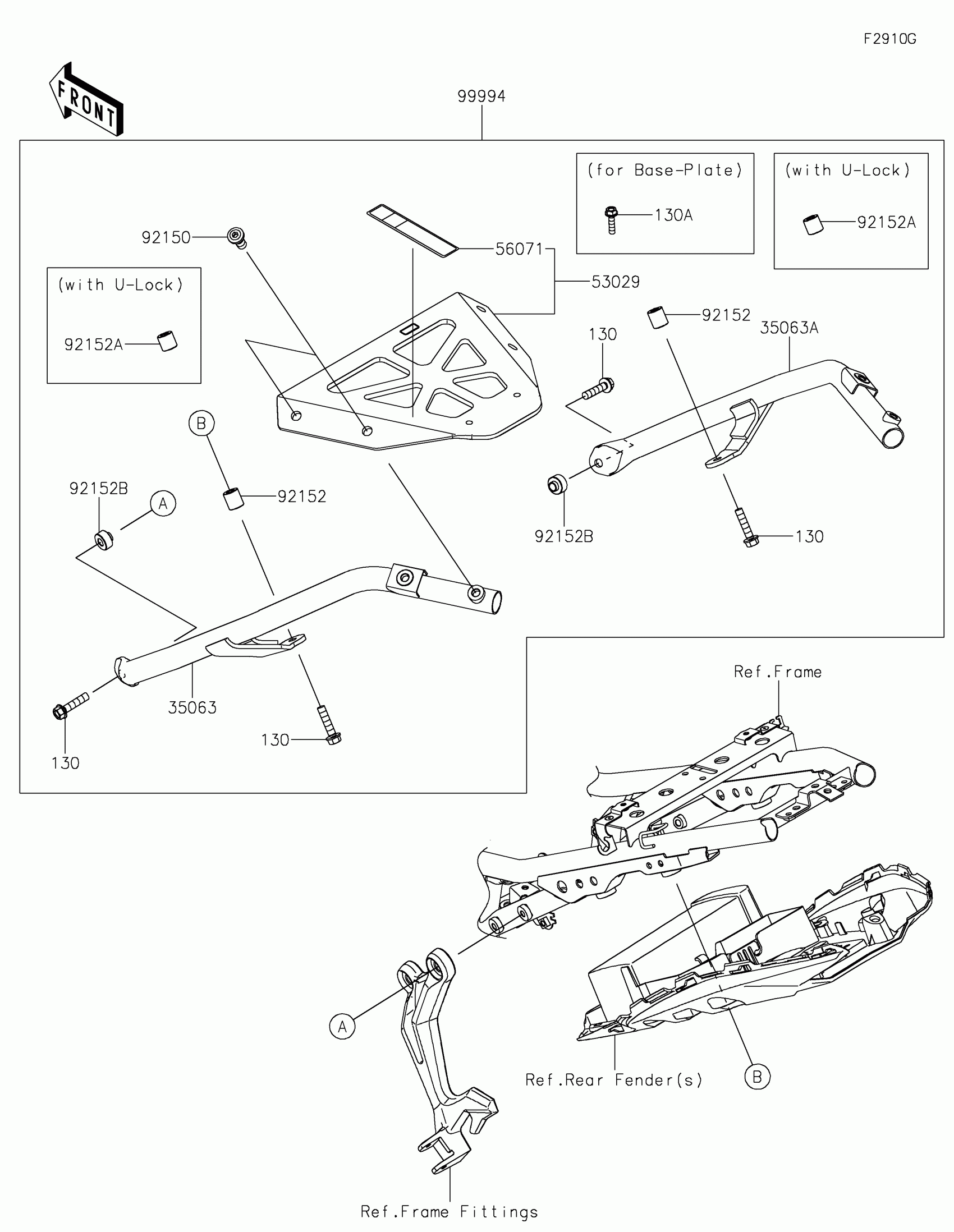

2018 Kawasaki Ninja® 650 ABS Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X35

130CA0835

1

$1.47

In stock

130A

BOLT-FLANGED,6X25

130CB0625

1

$3.69

In stock

35063

STAY,LH

35063-1353

1

$129.63

In stock

35063A

STAY,RH

35063-1354

1

$129.63

In stock

53029

CARRIER

53029-0353

1

$209.25

In stock

56071

1

$18.32

In stock

92150

BOLT,SOCKET,10X25

92150-1747

1

$6.24

In stock

92152

COLLAR,8.5X17X19

92152-2234

1
Out of stock

92152A

COLLAR,8.5X17X16.7

92152-2235

1
Out of stock

92152B

COLLAR,8.5X20X13.3

92152-2285

1
Out of stock

99994

1

$184.66

In stock
