2024 Kawasaki Ninja® 650 ABS Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2024 Kawasaki Ninja® 650 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

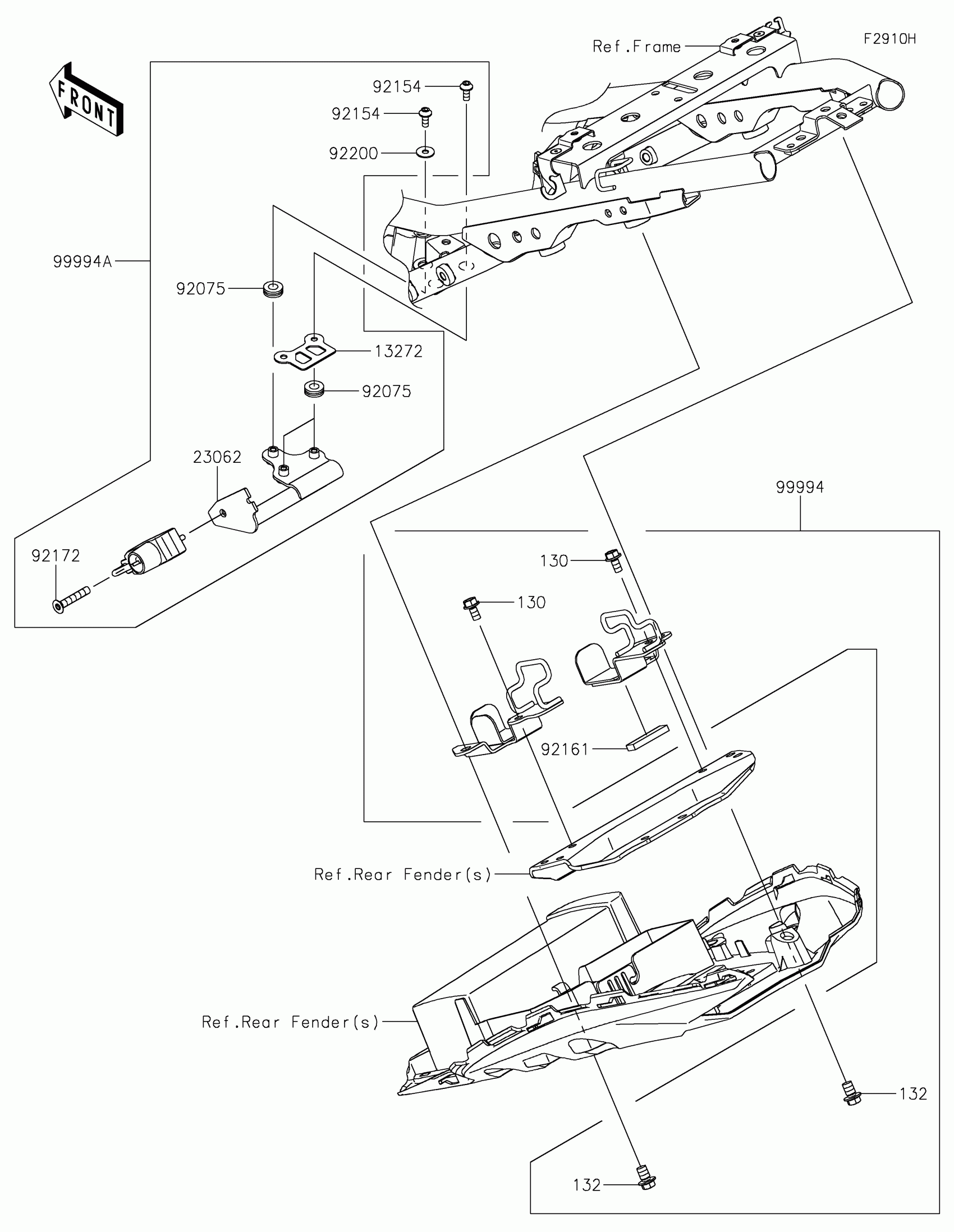

2024 Kawasaki Ninja® 650 ABS Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13272

PLATE

13272-2967

1
Out of stock

23062

BRACKET-COMP

23062-1288

1
Out of stock

92075

DAMPER

92075-161

1
Out of stock

92154

BOLT,SOCKET,5X12

92154-0917

1
Out of stock

92161

DAMPER,TANK COVER

92161-0804

1
Out of stock

92172

SCREW,HEXLOBE,6X35

92172-0835

1
Out of stock

92200

WASHER,5.2X15X1.0

92200-0456

1
Out of stock

99994

KIT-ACC,BRACKET FOR U-LOCK

99994-0985

1
Out of stock

99994A

HELMET LOCK

99994-1831

1
Out of stock

130

BOLT-FLANGED,6X12

130BA0612

1
Out of stock

132

BOLT-FLANGED-SMALL

132BA0812

1
Out of stock
